2012 Volkswagen Passat 2.5L Engine Control Module: Programming, Problems, and Replacement

Symptoms of a Failing ECM

A failing Engine Control Module in a 2012 VW Passat 2.5L can cause a wide range of confusing and intermittent issues. Because the ECM controls so many different functions, symptoms can often be mistaken for other problems. Diagnosis can be challenging and often comes down to a process of elimination after checking more common failure points like spark plugs, ignition coils, and sensors.

• Check Engine Light: An illuminated Check Engine Light is one of the most common signs. The ECM may store codes related to internal processor faults, memory errors, or communication failures. Sometimes, it may incorrectly blame other sensors.
• Engine Performance Issues: You might experience engine stalling, especially when cold, 🎬 Watch this diagnostic walkthrough of a 2.5L engine stalling when cold. rough idling, misfires, hesitation, or a sudden loss of power.
• No-Start Condition: The engine may crank but fail to start because the ECM is not commanding the fuel injectors or ignition coils to fire.
• Communication Problems: A diagnostic scan tool may be unable to communicate with the ECM, which is a strong indicator of an internal failure.
• Multiple Unrelated Fault Codes: A classic sign of a failing ECM is the sudden appearance of numerous fault codes for different sensors and systems all at once. This suggests the central processor is failing, 🎬 Watch a breakdown of common symptoms of a bad ECM. not that all those components failed simultaneously.
• Transmission Shifting Problems: The ECM communicates with the Transmission Control Module (TCM) to ensure smooth shifting. Faulty data from the ECM can lead to hard or delayed shifts.

Common Associated OBD-II Codes

While many codes can point to an ECM issue, certain codes are more directly related to internal module failures:

• P0600 - P0606: This range of codes, particularly P0606 (PCM Processor Fault), directly indicates an internal problem with the control module itself.
• 01314: A VW-specific code meaning "Engine Control Unit Defective".
• P0300-P0305: Misfire codes for one or more cylinders. While often caused by coils or plugs, a faulty ECM driver can also be the root cause.
• P0106: Manifold / Barometric Pressure Sensor Implausible Signal. In some cases, this can be caused by a faulty ECM or buggy firmware.

Known Issues, Recalls, and Service Bulletins

As of early 2026, there are no specific recalls issued by the National Highway Traffic Safety Administration (NHTSA) for the Engine Control Module on the 2012 Volkswagen Passat 2.5L. However, several recalls exist for other components on this vehicle, including airbags and lighting.

A Technical Service Bulletin (TSB) exists for the 2.5L engine (codes CBTA, CBUA) concerning camshaft position fault codes (P0011, P000A, P052A). This bulletin advises against immediately replacing components and instead outlines a diagnostic procedure using specialized VW tools (ODIS) to test the N205 camshaft adjustment valve and perform basic settings. In some cases, an ECM software update may be required to correct certain fault codes, a task that typically must be performed by a dealership or a specialist with a subscription-based online service.

Buying a Used 2012 Passat ECM: What You Must Know

Purchasing a used ECM is a cost-effective option, but it is not a simple plug-and-play part. The ECM is a critical component of the vehicle's anti-theft immobilizer system. Failure to follow the correct procedures will result in a no-start condition.

1. Part Number Verification is Crucial

You must match the OEM part number on your original ECM exactly. The primary Volkswagen part number for this application is 07K906055AN. The Bosch part number is 0261S06508. There may be other compatible part numbers or later revisions (e.g., 07K906055AL), so always verify compatibility with the seller. Using an incorrect part number can lead to system incompatibility even if programming is attempted.

2. The Immobilizer and Programming Requirement

A used ECM is "locked" to the VIN and immobilizer system of its original vehicle. When you install it in your Passat, the immobilizer system will not recognize it, and the car will not start. You have two primary options to make a used ECM work:

• ECM Cloning: This is the most common and recommended method. It involves sending your original (faulty) ECM and the replacement (used) ECM to a specialist service. They use specialized tools to read the immobilizer data, VIN, software, and coding from your original module and write it directly onto the replacement module. After this service, the replacement ECM becomes an exact electronic copy of your original, making it a true "plug-and-play" installation with no further programming needed.

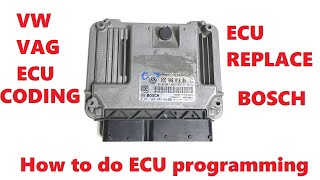

• Dealer/Specialist Adaptation: A VW dealership or a qualified independent shop with online access to VW's systems (like ODIS) can adapt a used module to the car. This process involves matching the used ECM to the car's existing immobilizer and keys. However, some sources suggest that certain Bosch ECUs from this era cannot be easily cloned or adapted and require online coding. 🎬 See how a professional performs online ECU coding and adaptation. This method can be more expensive and complex than cloning.

3. Can a Locksmith Program It?

Some automotive locksmiths have the advanced tools needed to perform ECM programming, cloning, or immobilizer adaptation. However, not all do. Standard locksmith tools for key programming may not be sufficient to handle the ECM itself. It is essential to confirm with the locksmith that they have specific experience with VW immobilizer systems and ECM replacement.

Cost Comparison

Prices can vary based on location, supplier, and the specific service required. The following is an estimated breakdown of costs:
