2013-2016 Volvo 2.5L T5 ECM Failure: Programming, Problems, and Replacement

Symptoms of a Failing 2.5L T5 Engine Control Module

A failing ECM can cause a wide range of problems, from subtle performance issues to a car that won't start at all. Because the ECM controls so many different systems, symptoms can sometimes be confusing and overlap with other component failures.

• Check Engine Light: This is often the first and most obvious sign. The ECM will store Diagnostic Trouble Codes (DTCs) that can be read with an OBD-II scanner to help pinpoint the issue. Common codes associated with internal ECM faults include P0607 (Control Module Performance).
• Engine Performance Problems: You may experience rough idling, engine misfires, hesitation during acceleration, a sudden loss of power, or stalling. These issues occur because the ECM can no longer correctly manage the air-fuel mixture or ignition timing.
• No-Start or Hard Starting: The vehicle may crank but refuse to start, or it may stall immediately after starting. This can happen if the ECM is not properly commanding the fuel pump or ignition coils.
• Poor Fuel Economy: A sudden and unexplained drop in gas mileage can be a sign that the ECM is failing to regulate the engine's fuel delivery efficiently.
• Transmission Shifting Issues: On these automatic Volvos, the ECM communicates directly with the Transmission Control Module (TCM). A faulty ECM can send incorrect data, leading to harsh shifting, delayed gear changes, or the transmission getting stuck in one gear.
• Erratic Behavior of Other Systems: Since the ECM is a central communication hub, its failure can cause other warning lights like ABS or traction control to illuminate unexpectedly.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While this specific ECM is not subject to many widespread, documented failure patterns, there are some related issues and common causes of failure to be aware of.

Common Failure Cause: Water Intrusion

Like many electronic modules, the ECM is vulnerable to water damage. On some Volvo models, the ECM is located in the engine bay, often in a plastic housing near the cowl (the area at the base of the windshield). If cowl drains become clogged with leaves and debris, water can overflow and find its way into the ECM's housing, submerging the module. This can cause corrosion on the circuit board and lead to a host of electrical problems or complete failure. Always inspect a used ECM for any signs of corrosion or water marks on the casing or connectors.

Relevant Recalls and TSBs

• NHTSA Recall 15V-539 (Starter Motor Fuse): Affects some 2016 S60, V60, XC60, and XC70 models. In vehicles with the automatic engine stop/start feature, the starter motor fuse could blow, preventing the engine from restarting. The remedy was a software update. While not a direct ECM failure, it involves the engine's control software.
• NHTSA TSB TJ-34588 (Oil Consumption): Pertains to the 2.5L (B5254T12) engine in 2013-2016 models. Some engines experienced high oil consumption, which could trigger the low oil pressure light. The fix involved replacing the piston rings. This is a mechanical issue, but the symptoms (warning lights) are processed by the ECM.
• NHTSA Recall 13V-592 (Low Oil Pressure Warning): Affected 2011-2012 S60s, just prior to this guide's year range, but is relevant. A software issue prevented the driver from being warned of a low oil pressure situation. The fix was an ECM software update, highlighting how critical software is to the vehicle's function.

Buying a Used Engine Control Module (ECM)

Purchasing a used OEM ECM is a cost-effective option, but it comes with critical considerations, especially for these Volvo models. Due to the complex anti-theft and software systems, you cannot simply swap in a used module and expect it to work.

The #1 Rule: Programming is REQUIRED

A used ECM will not work unless it is properly programmed to your vehicle. These modules are tied to the original vehicle's VIN and its specific set of electronic modules, including the Central Electronic Module (CEM) and the immobilizer (anti-theft system). Plugging in a used ECM without programming will result in a no-start condition and multiple error messages.

There are two primary ways to make a used ECM work:

1. Cloning Service: This is the most common and recommended method for used modules. You must send your original (faulty) ECM and the replacement (used) ECM to a specialized service. They will read the critical immobilizer data, VIN, software, and coding from your original module and write it directly onto the replacement unit. When you receive the cloned module back, it is truly "plug-and-play" and will start the car with your existing keys. This avoids a trip to the dealer.
2. Dealer Programming (New Modules Only): A Volvo dealership can program a brand new ECM to your car using their proprietary VIDA (Vehicle Information and Diagnostics for Aftersales) software. However, dealers are generally unable or unwilling to program a used ECM. They will insist on selling you a new part. An attempt to program a used module with VIDA may fail or even "brick" the unit, rendering it useless.

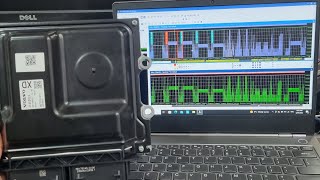

🎬 See how a bricked ECU can be recovered after programming

Verifying Compatibility

When buying a used ECM, you must match the OEM part number exactly. The primary part numbers for this application are 31312651 and 36000670. You may also see variations like 31312651AB. Always check the sticker on your original ECM to confirm the part number before purchasing a replacement.

Cost of Replacement

The cost to replace the ECM can vary significantly based on the path you choose. Programming and labor are major factors.
