2005-2007 Land Cruiser & LX470 Fan Blade: Wobbles, Cracks, and Radiator Damage

Symptoms of a Failing Fan Blade

A failing engine cooling fan blade can cause several distinct symptoms. Because a catastrophic failure can damage other expensive components, it's important to address these signs immediately.

1. Engine Overheating at Low Speeds or Idle

This is the most common symptom of any cooling fan issue. When you are driving at highway speeds, enough air is forced through the radiator to keep the engine cool. However, in stop-and-go traffic or when idling, the vehicle relies almost entirely on the fan blade to pull air through the radiator. If your temperature gauge starts to climb in traffic but returns to normal on the open road, a problem with the fan system is a likely cause.

2. Unusual Noises from the Engine Bay

A damaged fan blade often produces noticeable sounds. These can include:

• Clicking or Rattling: This can happen if a blade is cracked and making contact with the fan shroud (the plastic housing around the fan) or if debris is caught in the fan's path.
• Loud Roaring: While often a symptom of a seized fan clutch, a loud, persistent roaring noise that increases with engine RPM can also be related to the fan assembly.
• Grinding or Whirring: These sounds often point to a failing bearing in the fan bracket, which can cause the fan blade to wobble and eventually fail.

3. Visible Damage

A visual inspection can often confirm a bad fan blade. Pop the hood and, with the engine OFF, carefully inspect the fan. Look for cracks, especially near the center hub where the blades attach. Also check for broken or missing pieces on any of the blades. Any visible damage means the blade must be replaced immediately.

Known Issues and Related Part Failures

While the fan blade itself can fail from age and stress, its failure is often caused by a problem with a related part. For the 2005-2007 Land Cruiser and LX470, the two most important parts to inspect are the fan clutch and the fan mounting bracket.

Fan Bracket Bearing Failure

The fan blade and clutch assembly are mounted to the engine via a fan bracket that contains a bearing. If this bearing fails, the entire fan assembly can wobble. This wobble puts immense stress on the plastic fan blade, leading to cracks and eventual failure. In severe cases, a seized bearing can cause the entire fan assembly to break off, causing catastrophic damage to the radiator and other components. If you notice any wobble when checking the fan (with the engine off), the fan bracket bearing is likely bad and needs immediate attention.

Fan Clutch Failure

The fan clutch is a fluid-filled coupling that controls the fan's speed. It's designed to let the fan spin slower when the engine is cool (saving power) and engage fully to spin the fan faster when the engine is hot. A failing clutch can get stuck in the engaged position, causing a loud roar and unnecessary drag on the engine. It can also fail to engage, which prevents the fan from pulling enough air and leads to overheating. While a bad clutch doesn't always damage the blade, it's a common point of failure in the cooling fan system and should be inspected.

Buying a Used Engine Cooling Fan Blade

A used OEM fan blade can be a reliable and cost-effective replacement. However, a thorough inspection is critical before buying.

What to Inspect

• Check for Hairline Cracks: This is the most important check. Carefully inspect the area around the center mounting holes and the base of each individual blade. Bend each blade slightly to reveal any hidden stress cracks. A blade with even a tiny crack is unsafe and should be rejected.
• Look for Warping: Lay the fan blade on a flat surface to ensure it's not warped. A warped blade will be out of balance and can cause vibrations that damage the water pump or fan bracket bearing over time.
• Inspect for Nicks and Gouges: Small nicks from road debris are usually fine, but reject any blade with large chunks missing or deep gouges that could compromise its structural integrity.
• Verify Part Number: Ensure the part number matches what's required for your vehicle, especially if you own a 2005 model.

Why Used OEM is Often Better Than New Aftermarket

Original Equipment Manufacturer (OEM) fan blades are designed by Toyota for a perfect fit and are made from high-quality, durable plastics. They are also precisely balanced to prevent vibration. Cheaper aftermarket fan blades may not have the same quality control, potentially leading to premature cracking or balance issues that can cause other, more expensive parts to fail.

Compatibility: The 2005 Model Year Split

There was a parts change during the 2005 model year. It is critical to verify your vehicle's production date if you have a 2005 Land Cruiser or LX470.

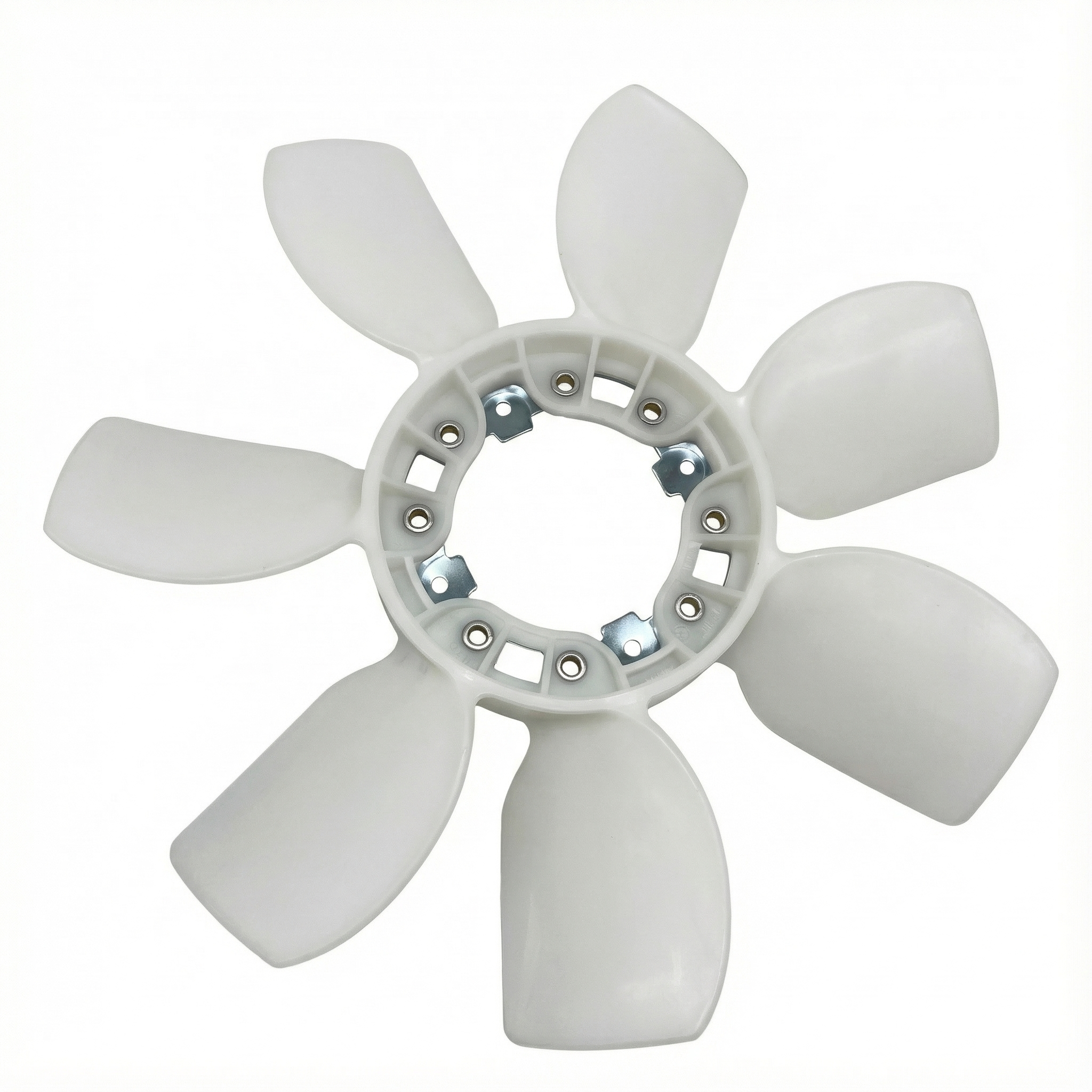

• Vehicles built up to April 2005: Typically use part number 16361-50040.

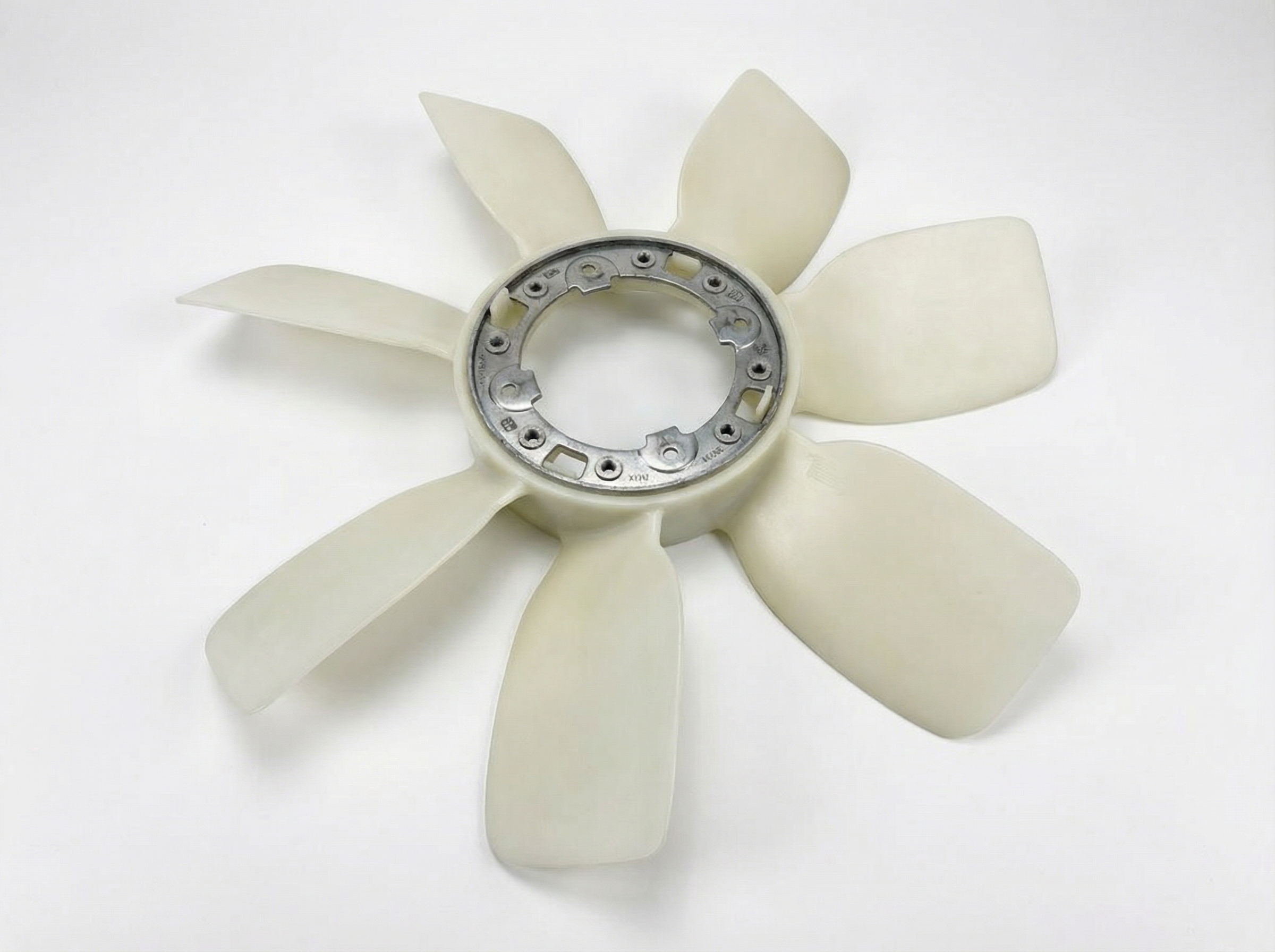

• Vehicles built from May 2005 onward: Use part number 16361-50170.

Replacement Overview and Difficulty

Replacing the fan blade is a relatively straightforward job for a DIY mechanic with basic tools. The main challenge is accessing the fan itself.

1. Disconnect the battery.
2. Remove the engine covers and air intake assembly.
3. Remove the fan shroud. This is a plastic housing surrounding the fan. It's typically held on by a few bolts or clips at the top. You may need to remove the upper radiator hose (be prepared to catch some coolant) and the coolant overflow reservoir to get enough clearance to lift the shroud out.
4. Unbolt the fan blade. The fan blade is held to the fan clutch by four nuts. You will need to hold the pulley still while you loosen the nuts.
5. Installation is the reverse of removal.

On a scale of 1 to 5, this job is approximately a 2/5 in difficulty.
