Fixing the Jet Engine Roar: A Guide to the 2002-2009 GM 4.2L Engine Cooling Fan Clutch

Symptoms of a Failing Fan Clutch

A failing fan clutch on these GM SUVs typically presents in one of two ways: failed-locked or failed-freewheeling. The symptoms are very distinct.

• Loud Roaring or "Jet Engine" Noise: This is the most common and obvious symptom. It occurs when the clutch fails in the locked position, causing the fan to spin at full speed all the time. The noise is especially noticeable on a cold start and will get louder with engine RPM. It may sound like a commercial jet or a large truck.
• Overheating at Low Speeds or Idle: If the clutch fails to engage, it will freewheel and not pull enough air through the radiator when the vehicle is stationary or moving slowly. This will cause the engine temperature to rise in stop-and-go traffic.
• Poor Air Conditioning Performance at Idle: For the same reason as overheating, a freewheeling fan won't pull enough air across the A/C condenser. This causes high pressure in the A/C system and results in warm air blowing from the vents when the vehicle is not moving.
• Check Engine Light: The electronic nature of this clutch means a failure will often trigger a Check Engine Light. The most common codes are P0495 (Fan Speed High) and P0526 (Fan Speed Sensor Circuit).
• Reduced Power and Fuel Economy: A clutch that is stuck on forces the engine to constantly turn the heavy fan, robbing horsepower and hurting your gas mileage.
• Wobbling Fan Blade: If you can wiggle the fan blade back and forth (with the engine off), it indicates the bearing inside the clutch has failed.

Diagnosing the Fan Clutch

Before buying a replacement, you can perform a few simple tests:

1. The Spin Test (Engine Off): With the engine completely cool and turned off, try to spin the fan blade by hand. It should have some resistance and stop within one or two rotations. If it spins freely for several rotations, the clutch is worn out and not engaging. If it is extremely stiff or seized and won't turn at all, it has failed in the locked position.
2. The Sound Test: It is normal for the fan to roar for the first 30-60 seconds on a cold start as the internal fluid redistributes. However, if this roar never goes away, the clutch is likely stuck. Conversely, if you never hear the fan engage, even when the engine is hot and the A/C is on, it has likely failed to engage.
3. Scan Tool Diagnosis: The most definitive test uses a bidirectional scan tool. A mechanic can command the fan clutch to engage at various percentages and monitor the actual fan speed reported by the sensor. If the actual speed doesn't match the desired speed, the clutch is faulty.

Buying a Used Engine Cooling Fan Clutch: What to Look For

Given the high cost of a new OEM part, a quality used fan clutch is an excellent value. However, you must inspect it carefully.

• Verify the Electrical Connector: This is the most critical step. Compare the electrical plug on the used part to your original. Make sure the size, shape, and pin configuration are identical. Getting the wrong one will prevent it from plugging into your vehicle's harness.
• Check for Leaks: Inspect the body of the clutch for any signs of oily residue. The clutch is filled with a thick silicone fluid, and any leakage means the internal seals have failed and the part is no good.
• Inspect the Bearing: Hold the main body of the clutch and try to wiggle the threaded hub. There should be no side-to-side play or wobble. A loose bearing will cause noise and eventually seize.
• Look for Physical Damage: Check the plastic connector for cracks and the metal housing for any dents or heavy corrosion that could indicate it was dropped or mishandled.
• Why Used OEM is Often Better: The electronic controls in these clutches are complex. Many inexpensive aftermarket versions have a high rate of premature failure, either failing locked-on (jet engine noise) or failing to engage (overheating). A low-mileage, inspected OEM used part is often more reliable than a brand-new, cheap aftermarket clone.

Replacement Overview

Replacing the fan clutch is a moderately difficult job that can be done by a DIYer with the right tools.

• Difficulty: 3 out of 5
• Special Tools: A fan clutch wrench set is required. This includes a large, thin wrench (often 36mm) and a holding tool to keep the water pump pulley from spinning. These can often be rented from auto parts stores.
• Basic Procedure:
  1. Disconnect the negative battery terminal.
  2. Remove the upper fan shroud (usually two 10mm bolts at the top).
  3. Use the fan clutch tool to hold the water pump pulley while using the large wrench to loosen the fan clutch nut. The nut has standard threads, so you will turn it counter-clockwise (to the left) to loosen.
  4. Disconnect the electrical connector.
  5. Unthread the clutch from the water pump and carefully lift the fan and clutch assembly out of the vehicle.
  6. Unbolt the fan blade from the old clutch (four 13mm bolts) and attach it to the new one.
  7. Installation is the reverse of removal.

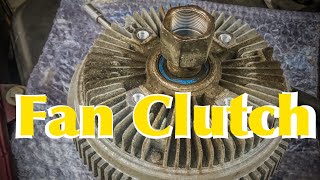

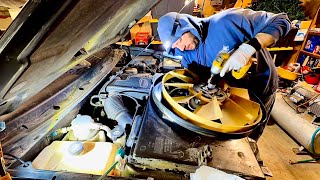

  🎬 See this step-by-step replacement walkthrough for the Envoy XL.

Torque Specifications:

• Fan Clutch Hub Nut to Water Pump: 41 ft-lbs.
• Fan Blade to Fan Clutch Bolts: 20 ft-lbs.

Cost Comparison

Vehicle Fitment & Part Numbers

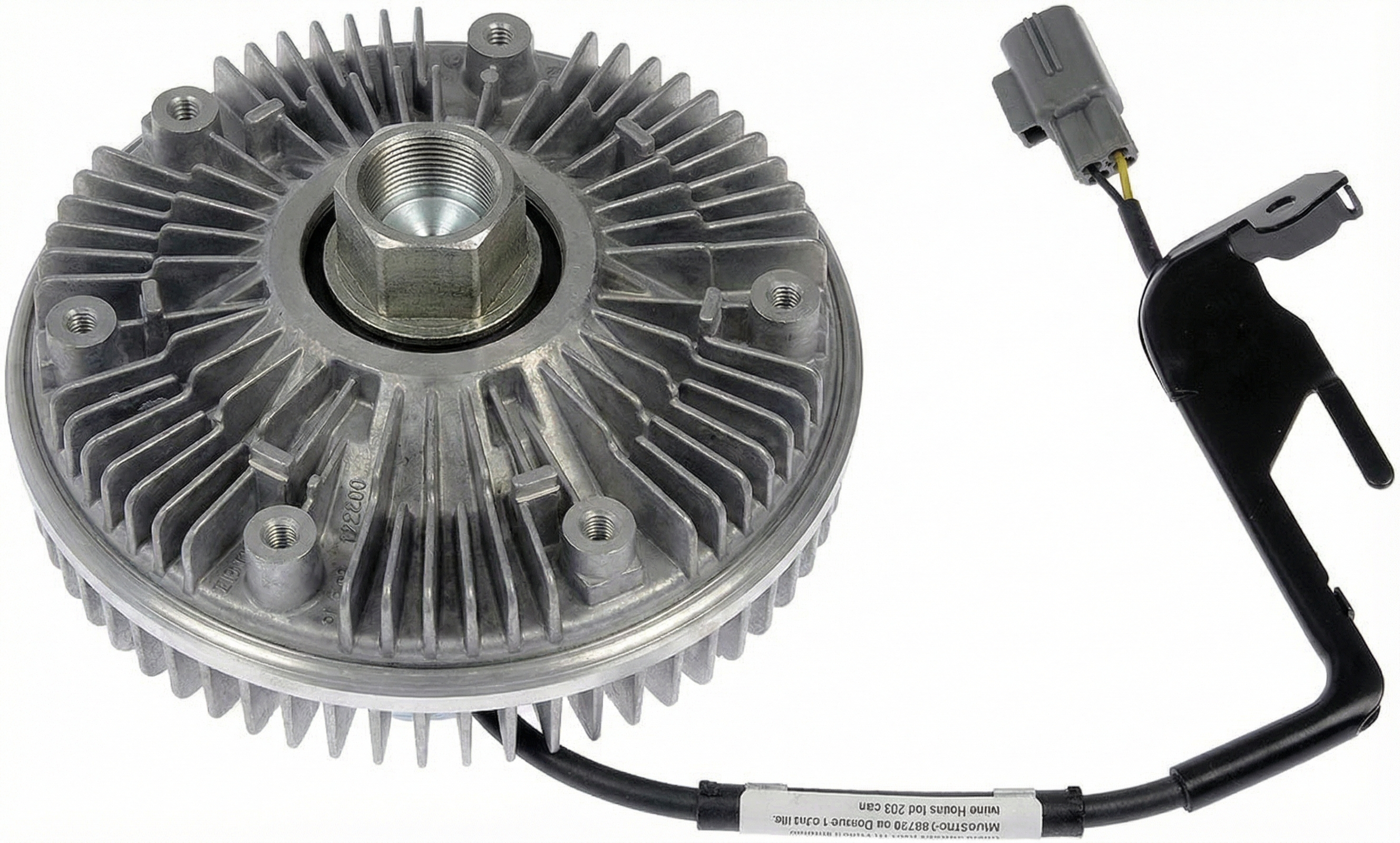

This electronic fan clutch is specific to the 4.2L Inline-6 engine found in the following GMT360 platform vehicles:

• 2002-2007 GMC Envoy, Envoy XL, & Envoy XUV
• 2002-2007 Chevrolet Trailblazer & Trailblazer EXT
• 2002-2004 Oldsmobile Bravada
• 2003-2007 Isuzu Ascender
• 2005-2007 Saab 9-7x
• 2004-2007 Buick Rainier

Over the years, GM has updated this part multiple times. The following OEM part numbers are known to be interchangeable. The latest number, 25790869, supersedes many of the older ones.

• 15071248
• 15116115
• 15152192
• 15293048
• 15802524
• 15802525
• 25790869
• 8150712480
• 8151161150
• 8151521920
