2003-2006 Mercedes ML350 & S350 Cylinder Head Guide: Warpage, Symptoms & Used Part Inspection
This guide covers the common symptoms, causes of failure, and crucial inspection points for the right-side cylinder head used in the 3.7L M112 V6 engine.

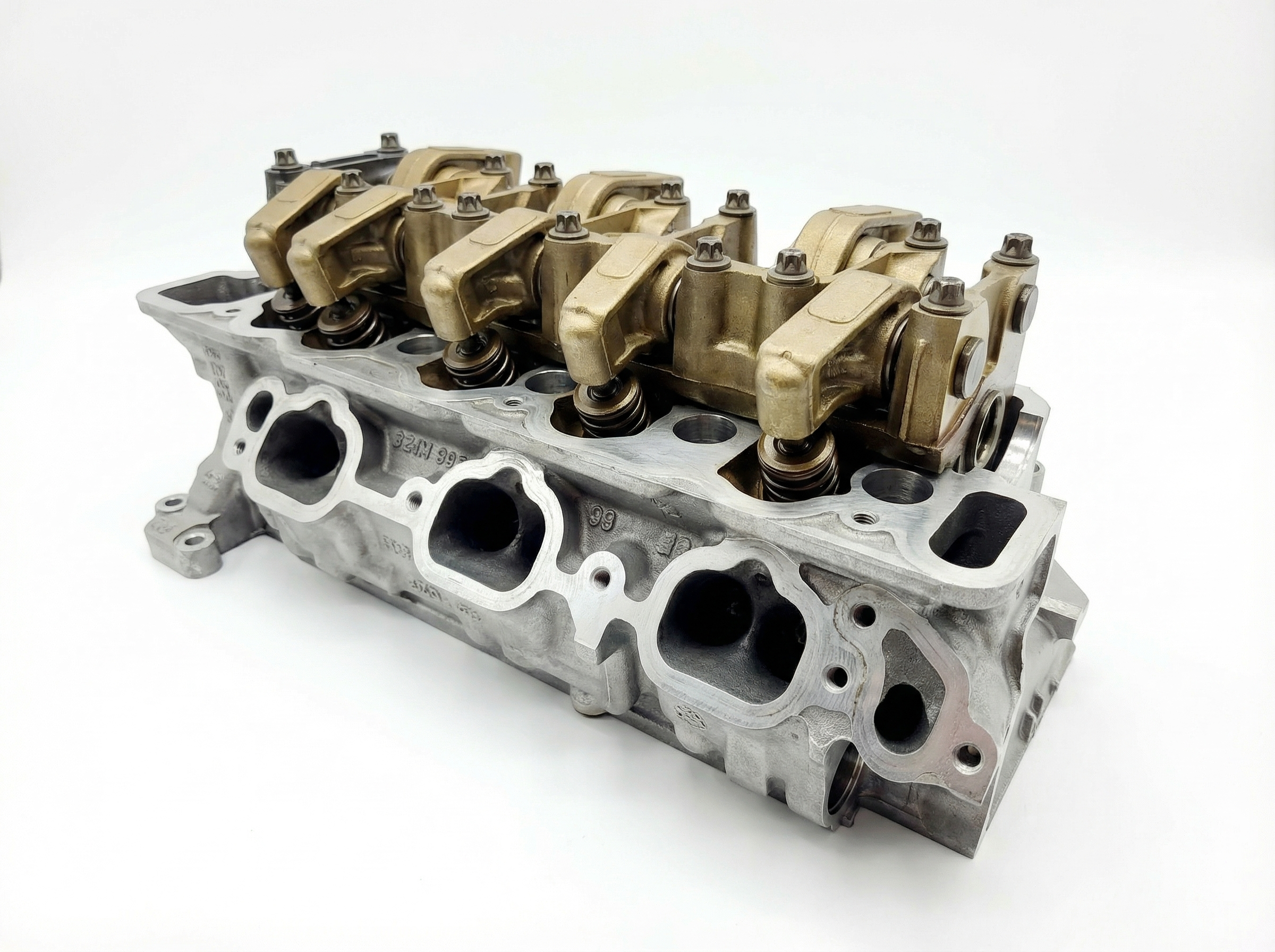

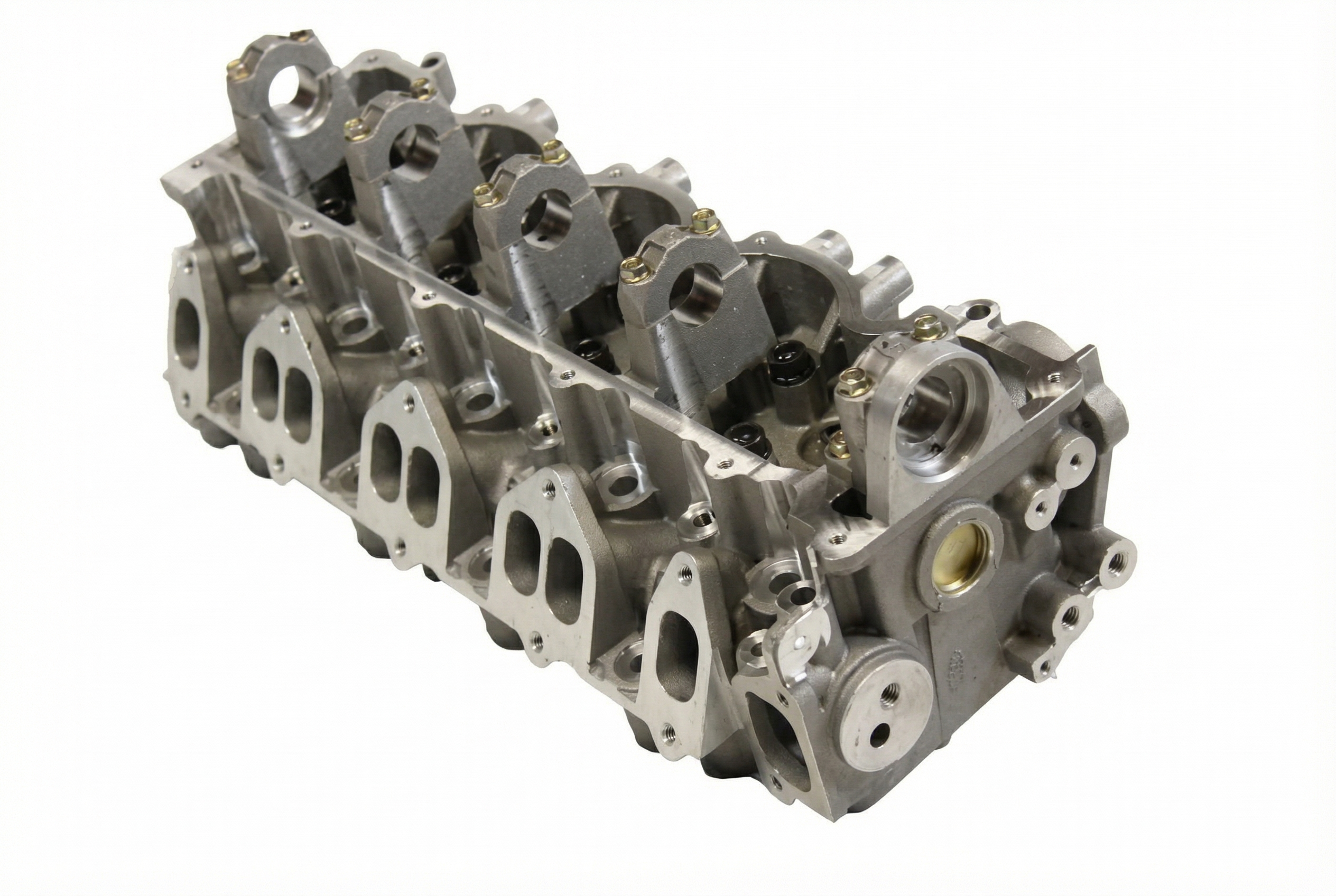

- This right-side cylinder head (part #1120102920) fits the 3.7L V6 in the 2003-2005 ML350 and 2006 S350.
- Cylinder head failure is almost always caused by engine overheating. The root cause of the overheating must be fixed to prevent repeat failure.
- Before buying a used cylinder head, it is absolutely essential to inspect it for warpage with a straightedge and for cracks, especially between the valve seats.
- This is a very difficult (5/5) repair that is not recommended for DIY mechanics due to its complexity and the need for special tools.
Symptoms of a Failing Cylinder Head
Cylinder head problems often share symptoms with a blown head gasket, and the two issues are frequently related. An overheating event caused by a cooling system failure can lead to a blown head gasket, which in turn can cause the aluminum cylinder head to warp or crack. Here are the key signs to watch for:
- Engine Overheating: This is both a cause and a symptom. A warped or cracked head can allow hot combustion gases to leak into the cooling system, creating air pockets and causing the engine to run hot, even with sufficient coolant.
- White Smoke from Exhaust: Sweet-smelling white smoke or steam from the tailpipe is a classic sign that coolant is leaking into the combustion chamber and being burned off.
- Milky, Contaminated Oil: If coolant mixes with engine oil, it creates a milky, frothy substance that looks like a chocolate milkshake. This can be seen on the oil dipstick or oil filler cap and indicates a serious internal breach. This contamination severely reduces the oil's ability to lubricate, risking catastrophic engine damage.
- Unexplained Coolant Loss: If you're constantly adding coolant but see no visible leaks on the ground, it may be leaking internally into the engine.
- Rough Running and Misfires: Coolant in the cylinder can foul the spark plug, and a loss of compression from a poor seal can cause the engine to run rough, hesitate, or trigger misfire-related Check Engine Light codes (e.g., P0300, P0301-P0306).
- Bubbling in Coolant Reservoir: With the engine running, bubbles in the coolant overflow tank can indicate that combustion gases are being forced into the cooling system.
Warning: Driving with these symptoms is not recommended. Overheating can quickly lead to severe and permanent engine damage, turning a repairable issue into one that requires a complete engine replacement.
Known Issues, TSBs, and Recalls
The Mercedes-Benz M112 V6 engine is generally considered durable. Most issues that lead to cylinder head failure are not related to the head itself but to other components failing first.
- Common Leaks: While not a head issue directly, the M112 engine is known for oil leaks from the valve cover gaskets and breather covers. These can sometimes be misdiagnosed, so it's important to identify the source of any leak accurately.
- Cooling System Failure: The primary cause of cylinder head warpage is overheating. This can stem from a failed water pump (early versions had plastic impellers that could fail), a stuck thermostat, or other cooling system blockages. Addressing the root cause of the overheat is critical to prevent a replacement head from failing too.
- Recalls (2003-2005 ML350): While no recalls directly address the cylinder head, the 2003-2005 ML350 was subject to recalls for a power steering hose clamp (NHTSA #2003-040005) and sunroof bonding (NHTSA #19V-918).
- Recalls (2006 S350): The 2006 S350 had recalls for sunroof bonding issues (NHTSA #21V-196) and potential issues with the Active Body Control (ABC) system on equipped vehicles. No recalls were found specifically for the cylinder head on this model.
Buying a Used Engine Cylinder Head
For a vehicle of this age, a quality used OEM cylinder head is often the most cost-effective solution. However, careful inspection is absolutely essential before purchase.
Physical Inspection Checklist:
- Check for Warpage: This is the most critical check. Place a precision straightedge diagonally across the machined surface of the head in several directions. Try to slide a feeler gauge under the straightedge. If a gap exists that is larger than the manufacturer's specification (typically a few thousandths of an inch), the head is warped and will need to be resurfaced by a machine shop. If the warpage is severe, the head may not be salvageable.
- Inspect for Cracks: Look very closely for cracks, especially between the valve seats and around the spark plug holes. These can be very fine. A machine shop can pressure test the head to definitively check for hidden cracks.
- Examine the Mating Surface: The surface that meets the head gasket should be smooth and free of deep scratches, corrosion, or pitting. Any imperfections can compromise the head gasket seal.
- Check Camshaft Journals: If the head includes the camshafts, inspect the bearing surfaces (journals) for scoring, discoloration from heat, or excessive wear.
- Verify Compatibility: Ensure you are buying the correct part. This is the right (passenger side) cylinder head for the 3.7L M112 V6 engine, OEM part number 1120102920. It will not fit the 3.2L V6, diesel engines, or the driver's side.
Pro Tip: When replacing a cylinder head due to overheating, it is highly recommended to also replace the thermostat, water pump, and head bolts. Head bolts on this engine are typically torque-to-yield, meaning they stretch during installation and are designed for one-time use only.
Cost Comparison
Replacing a cylinder head is a labor-intensive job. The part itself is only one component of the total cost. Here is an estimated breakdown:
| Part/Service | Estimated Cost |
|---|---|
| New OEM Cylinder Head | $700 - $720 |
| Used OEM Cylinder Head | $150 - $450 |
| Remanufactured Cylinder Head | $400 - $800 |
| Shop Labor Cost | $2,200 - $3,200+ |
| Total Job Cost (with Used Part) | $2,350 - $3,650+ |
| Total Job Cost (with New OEM Part) | $2,900 - $3,900+ |
Note: Prices are estimates and can vary based on location, shop rates, and the cost of associated parts like gaskets, fluids, and bolts.
Frequently Asked Questions (FAQ)
Is this the same cylinder head for both the ML350 and S350?
Yes, the 2003-2005 ML350 and the 2006 S350 both used the 3.7L M112 V6 engine (engine code 112.970 for the ML350). This specific part, the right-side cylinder head (1120102920), is shared between them.
Can I replace just the head gasket instead of the whole cylinder head?
It depends on the diagnosis. If the engine overheated, the cylinder head itself is likely warped. Simply replacing the gasket without checking and resurfacing the head will almost certainly lead to a repeat failure of the new gasket. A machine shop must verify the head is perfectly flat before reinstallation.
Is this a DIY-friendly repair?
No, this is a very advanced and complex job, rated 5 out of 5 for difficulty. It requires extensive engine disassembly, specialized tools for timing the engine, and a specific, multi-stage torque procedure for the head bolts. This repair is best left to experienced professional technicians.
What causes the M112 engine to overheat?
Common causes of overheating on the M112 engine include a failing water pump, a stuck thermostat, old or contaminated coolant, or a blockage in the radiator. It is crucial to diagnose and fix the original cause of the overheating when replacing the cylinder head to prevent damaging the new part.
Technical Specifications
OEM Part Numbers: 1120102920
Fits the right (passenger) side of the Mercedes-Benz M112 E37 3.7L V6 engine.
