OM651 Engine Harmonic Balancer Issues in Sprinter and GLK250 Models (2013-2017)
This guide covers the common failure symptoms, replacement costs, and inspection tips for the harmonic balancer used in the Mercedes-Benz OM651 diesel engine found in popular Sprinter and GLK250 vehicles.
- The most common sign of failure is a visible wobble of the pulley and increased engine vibration.
- Do not drive with a failing balancer; complete failure can cause catastrophic engine damage.
- When buying used, meticulously inspect the rubber for cracks, bulging, or separation.
- Replacement requires a special flywheel locking tool and a new single-use crankshaft bolt.
Symptoms of a Failing Harmonic Balancer
A failing harmonic balancer on the OM651 engine can produce several distinct symptoms. Early detection is key to preventing more extensive damage.
🎬 Watch: 5 common signs your harmonic balancer is failing- Engine Vibrations: The most common symptom is a noticeable increase in engine vibration felt in the cabin, through the steering wheel, or in the floor. This shaking may be more pronounced at idle or at specific RPM ranges.
- Visible Wobble: A clear sign of failure is a visible wobble of the crankshaft pulley while the engine is running. This indicates the rubber has deteriorated and the outer ring is no longer centered.
- Chirping or Squealing Noises: As the balancer fails, it can cause the serpentine belt to misalign, leading to chirping, squeaking, or rattling sounds from the front of the engine. These noises often change with engine speed.
- Separated Outer Ring: In advanced stages of failure, the outer ring can separate from the inner hub. Sometimes, the ring can be seen moving independently or may even fall off completely, which can cause significant damage to surrounding components like the radiator, hoses, and engine front cover.
- Cracked or Bulging Rubber: A visual inspection may reveal cracks, splits, or bulging in the rubber layer between the balancer's inner and outer sections. Oil leaks from the front crankshaft seal can accelerate this deterioration.
Buying a Used Engine Harmonic Balancer
A recycled OEM harmonic balancer can be a cost-effective solution, but careful inspection is crucial. Because the part's primary failure mode is rubber degradation, a used part must be scrutinized before purchase.

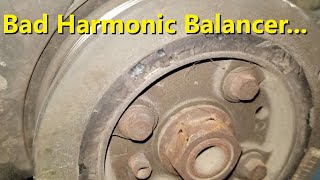

🎬 See what a cracked or failing balancer looks likeInspection Checklist:
- Check the Rubber: This is the most important step. Look for any signs of cracking, dry rot, or missing chunks in the rubber ring. It should be firm and intact with no signs of bulging or separating from the metal rings.
- Examine for Separation: Try to twist the inner hub and outer ring by hand. There should be absolutely no movement between them. Any play indicates the bond has failed.
- Look for Oil Contamination: Check for signs of heavy oil soaking, which can degrade the rubber. A part that is caked in old engine oil should be avoided.
- Inspect the Pulley Grooves: Ensure the grooves for the serpentine belt are clean and free of damage or excessive wear.
- Verify Part Numbers: Confirm the part number matches your vehicle's requirement. The primary OEM part numbers for these vehicles are 6510300303 and 6510300803.
Pro Tip: When possible, choose a used balancer from a lower-mileage vehicle. While age is a factor in rubber deterioration, the heat cycles and vibrations from high mileage are the primary cause of wear.
Known Issues, TSBs, and Recalls
While extensive searches of the NHTSA database did not reveal any recalls or Technical Service Bulletins (TSBs) specifically for harmonic balancer failure on the 2013-2017 Sprinter or GLK250 models, the part is a known wear item. The OM651 engine itself has been noted in forums for potential main bearing issues, though this is not directly linked to the harmonic balancer. The primary issue with the balancer is age- and heat-related degradation of the rubber damping element.
Cost of Replacement
The cost to replace the harmonic balancer can vary based on the parts source and labor rates. Below is an estimated breakdown:
| Item | Estimated Cost |
|---|---|
| New OEM (Dealer) | $250 - $400 |
| New Aftermarket (e.g., Corteco) | $150 - $250 |
| Used OEM | $75 - $150 |
| Shop Labor | $200 - $400 (approx. 2-3 hours) |
Replacement Difficulty and Procedure
Replacing the harmonic balancer on the OM651 engine is a moderately difficult job.
- Difficulty Rating: 3.5 out of 5
- Estimated Time: 2-3 hours
- DIY Feasible: Yes, for experienced mechanics with the right tools.

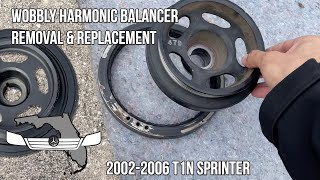

The general process involves removing the serpentine belt, and then unbolting the balancer from the crankshaft. However, this is often complicated by tight access, especially in the Sprinter van's engine bay. 🎬 Watch this step-by-step Sprinter harmonic balancer replacement guide A special tool is typically required to lock the flywheel to prevent the engine from turning while loosening and tightening the high-torque central crankshaft bolt. The bolt itself is often a single-use, torque-to-yield bolt and should be replaced along with the balancer. While you are replacing the balancer, it is an excellent time to inspect the serpentine belt, tensioner, idler pulleys, and the front crankshaft seal for leaks.
Warning: Failure to properly torque the new crankshaft bolt or use the correct flywheel locking tool can lead to the bolt backing out, causing severe engine damage.
Frequently Asked Questions (FAQ)
Can I drive with a bad harmonic balancer?
It is not recommended. A wobbling or noisy balancer can fail completely at any time, potentially shredding the serpentine belt (causing loss of power steering and alternator function) and damaging other components. If the outer ring separates, it can become a dangerous projectile under the hood.
Is a wobbly pulley always a bad harmonic balancer?
In most cases, yes. A visible wobble is a definitive sign that the rubber has failed and the part is out of balance. While a loose central bolt could also cause issues, the most common cause of wobble is the deterioration of the balancer itself.
What happens if the harmonic balancer fails completely?
Complete failure can be catastrophic. The separated outer ring can destroy the radiator, cooling fan, hoses, and engine sensors. The loss of damping can also put extreme stress on the crankshaft and main bearings, potentially leading to internal engine failure.
Is a cheap aftermarket balancer a good idea?
While tempting, a low-quality aftermarket balancer may not have the same damping properties or durability as an OEM or high-quality OEM-supplier part (like Corteco). Given the critical function of this part in protecting the engine, investing in a quality component is highly recommended.
Helpful Videos
Technical Specifications

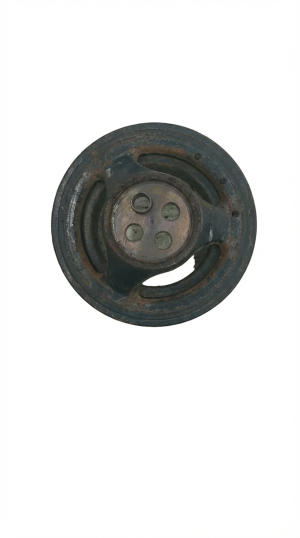

OEM Part Numbers: 6510300303 6510300803 A6510300303 A6510300803
Fits the Mercedes-Benz OM651 2.1L 4-cylinder diesel engine.
