2003-2009 Kia Sorento Intake Manifold: Engine Differences & Failure Guide

Engine & Manifold Differences: 2003-2006 vs. 2007-2009

It is critical to understand that the 2003-2009 Kia Sorento generation used two completely different sets of V6 engines, and their intake manifolds are not interchangeable. You must correctly identify your vehicle's engine before purchasing a replacement part.

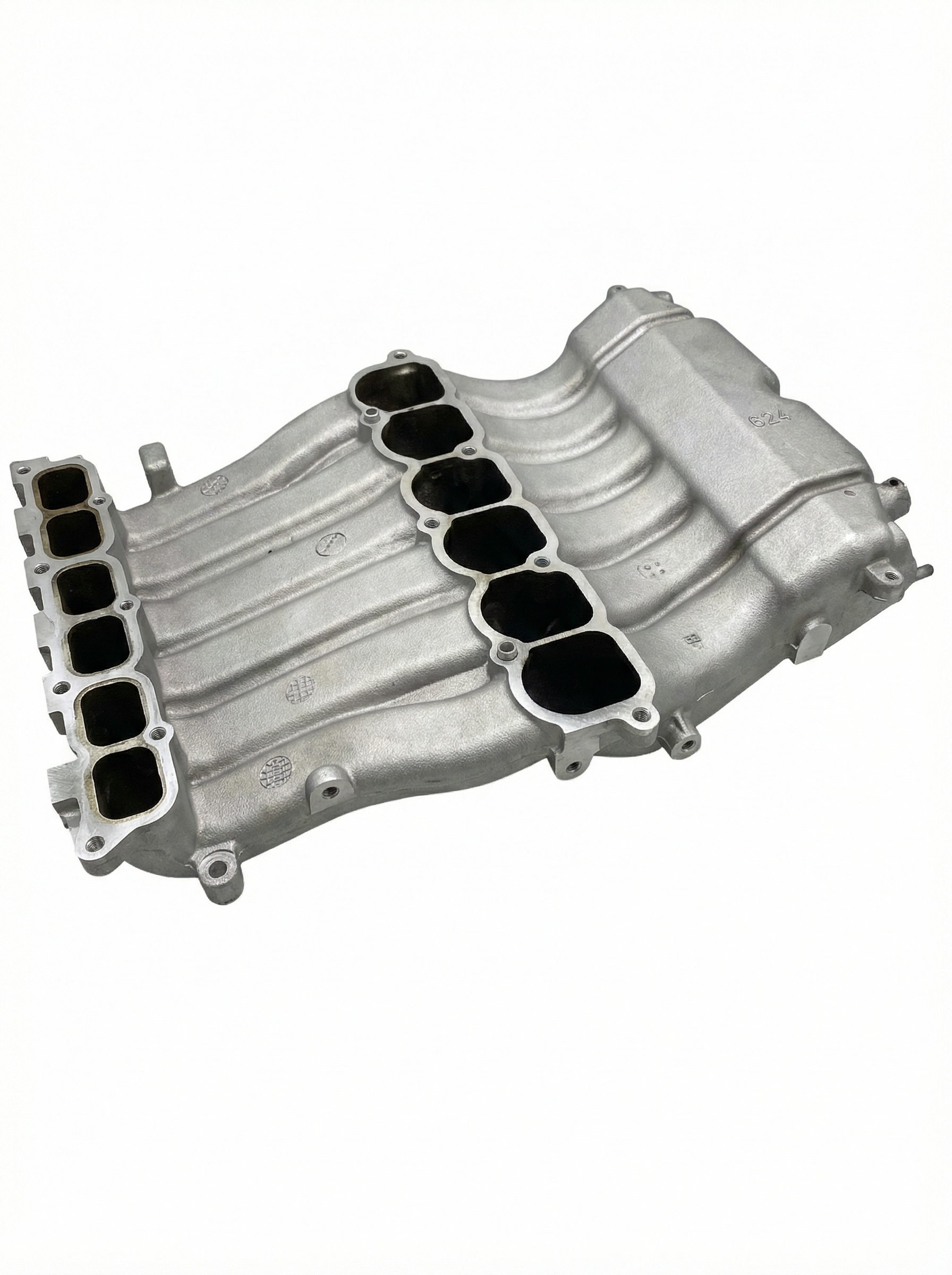

• 2003-2006 Kia Sorento: These models are equipped with a 3.5L V6 (Sigma family) engine. The intake manifold for this engine is a specific design and consists of an upper and lower assembly. A common OEM part number for the lower manifold is 28310-39800.

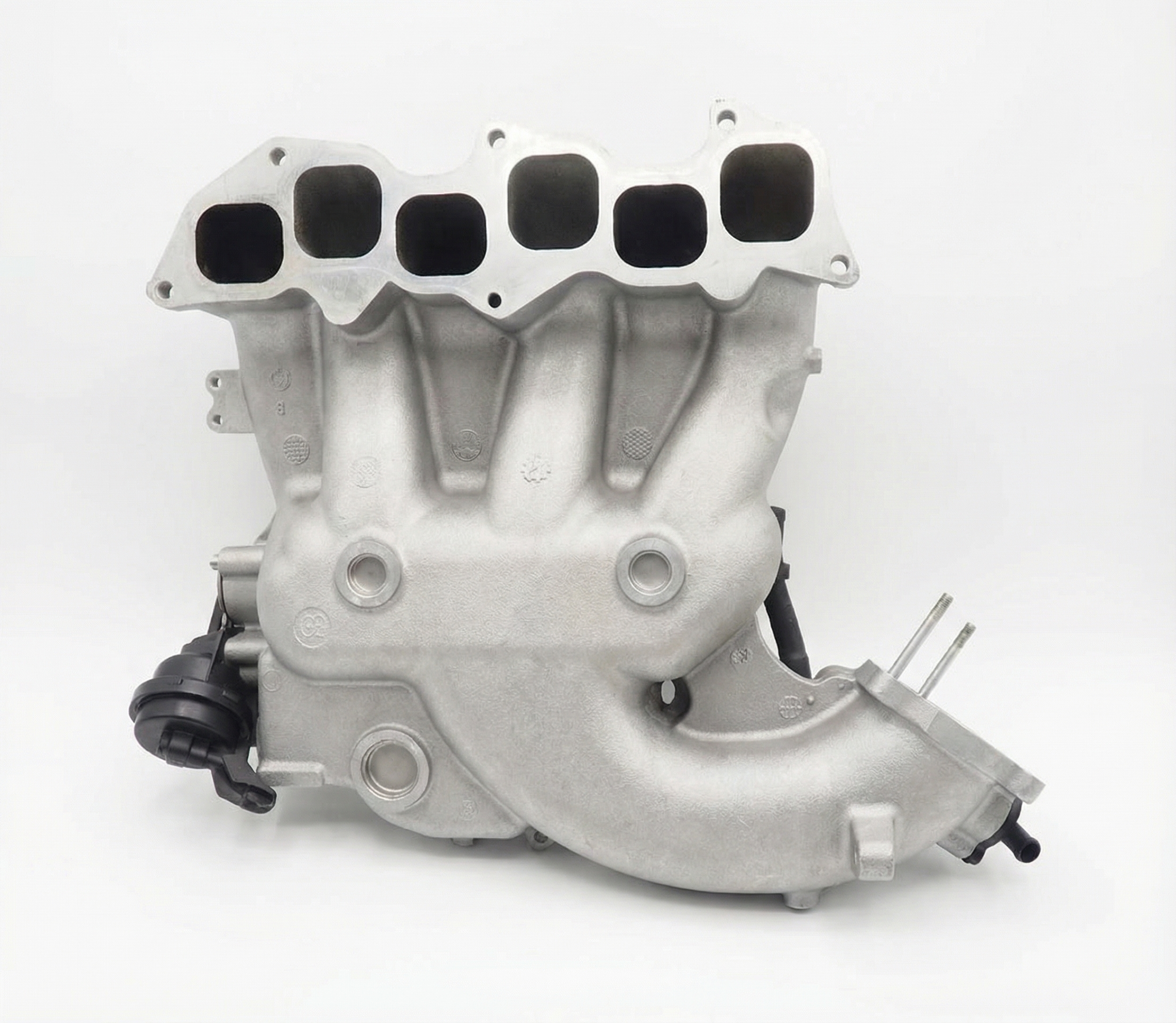

• 2007-2009 Kia Sorento: These later models feature either a 3.3L or 3.8L V6 (Lambda family) engine. These engines use a more complex intake manifold that includes a Variable Intake System (VIS) to improve performance. This system uses an electronic actuator to control flaps inside the manifold.

Common Symptoms of a Failing Intake Manifold

A failing intake manifold, or more commonly, a failing intake manifold gasket, can cause a variety of noticeable engine problems.

1. Vacuum Leaks

This is the most common failure mode. The gaskets that seal the manifold to the cylinder heads can become hard and brittle over time, allowing unmetered air to enter the engine.

• Rough or Unstable Idle: The engine may shake, stumble, or have a fluctuating RPM at idle.
• Hissing Sound: A distinct hissing or whistling noise may be heard coming from the engine bay as air is sucked through the failed gasket.
• Check Engine Light: Lean condition codes like P0171 (System Too Lean Bank 1) and P0174 (System Too Lean Bank 2) are very common. These codes indicate the engine's oxygen sensors are detecting too much air in the exhaust.
• Poor Performance & Fuel Economy: The engine may feel sluggish, hesitate on acceleration, and use more fuel than usual.

2. Variable Intake System (VIS) Failure (2007-2009 3.3L/3.8L Only)

The more complex manifold on the later V6 engines has its own unique failure points related to the variable intake system.

• Loss of Power: The engine may feel weak, especially at higher or lower RPMs, as the system is stuck in one position.
• Rattling Noise: A plastic rattling sound from the top of the engine can indicate that the internal flaps or the actuator linkage has broken.
• Check Engine Light: Specific codes like P200A (Intake Manifold Runner Performance) may be stored, pointing directly to a problem with this system.
🎬 Watch: How to handle P200A codes and manifold replacement.

3. Coolant Leaks (Less Common)

On some engine designs, coolant passes through the intake manifold. A gasket failure can cause external or internal coolant leaks.

• Visible Coolant Leak: You may see green, pink, or yellow fluid dripping from the top of the engine.
• Engine Overheating: A significant coolant leak can lead to low coolant levels and cause the engine to overheat.
• Sweet Smell: The smell of burning coolant is a common indicator of an external leak.

Buying a Used Engine Intake Manifold: What to Check

A used OEM intake manifold can be a cost-effective solution, but a thorough inspection is crucial to avoid buying a part with the same problems you're trying to fix.

• Check for Cracks: Carefully inspect the entire manifold, especially around bolt holes and the plastic seams. Even a small, hairline crack can cause a significant vacuum leak.
• Inspect Mating Surfaces: The surfaces where the manifold bolts to the cylinder heads must be perfectly flat and free of deep scratches or warping. Use a straightedge to check for flatness.
• Verify All Nipples and Ports: Ensure all the small plastic nipples for vacuum hoses are present and not broken off. A broken port can be difficult to repair reliably.
• Test the VIS Actuator (2007-2009 models): If possible, manually move the actuator arm on the manifold. It should move smoothly without binding. Check for excessive play in the linkage, which could indicate internal wear.
• Look for Oil Contamination: A small amount of oil residue inside the manifold can be normal due to the PCV (Positive Crankcase Ventilation) system. However, excessive pooling of oil could indicate a faulty PCV valve on the donor vehicle.
🎬 See why oil builds up in your intake and throttle body.

Cost Comparison

Replacing the intake manifold or its gaskets can vary in cost depending on the parts chosen and labor rates. The job is more labor-intensive on the 2003-2006 models.

Recalls and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific recalls for the intake manifold itself on 2003-2009 Kia Sorento models. However, there are TSBs related to the Variable Charge Motion Actuator (VCMA) on later models that can set a P200A trouble code, which may lead to a misdiagnosis of a bad manifold when only the actuator or a software update is needed.

Frequently Asked Questions (FAQ)
