Diagnosing Idle Vibration in Your 2018-2023 BMW 530e & 2017-2019 740eX: An Engine Mount Guide
This guide details the common failure symptoms, replacement costs, and used buying advice for the hydraulic engine mounts specific to these BMW plug-in hybrid models.
- These hydraulic engine mounts are a known cause of idle vibration in the 530e and 740eX; failure often involves internal fluid loss, not just torn rubber.
- When buying a used mount, the most critical inspection is for any sign of oil leakage; a wet or oily mount is failed and should be rejected.
- This part is ONLY for the 2.0L PHEV versions of these cars and will not fit standard gasoline or diesel models.
- Replacement is more difficult on the 740eX (and any xDrive 530e) because the front axle shafts are in the way.
Key Vehicle Fitment & Compatibility
Warning: This engine mount is specifically for the 2.0L 4-cylinder Plug-In Hybrid (PHEV) models: the 2018-2023 BMW 530e and 2017-2019 BMW 740eX. It will not fit vehicles with standard gasoline or diesel engines due to differences in engine vibration characteristics and mounting points. Always verify fitment with your vehicle's VIN before purchasing.
Symptoms of a Failing Engine Mount
A bad engine mount on these specific BMW models will primarily manifest as a noticeable decrease in ride quality. Because these are sophisticated hydraulic mounts, the symptoms are often more about vibration than loud, catastrophic noises, especially in the early stages of failure.
- Excessive Vibration at Idle: This is the most common complaint from owners. When the gasoline engine is running while the car is stopped (e.g., at a traffic light), you may feel a persistent, annoying vibration through the steering wheel, seats, and floor. This happens because the fluid inside the mount has likely leaked out, leaving only the rubber to absorb vibrations, which it cannot do as effectively.
- Clunking or Thudding Noises: You might hear a 'clunk' or 'thump' from the engine bay during certain situations like accelerating from a stop, shifting gears, or braking abruptly. This sound is the engine physically moving and making contact with other components because the mount is no longer holding it securely.
- Rocky Engine Start/Stop: In a PHEV, the gasoline engine turns on and off frequently. When the mounts are worn, you will feel a more pronounced jolt or shudder throughout the car as the engine engages or disengages.
- Visible Engine Movement: If you have an assistant, you can observe the engine while it's running. Have them hold the brake, put the car in 'Drive,' and gently apply the accelerator. A bad mount will allow the engine to lift or rock excessively.
Vehicle-Specific Known Issues: 530e Idle Vibration
Multiple owners of the BMW 530e (G30 chassis) have reported issues with excessive and difficult-to-diagnose vibrations. In some cases, a failed engine mount was identified as the culprit. Some owners have also noted what they feel is premature failure of the engine and transmission mounts, with symptoms appearing at relatively low mileage. If you own a 530e and are chasing a persistent vibration, the engine mounts should be a primary suspect.
Buying a Used Engine Mount: What to Check
Purchasing a used OEM engine mount can be a cost-effective solution, as a low-mileage original part is often superior in quality and longevity to a cheap aftermarket alternative. However, careful inspection is crucial.
Pro Tip: The typical lifespan of these mounts is estimated to be between 60,000 and 80,000 miles. Avoid purchasing a used mount with mileage approaching or exceeding this range, regardless of its visual condition.
- Check for Fluid Leaks: This is the most important check. Since these are hydraulic mounts, any sign of oily residue or wetness indicates the internal fluid has leaked out, and the mount is bad. The mount should be completely dry.
- Inspect the Rubber: Look for any cracks, splits, or perishing in the rubber sections. The rubber should be pliable and free of significant weathering.
- Look for Collapse: Compare the used mount to photos of a new one. A failed mount will often look compressed or 'collapsed' as the rubber has lost its structural integrity. If the engine is sitting lower on one side, it's a telltale sign of a collapsed mount.
- Verify Part Numbers: Ensure the part number on the mount matches the required OEM number for your vehicle. The primary part number for the driver's side is 22116883245.
Replacement Overview & Difficulty
Replacing the engine mounts on these vehicles is a moderately difficult job that requires supporting the engine's weight to remove the old mounts and install the new ones.
- Difficulty Rating: 4 out of 5
- DIY Feasible: Yes, for experienced mechanics with the proper tools.
- Estimated Time: 2.5 - 4 hours
The general procedure involves removing underbody panels for access, supporting the engine from above with an engine support bar or from below with a jack and a block of wood, and then unbolting the mount from the subframe and the engine bracket. Access is tight, and some bolts may need to be reached from the top of the engine bay.
🎬 Watch: How to remove mounts on the 7-series chassisxDrive Model Warning: The BMW 740eX comes standard with xDrive (All-Wheel Drive). This makes replacement more difficult as the front axles and differential can obstruct access to the mounts. Expect higher labor costs and complexity for the 740eX compared to a rear-wheel-drive 530e.
Cost of Replacement
The cost can vary significantly between a dealership and an independent mechanic. Given the complexity, getting a quote is always recommended.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $155 - $195 (per mount) |
| New Aftermarket (OEM Supplier) | $115 - $140 (per mount) |
| Used OEM | $70 - $90 (per mount) |
| Shop Labor | $350 - $600 |
Recalls and Technical Service Bulletins (TSBs)
As of early 2026, there are no specific recalls or TSBs issued by BMW or the NHTSA for engine mount failure on the 2018-2023 530e or 2017-2019 740eX. Recalls do exist for these vehicles concerning other components like the hybrid battery system and backup camera.
Frequently Asked Questions (FAQ)
Can I drive with a bad engine mount?
It is not recommended for extended periods. While the car is drivable, a bad mount puts extra stress on other components like the transmission mounts, driveshaft, and exhaust system, potentially leading to more expensive repairs. In severe cases, excessive engine movement could damage hoses or wiring in the engine bay.
Are the left and right side engine mounts the same part?
No, they are different. The driver's side (left) mount is part number 22116883245, and the passenger's side (right) mount is 22116883246. They are designed differently to handle the rotational forces of the engine.
Why are these mounts hydraulic and not just solid rubber?
Modern luxury cars use fluid-filled hydraulic mounts to dampen a wider range of vibration frequencies than rubber alone can. This is key to providing the smooth, quiet ride expected from a BMW, especially with the smaller 4-cylinder engine in these large sedans.
My 530e vibrates at idle, but my mechanic says the mounts look fine. What else could it be?
It's possible the mounts have failed internally (lost their fluid) without showing obvious external cracks. However, G30-platform cars can be sensitive to vibrations from other sources, including wheel/tire imbalance, bent wheels, or issues with the transmission mount or driveshaft (guibo). A thorough diagnosis is sometimes needed to pinpoint the exact cause.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22116883245 (Left/Driver Side) 6883245 (Left/Driver Side) 22116883246 (Right/Passenger Side)
Hydraulic (fluid-filled) design

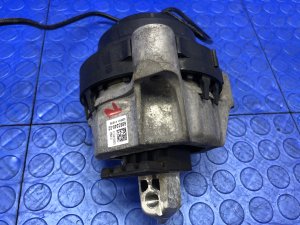

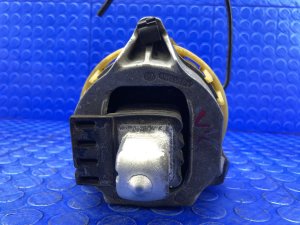

We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
