2016-2019 Nissan Titan XD Cummins Engine Mounts: Diagnosing Vibration and Leaks
This guide covers how to spot the signs of a failing hydraulic engine mount on your 5.0L Cummins Titan XD and what to inspect when buying a used replacement.
- Fitment is strictly for 2016-2019 Titan XD models with the 5.0L Cummins diesel; they will not fit the 5.6L gas engine.
- These are hydraulic mounts. When buying used, the most critical inspection is checking for any fluid leaks from the rubber body.
- The primary symptoms of failure are heavy vibration at idle and loud clunking noises when accelerating or braking.
- Replacing failed mounts is important to prevent expensive damage to other parts like hoses, exhaust, and wiring.
Vehicle and Engine Compatibility Warning
Critical Fitment Information: These engine mounts are exclusively for the 2016-2019 Nissan Titan XD equipped with the 5.0L Cummins V8 turbo diesel engine. The 5.0L Cummins was discontinued after the 2019 model year. These parts will NOT fit any Titan or Titan XD model with the 5.6L gasoline V8 engine.
Symptoms of Failing Engine Mounts
A failing engine mount on the Titan XD Cummins will make itself known through distinct sounds and sensations. 🎬 Watch: 9 common symptoms of failing engine mounts explained. Because the Cummins is a heavy engine with significant torque, a worn mount will result in noticeable symptoms.
- Excessive Vibration: This is the most common symptom. You'll feel a deep, heavy vibration through the steering wheel, floor, and seats, especially when the truck is idling in gear (e.g., at a stoplight). The vibration may lessen once you're moving.
- Clunking or Thudding Noises: Loud clunks, bangs, or thuds when you accelerate, brake, or shift gears are a clear sign of excessive engine movement. This sound is the engine block or its components hitting other parts in the engine bay because the mount is no longer holding it securely.
- Engine Lurching: When starting the engine or turning it off, you may see and feel the entire engine lurch or kick. You can check this by having a helper put the truck in drive (with the parking brake on and foot firmly on the brake pedal) and briefly apply throttle while you watch the engine. Any movement of more than an inch is a red flag.
- Visible Fluid Leaks: The OEM mounts are hydraulic (fluid-filled). If you see dark, oily fluid leaking from the rubber portion of the mount itself, it has failed and can no longer dampen vibrations effectively.
Known Issues, TSBs, and Recalls
While there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Nissan for the engine mounts on the 2016-2019 Titan XD, the 5.0L Cummins powertrain has a reputation for several other issues. These include problems with the turbocharger, EGR system, and transmission. A failed engine mount can put additional stress on exhaust connections, coolant hoses, and transmission alignment, potentially worsening other problems. The National Highway Traffic Safety Administration (NHTSA) has also opened a preliminary evaluation into potential crankshaft failures on these engines. 🎬 Watch: A deep dive into the Nissan 5.0L Cummins engine. Ensuring your engine is properly secured with good mounts is a critical part of overall vehicle health.
Buying a Used Engine Mount: What to Check
A used OEM engine mount can be a great value, as the original Nissan hydraulic mounts are robust and specifically tuned for the Cummins engine. Aftermarket mounts are often solid rubber, which can save money but may transmit significantly more vibration into the cabin. When inspecting a used OEM mount, here’s what to look for:
Pro Tip: Always replace engine mounts in pairs (left and right). If one has failed due to age and mileage, the other is likely not far behind. Replacing both ensures even support and vibration damping.
Physical Inspection
- Check for Leaks: This is the most important check. Turn the mount over and inspect every angle of the rubber body. Look for any dark, oily residue or wetness. A leaking hydraulic mount is completely compromised and should be rejected.
- Inspect the Rubber: Look for deep cracks, splits, or areas where the rubber is separating from the metal housing. Minor surface cracking can be normal, but any significant tearing is a sign of failure.
- Check for Collapse: Compare the used mount to a picture of a new one. If it looks sagged, compressed, or deformed, it has lost its structural integrity and will not support the engine correctly.
- Examine Mounting Points: Ensure the bolt holes and studs are not stripped, damaged, or excessively corroded.
Replacement Overview and Difficulty
Replacing the engine mounts on a Titan XD is a moderately difficult job that requires supporting the engine's weight. For a DIY mechanic with the right tools, it is feasible.
- Difficulty Rating: 3 out of 5
- Estimated Time: 2-4 hours for a pair
- Tools Required: Engine hoist or under-hoist support, floor jack, jack stands, comprehensive socket and wrench set, pry bar.
The general procedure involves securely supporting the engine from above with a hoist or from below with a jack and block of wood under the oil pan. Once the engine's weight is off the mounts, you can unbolt the mount from the frame and the engine bracket, raise the engine just enough to create clearance, and swap 🎬 See this step-by-step walkthrough of a Titan mount replacement. the old mount for the new one. Access to the upper bolts can be tight, particularly on the driver's side.
Cost Comparison for Titan XD Engine Mounts
Prices can vary based on supplier and location. The OEM mounts are hydraulic and more expensive than basic aftermarket rubber mounts.
| Part Type | Estimated Cost (Per Mount) |
|---|---|
| New OEM (Nissan) | $220 - $330 |
| New Aftermarket (Solid Rubber) | $50 - $150 |
| Used OEM (Recycled) | $80 - $160 |
| Shop Labor (Per Mount) | $150 - $300 |
Technical Specifications & Part Numbers
It is crucial to verify the part number for your specific application. The main front insulators appear to be the same for both sides, but the mounting brackets are side-specific.
| Part Number | Description | Position |
|---|---|---|

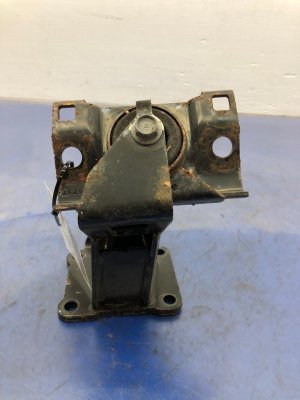

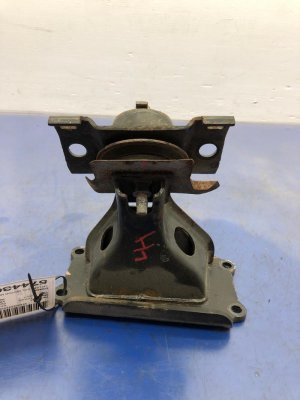

| 11220-EZ50A | Insulator - Engine Mounting, Front | Front Left (Driver) & Right (Passenger) |

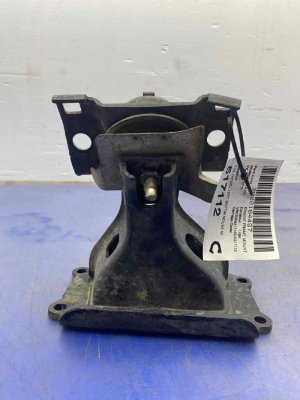

| 11232-EZ50A | Bracket - Engine Mounting | Front Right (Passenger Side) |

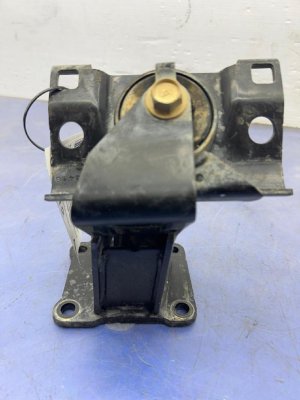

| 11233-EZ30A | Bracket - Engine Mounting | Front Left (Driver Side) |
| 11320-EZ40B | Mounting Insulator, Rear | Rear / Transmission |
Frequently Asked Questions (FAQ)
Can I drive with a bad engine mount?
You can, but it's not recommended for long. A failed mount allows excessive engine movement, which puts severe stress on wiring harnesses, coolant hoses, exhaust components, and the transmission. Driving with a completely broken mount can lead to very expensive secondary damage.
Are the left and right engine mounts the same on the Titan XD Cummins?
The main front mount insulator, part number 11220-EZ50A, is listed for both the left and right front positions. However, the metal brackets that attach the mount to the engine are different for the driver and passenger sides.
Why are these mounts so expensive and filled with fluid?
They are hydraulic mounts, which contain fluid and internal chambers designed to cancel out specific vibration frequencies. This technology is much more effective at creating a smooth ride than a simple block of rubber, especially with a powerful V8 diesel engine, but it is also more complex and costly to manufacture.
My truck vibrates, but only at highway speeds. Is it the engine mounts?
Probably not. Engine mount failure typically causes the most noticeable vibration when the engine is under load at low RPMs or at idle. Vibration that only appears at highway speeds is more commonly caused by an out-of-balance tire, a bent wheel, or a driveline issue.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11220-EZ50A 11232-EZ50A 11233-EZ30A 11320-EZ40B
Hydraulic, fluid-filled design.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
