2009-2024 Nissan GTR Engine Oil Pump: Failure Symptoms and a Very Expensive Replacement
This guide covers the critical signs of a failing oil pump in your GTR's VR38DETT engine and explains why the labor to replace it is one of the most expensive repairs for this car.
- A failing oil pump is critical; if you see a low pressure warning, shut off the engine immediately to prevent catastrophic failure.
- Replacement is one of the most expensive repairs for a GTR, with labor costs alone ranging from $2,500 to $3,700 due to the need for engine removal or major disassembly.
- The OEM part number 15010-JF00B is used across all 2009-2024 models, and failures are typically caused by debris or high mileage, not a factory defect.
- When buying a used pump, prioritize low mileage and carefully inspect the internal rotors for scoring to avoid paying the massive labor bill twice.
Symptoms of a Failing Engine Oil Pump
An oil pump failure in a Nissan GTR is one of the most serious mechanical issues you can face. The consequences are severe and immediate, so recognizing the early warning signs is critical. Unlike some parts that degrade slowly, a failing oil pump provides very little warning before complete engine seizure occurs.
1. Low Oil Pressure Warning on Multi-Function Display
The most direct sign of a problem is the low oil pressure warning. In the GTR, the multi-function display (MFD) shows vital engine statistics, including oil pressure. If you see the oil pressure gauge drop significantly, or if the display color changes to red to indicate a warning, you must stop the engine immediately. Driving with low oil pressure, even for a short time, can cause irreversible damage.
🎬 Watch: A guide to recognizing low oil pressure symptoms2. Increased Engine Temperature
Engine oil is responsible for a significant portion of engine cooling. If the oil pump isn't circulating oil effectively, friction between moving parts will increase dramatically, causing the engine temperature to rise quickly. An overheating engine that accompanies a low oil pressure reading is a sign of a critical lubrication failure.
3. Unusual Engine Noises
When oil pressure drops, metal components begin to make contact without the protective film of oil. This creates distinct sounds:
- Ticking or Tapping from the Valvetrain: Hydraulic lifters may not get enough oil pressure to operate correctly, leading to a fast ticking or tapping noise from the top of the engine.
- Engine Knocking or Rumbling: This is a deeper, more serious noise from the bottom end of the engine. It indicates the rod bearings are being damaged from lack of lubrication, which is often the final sound before the engine seizes.
- Whining from the Oil Pump: Sometimes, the pump itself will make a whining or whirring noise as it fails. This is caused by the internal gears wearing out and is a direct symptom of a failing pump.
Warning: If you experience any of these symptoms, especially a low oil pressure warning, pull over safely and shut off the engine immediately. Do not attempt to restart it or drive to a mechanic. The risk of complete engine destruction is extremely high.
Known Issues, TSBs, and Recalls
For the 2009-2024 Nissan GTR, there are no widespread factory defects, recalls, or Technical Service Bulletins (TSBs) related to engine oil pump failure. Failures are uncommon on stock or lightly modified vehicles. Most issues arise from two main causes:
- Debris Contamination: If another part of the engine fails (such as a piston ring or bearing), metal debris can circulate in the oil. The oil pickup screen will catch larger pieces, but smaller particles can enter the pump, causing its internal gears to score or seize completely.

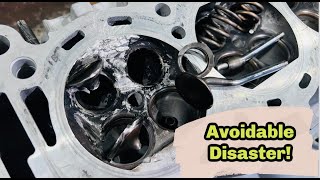

- High-Horsepower Builds: On heavily modified GTRs, the stock oil pump may not provide sufficient flow and pressure to protect the engine under extreme load. 🎬 See what happens during a catastrophic VR38 engine failure This can lead to oil starvation and bearing failure. For this reason, owners of high-power builds often consider oiling system upgrades, though complete aftermarket pumps for the VR38 are not common.
Buying a Used Engine Oil Pump
Given the extremely high cost of labor, saving money on the part itself is a smart move. A used OEM oil pump from a low-mileage vehicle can be a reliable and cost-effective alternative to a new part. Here’s what to inspect:
- Verify the Part Number: Ensure the pump is part number 15010-JF00B. This part has remained consistent across all R35 GTR model years.
- Check Mileage and Source: Only purchase a pump from a reputable seller who can provide the mileage of the donor vehicle. Aim for a pump from a low-mileage car (under 60,000 miles) that was not involved in a severe front-end collision.

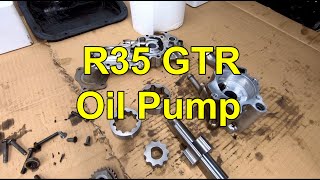

- Inspect the Internals: If possible, look inside the pump's inlet and outlet ports. Check the internal rotor gears for any signs of scoring, gouging, or metal debris. The surfaces should be smooth. 🎬 Watch: A look inside the Nissan R35 GTR oil pump Any sign of scoring means the pump ingested debris and should be avoided.
- Turn the Gear by Hand: The central drive gear should turn smoothly with some resistance. If it feels gritty, rough, or is completely seized, the pump is bad.
- Examine the Housing: Check the aluminum housing for any cracks, especially around the mounting points.
Pro Tip: The labor to replace the oil pump is the most expensive part of the job. Saving a few hundred dollars on a questionable, high-mileage used pump is not worth the risk. It is better to pay a bit more for a verified, low-mileage used OEM part or a new OEM unit than to have to pay for the same massive labor bill twice.
Cost for Engine Oil Pump Replacement (2009-2024 Nissan GTR)
Replacing the oil pump on a GTR is an extremely labor-intensive job that often requires removing the engine or at least the front subframe and extensive components. This is not a typical repair and the cost reflects that.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Pump | $900 - $1,600 | Price from Nissan dealerships or online OEM suppliers. |
| Used OEM Pump | $200 - $550 | Price depends heavily on mileage and condition. Found on sites like eBay. |
| New Aftermarket Pump | Not Widely Available | Unlike for older GTRs, complete aftermarket pumps for the VR38 are not common. The market relies on OEM. |
| Shop Labor | $2,500 - $3,700 | This is the most significant cost. RepairPal estimates a very high labor charge due to the job's complexity. |
| Total Cost | $2,700 - $5,300+ | Total cost will vary based on the part chosen and local shop rates. |
Installation Difficulty
- Difficulty: 5 out of 5 (Expert Level)
- Estimated Time: 15-25 hours
- DIY Feasible: No
This is not a DIY project for a home mechanic. The oil pump is located deep inside the engine behind the timing cover and is driven by the timing chain. Access requires removing the oil pan, front differential on AWD models, timing components, and potentially the entire engine from the vehicle. Specialized tools, an engine hoist, and expert-level knowledge of the VR38DETT are required. Given the cost of a mistake—total engine failure—this job should only be performed by a GT-R specialist technician.
Frequently Asked Questions (FAQ)
Can I drive my GTR if I suspect the oil pump is failing?
No. If you see a low oil pressure warning or hear engine knocking, shut the engine off immediately. Continuing to drive will destroy the engine, turning a very expensive repair into a catastrophic one requiring a full engine replacement.
Is there a difference in oil pumps between early (CBA) and later (DBA) GTRs?
No, the OEM part number 15010-JF00B is specified for all model years from 2009 to 2024. While Nissan made many updates to the GTR over the years, the core oil pump assembly appears to have remained the same.
What causes the oil pump to fail on a GTR?
The most common causes are not a defect in the pump itself, but external factors. Ingesting metal debris from another engine component failure or simple wear and tear on high-mileage, hard-driven cars are the primary reasons for failure. Using low-quality or incorrect viscosity oil can also contribute to premature wear.
Is an aftermarket oil pump a good upgrade?
For most owners, the OEM pump is the only option, as complete aftermarket pumps for the VR38 are not readily available. For highly modified, high-horsepower track cars, some builders perform modifications to the oiling system, but this is a specialized process, not a simple bolt-on upgrade. For stock or moderately tuned cars, the OEM pump is sufficient.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15010-JF00B
Trochoid-type (gerotor) oil pump, driven by the primary timing chain.
