2021-2024 Ford Mustang Mach-E Front Motor Wiring Harness: AWD vs. RWD and Common Failures
This guide covers the critical differences between Mach-E motor wiring harnesses, common failure symptoms, and how to choose the correct used part to avoid power loss and other electrical issues.
- Compatibility is critical: AWD, RWD, and GT models use different harnesses. You must verify the OEM part number before buying.
- Replacement is NOT a DIY job. The high-voltage system is extremely dangerous and requires a certified EV technician.
- A bad harness can cause a sudden loss of power and a 'Stop Safely Now' warning, similar to the well-known HVBJB recall.
- When buying used, the most important inspection points are the connector locking tabs and pins—any damage is a major red flag.
Vehicle-Specific Known Issues, TSBs, and Recalls
While the motor wiring harness itself has not been the subject of a major recall, it is a key component in the vehicle's high-voltage system, which has seen significant service actions. Understanding these issues provides crucial context for diagnosing harness-related problems.
Recall 23S56 / 22S41: High Voltage Battery Junction Box (HVBJB) Failure
Critical Issue: The most well-known problem on 2021-2022 Mach-E models, especially Extended Range and GT versions, is the failure of the High Voltage Battery Junction Box (HVBJB). Repeated DC fast charging or hard acceleration events can cause the main electrical contactors inside the box to overheat and fail.
This can lead to a sudden and complete loss of power while driving, accompanied by a "Stop Safely Now" message. 🎬 Watch: One owner's experience with the HVBJB failure. While the wiring harness is not the root cause, a failure in the HVBJB can potentially damage harness connectors. Furthermore, symptoms of a bad harness can mimic a failing HVBJB, making diagnosis complex. Ford's remedy was an initial software update to limit power, followed by a physical replacement of the HVBJB on affected vehicles. Before purchasing a 2021-2022 Mach-E, it is essential to verify with a Ford dealer that recall 23S56 has been completed.

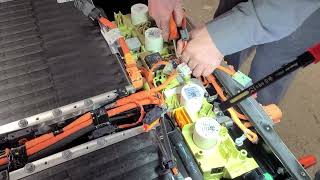

🎬 Watch: A detailed breakdown of the 23S56 contactor recall.Customer Satisfaction Program 25B35: Wiring Harness Chafing
On some 2025 model year Mach-E vehicles, Ford identified an issue where a wiring harness in the front trunk ('frunk') area could rub against a radiator overflow line clamp. Over time, this contact could wear through the wire insulation, potentially causing a loss of AWD, reduced power, or charging problems. The fix involves inspecting the harness and installing a retaining clip to create proper clearance. This highlights the importance of ensuring all harnesses are properly routed and secured, away from sharp edges or moving parts.
Symptoms of a Failing Motor Wiring Harness
Harness failures can cause a wide range of confusing symptoms, from minor glitches to a non-drivable vehicle.
- "Stop Safely Now" Warning / Loss of Power: This is the most severe symptom. While often associated with the HVBJB, a short or open circuit in the main motor harness can interrupt power or data flow, causing the vehicle to shut down as a safety precaution.
- Multiple Warning Lights and Error Messages: A damaged harness can cause a flood of seemingly unrelated error messages. You might see warnings for the AWD system, service vehicle soon, powertrain malfunction (wrench light), or charging system faults simultaneously. This is often due to a loss of communication between control modules.
- No-Start Condition: If the harness has a critical failure, the vehicle's computers may not be able to verify that the high-voltage system is safe to engage, preventing the car from 'starting' or entering a ready-to-drive state.
- Loss of All-Wheel Drive (AWD): On AWD models, if the front motor harness is compromised, the front motor will be disabled. The vehicle may still be drivable in a reduced-power, Rear-Wheel Drive mode, but an "AWD System Failure" message will be present.
- Rodent Damage: A common cause of harness failure is rodents chewing on wires. This often results in very specific, difficult-to-diagnose electrical faults. Visual inspection is key.
Buying a Used Engine Wiring Harness
Due to the complexity and high cost of a new harness from Ford, a used OEM harness is often a practical choice. However, careful inspection is mandatory. Aftermarket options for these specific, complex harnesses are generally not available.
Compatibility Warning: This is the single most important factor. The Mustang Mach-E uses many different harnesses based on drive type (AWD vs. RWD), trim level (GT or non-GT), and model year. The front motor harness will only be present on AWD models. You MUST match the OEM part number from your original harness exactly. Do not rely on visual comparison alone.
Inspection Checklist:
- Verify the Part Number: Locate the tag on the harness and confirm the part number matches what you need. A harness for a non-GT AWD model like LJ9Z-12B637-B will not work on a GT.
- Inspect All Connectors: This is the most common failure point on a used harness. Look for broken locking tabs, bent or corroded pins, and any signs of melting or black marks from electrical arcing. A connector that doesn't lock securely will cause intermittent problems.
- Examine the Wires: Carefully check the entire length of the harness for cuts, abrasions, or areas that have been chewed by rodents. Pay close attention to where the harness might bend or pass near sharp edges.
- Check the Protective Conduit: The black plastic sheathing should be intact and flexible. If it's brittle, cracked, or missing in sections, the wires underneath may have been exposed to heat and moisture.
- Ask About the Donor Vehicle: Inquire about the vehicle the part came from. Avoid harnesses from flood-damaged or fire-damaged cars. A part from a car with a front-end collision should be inspected with extra care for hidden damage.
Cost Comparison
Prices for Mach-E motor harnesses vary significantly depending on the specific application and complexity.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $300 - $1,600+ |
| New Aftermarket | Generally Not Available |
| Used OEM | $100 - $700 |
| Shop Labor | $500 - $3,000+ |
Labor costs are high because replacing the front motor harness can be a very involved job, potentially requiring disassembly of the front drive unit and suspension components.
Replacement Difficulty & Procedure
- Difficulty Rating: 5 out of 5 (Professional Only)
High-Voltage Danger: Replacement of this harness is NOT a DIY job. It involves the vehicle's high-voltage system, which carries lethal amounts of electricity. This work should only be performed by a qualified technician certified to work on electric vehicles. The system must be properly depowered before any work begins.
The general procedure involves safely depowering the high-voltage system, raising the vehicle, removing front-end components for access (which may include the frunk liner, cross-members, and potentially the drive unit itself), carefully disconnecting all attachment points, routing the new harness, and reassembling. The complexity of this job is the primary driver of high labor costs.
Frequently Asked Questions (FAQ)
Can a bad wiring harness cause the 'Stop Safely Now' error?
Yes. While the HVBJB is the most common cause on 2021-2022 models, a severe fault in the motor wiring harness that interrupts power or critical data can also trigger this error message as the vehicle's safety systems shut down propulsion.
What is the difference between the AWD and RWD harnesses?
The most significant difference is that an All-Wheel Drive (AWD) model has a second electric motor in the front, which requires its own dedicated motor wiring harness. 🎬 See this teardown of the Mach-E front motor design. A Rear-Wheel Drive (RWD) model does not have this front motor or its associated harness. The harnesses are not interchangeable.
Is it safe to replace a Mach-E high-voltage wiring harness myself?
No. Unless you are a certified EV technician with the proper training and safety equipment, you should never attempt to work on the orange high-voltage cables or their associated harnesses. The risk of severe injury or death from electric shock is extremely high.
Why is a broken connector clip on a used harness a big deal?
The locking clips on automotive connectors are critical for ensuring a secure, vibration-proof connection. A connector with a broken clip can vibrate loose over time, causing intermittent faults, communication errors, and hard-to-diagnose problems. It may seem like a small piece of plastic, but it's essential for long-term reliability.
Helpful Videos
Technical Specifications
OEM Part Numbers: KN9T-14290-GC LJ8T-14290-NDG LJ8T14290ND LJ9Z-14290-BA NJ8T-14290-ND NJ8T-14290-NDC NJ8T14290 NJ8Z-14290-A NJ8Z-14290-F PJ8T12B637 PJ8T14290 PJ8Z-14290-N PK9T14290 PK9Z-14290-A PK9Z-14290-B NJ8Z-12B637-B NK9Z-12B637-A
Harness specifications are specific to the vehicle configuration (AWD/RWD, GT/non-GT, model year). Part number must be matched exactly for compatibility.
