2018-2024 Odyssey Engine Harness: Decoding 9-Speed vs. 10-Speed Wiring
This guide covers the critical differences between engine harnesses for the 9-speed and 10-speed transmissions, plus common failure symptoms and inspection tips for used parts.
- The most critical factor is transmission type: 2018-2019 Odysseys used both 9-speed and 10-speed automatics, which require different harnesses. Verify before buying.
- When buying used, meticulously inspect for cut wires, broken/melted connectors, and brittle insulation. A damaged connector can make the whole harness unusable.
- Symptoms of failure are often electrical and intermittent, including random stalling, misfires, a no-start condition, and multiple unrelated warning lights.
- Replacement is a complex, labor-intensive job (5/5 difficulty) best left to professionals, as it requires disconnecting and correctly rerouting dozens of connections.
The Most Important Factor: 9-Speed vs. 10-Speed Transmission
Warning: The single most critical detail when replacing an engine wiring harness on a 2018-2024 Honda Odyssey is the transmission type. The harnesses are NOT interchangeable between the 9-speed and 10-speed automatic transmissions.
For the 2018 and 2019 model years, Honda offered two different automatic transmissions depending on the trim level. From 2020 onward, all Odyssey models came standard with the 10-speed automatic.
- 2018-2019 LX, EX, EX-L, EX-L Navi/RES: These trims were equipped with a 9-speed automatic transmission.
- 2018-2019 Touring and Elite: These higher trims were equipped with a 10-speed automatic transmission.
- 2020-2024 All Trims: All models from 2020 on use the 10-speed automatic transmission.
Using a harness designed for the wrong transmission will result in communication errors, check engine lights, and likely a no-start condition. Always verify the original part number from the harness in the vehicle or confirm the vehicle's transmission type before purchasing a replacement.
Known Issues, Recalls, and Technical Service Bulletins
While the main engine harness itself has not been the subject of a specific recall, there are related wiring issues and TSBs for the 2018-2024 Odyssey that owners should be aware of.
Recall: Third-Row Accessory Power Outlet Wiring (NHTSA 20V-066)
In February 2020, Honda recalled approximately 241,000 Odyssey models from 2018-2020 (EX-L, Touring, and Elite trims). The wire harness for the third-row power outlet could get pinched during installation, creating a short circuit and a potential fire hazard. The remedy involves inspecting the harness, re-routing it, and applying protective tape. If damage is found, the harness is replaced. While this is not the main engine harness, it highlights the potential for wiring issues in the vehicle.
TSB: MOST Bus Network Connectors (21-013)
Honda issued a warranty extension for the MOST bus network connectors on 2018-2020 Odysseys (all trims except LX). Symptoms include popping or crackling from the speakers, no audio, or a 'Network Loss' message on the display. This is caused by a loose connection in the FAKRA connectors that are part of the vehicle's wiring network. The fix involves installing an updated connector set. This issue is often mistaken for a major harness failure but is a more localized repair.
Recall: Coaxial Cable for Backup Camera
A large recall affecting 2018-2024 Odysseys involves a faulty communication coaxial cable that can cause the backup camera image to not appear on the display. Dealers install an improved cable harness to resolve the issue. This is another example of a specific wiring sub-harness causing problems, not the main engine harness.
🎬 Watch: News report on the Honda rear camera cable recallSymptoms of a Failing Engine Wiring Harness
A damaged engine harness can cause a wide range of confusing and intermittent problems. Because it connects to nearly every engine system, a single broken wire or corroded connector can have far-reaching effects.
- Check Engine Light: This is the most common symptom. A fault in a sensor circuit will trigger a Diagnostic Trouble Code (DTC) and illuminate the light.
- Engine Stalling or Misfiring: If wires connected to the crankshaft position sensor, ignition coils, or fuel injectors are damaged, the engine may run rough, misfire, or stall unexpectedly.
- Difficulty Starting: A no-start or intermittent start condition can occur if the harness fails to deliver power or signals to the starter motor, fuel pump, or ignition system.
- Poor Fuel Economy: Incorrect signals from sensors like the Mass Airflow (MAF) or oxygen sensors can cause the engine to run inefficiently.
- Flickering Lights or Erratic Gauge Behavior: While often a sign of a bad battery or alternator, a major short in the engine harness can cause widespread electrical issues.
- Burning Plastic Smell: A strong burning smell from the engine bay is a critical warning sign. It can indicate that wire insulation is melting due to a short circuit, which is a significant fire risk.
- Multiple Unrelated Warning Lights: A cascade of warning lights (ABS, VSA, Power Steering, etc.) can sometimes point to a communication breakdown on the vehicle's data network, 🎬 Watch: What it looks like when all dash lights illuminate which runs through the main harnesses.
Buying a Used Engine Wiring Harness
A used OEM engine harness can be a cost-effective solution, as new harnesses are extremely expensive and aftermarket options are virtually nonexistent. However, careful inspection is crucial.
Physical Inspection Checklist
Before purchasing, meticulously inspect the entire harness for the following:
- No Cut Wires or Splicing: Never buy a harness with cut wires or shoddy electrical tape repairs. This indicates it was either removed improperly or has been tampered with.
- Intact Connectors: Check every single plastic connector. Look for cracks, melting, or broken locking tabs. A single damaged connector can render the entire harness useless.
- Flexible Wiring: The plastic sheathing and wire insulation should still be flexible. If it's hard, brittle, or cracking, it has likely been damaged by excessive heat and will not last.
- No Corrosion: Look for green or white crusty buildup on the copper pins inside the connectors. Corrosion creates poor connections and leads to intermittent electrical faults.
- No Rodent Damage: Look for any signs of chewed wires or nests. Modern soy-based wire insulation can attract rodents, and their damage can be difficult to spot and repair reliably. 🎬 See how to effectively repair harness damage caused by rodents
- Original Part Number Tag: Ensure the original white paper or plastic tag with the Honda part number is present and legible. This is the best way to confirm you are buying the correct part.
Verifying Compatibility
As mentioned, the 9-speed and 10-speed transmission harnesses are different. The part number is the ultimate source of truth. For example:
- Part number 32100-THR-A11 is listed for 2019 Odyssey EX and EX-L models with the 9-speed automatic transmission (KA 9AT).
- Part number 32100-THR-A42 is listed for 2021-2024 Odyssey Touring and Elite models, which have the 10-speed transmission.
Do not rely on visual comparison alone. Always match the part number from your original harness to the one you are purchasing.
Replacement Overview & Difficulty
Replacing the engine wiring harness is a complex and time-consuming job, not recommended for beginners.
- Difficulty: 5 out of 5
- Time: 6-10 hours for a professional technician.
- Process: The process involves disconnecting the battery, removing the air intake and potentially the intake manifold, and then methodically unplugging every sensor, injector, and actuator connected to the harness. Each connection point must be carefully routed and reconnected with the new harness. There is a high risk of damaging other components or misrouting wires if not done correctly.
Typical Costs
The cost difference between new and used is significant, making a quality used harness an attractive option.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $1,800 - $2,800 |
| New Aftermarket | Generally not available |
| Used OEM | $175 - $500 |
| Shop Labor | $900 - $1,500 |
Frequently Asked Questions (FAQ)
How do I know if my 2018-2019 Odyssey has a 9-speed or 10-speed transmission?
The easiest way is to check your trim level. Touring and Elite models have the 10-speed automatic. LX, EX, and EX-L models have the 9-speed. The 10-speed also uses a push-button gear selector, while the 9-speed has a different electronic selector layout.
Can I repair my old engine harness instead of replacing it?
It depends on the damage. A single, easily accessible broken wire can sometimes be professionally repaired with a proper solder and heat-shrink seal. However, if the harness has widespread heat damage, brittleness, multiple broken wires, or rodent damage, replacement is the only reliable solution. Chasing intermittent faults in a failing harness can be more expensive in labor than simply replacing it.
What causes an engine harness to fail?
The most common causes are heat and vibration from the engine, which can make wires and plastic connectors brittle over time. Physical damage from improper service, accidents, or interference with moving parts can also break wires. Lastly, rodents chewing on the soy-based wire insulation is a known problem across many modern vehicles.
Why can't I find a new aftermarket engine harness?
Engine wiring harnesses are incredibly complex, with hundreds of wires and dozens of specific connectors unique to a vehicle's model, year, and options. The manufacturing complexity and low sales volume make it unprofitable for most aftermarket companies to produce them. This makes used OEM harnesses a primary repair option.
Helpful Videos
Technical Specifications

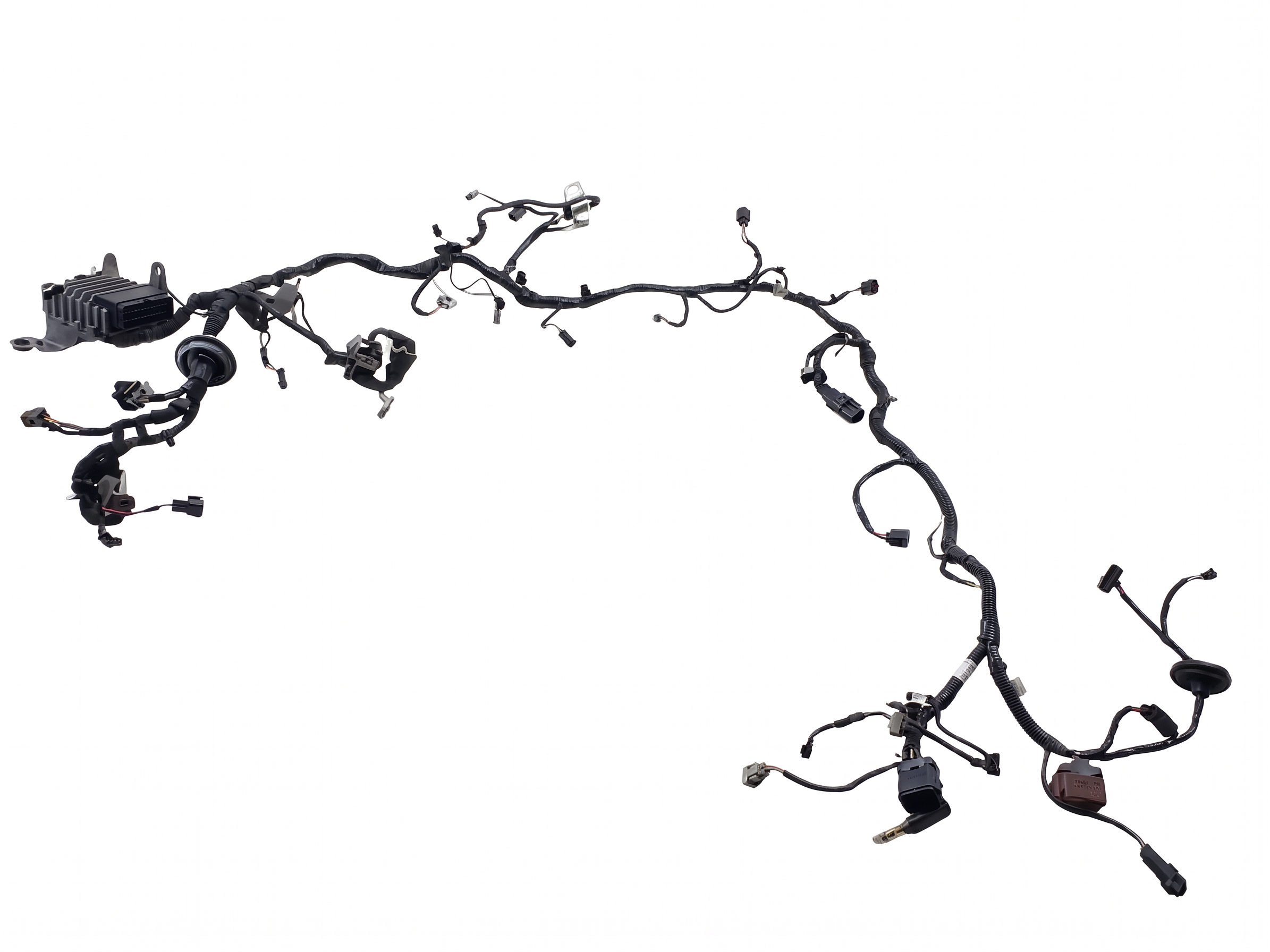

OEM Part Numbers: 32100-THR-A11 32100-THR-A42 32100-THR-AB0 32120-THR-A42
Fitment is specific to transmission type (9-speed vs. 10-speed) and trim level.
