2002 Ford Thunderbird Exhaust Muffler: Why the OEM Assembly is Discontinued and What to Do
This guide covers diagnosing, replacing, and finding a quality used OEM muffler assembly for your 2002 Thunderbird, a part that is no longer available new from Ford.
- The original Ford muffler assembly (1W6Z5230AA) for the 2002 Thunderbird is discontinued.
- The 2002 model year exhaust is unique; parts from 2003-2005 models will not fit.
- Your main replacement options are a high-quality used OEM assembly or an expensive aftermarket bolt-on system like the one from Borla.
- Rust is the primary cause of failure. When buying used, prioritize a part from a dry climate and inspect all welds and hangers carefully.
Symptoms of a Failing 2002 Thunderbird Muffler
A bad muffler on your Thunderbird will make itself known through several tell-tale signs. Because the original system is made from mild steel, rust is the most common cause of failure.
- Loud Roaring Noise: The most obvious symptom is a sudden increase in exhaust volume. A deep, loud roar or growl, especially during acceleration, points to a hole or crack in the muffler casing or its connecting pipes.
- Rattling or Banging Sounds: If you hear rattling, it's likely that the internal baffles or chambers inside the muffler have rusted and broken loose. A banging or knocking sound from under the car could mean a hanger has broken and the entire assembly is moving around.
- Visible Rust and Holes: A visual inspection can often confirm the problem. Look for flaking metal, rust-colored stains on the muffler body, and visible holes, especially along the welded seams.

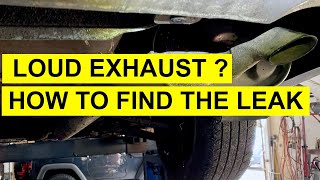

- Exhaust Fumes: If you smell exhaust fumes in or around the cabin, it could be a sign of a significant leak in the muffler assembly. This is a serious safety concern and should be addressed immediately. 🎬 Watch: How to identify and locate an exhaust leak
Warning: The 2002 model year uses a specific exhaust assembly. Parts from a 2003-2005 Thunderbird will not fit correctly. Always verify the part is for a 2002 model.
Known Issues, TSBs, and Recalls
There are no recalls or specific Technical Service Bulletins (TSBs) from Ford for the exhaust muffler assembly on the 2002 Thunderbird. The primary known issue is simply age-related corrosion. The original factory assembly is made of aluminized or mild steel, which is prone to rusting over time, especially in regions that use road salt in the winter. The welded hangers are a common point of failure due to rust.
Buying a Used 2002 Thunderbird Muffler Assembly: An Inspector's Guide
Since the original Ford part (1W6Z5230AA) is discontinued, a quality used OEM assembly is often the best choice for a direct, bolt-on replacement that maintains the original sound and fit. Aftermarket options either involve expensive full cat-back systems or require custom cutting and welding. Here’s what to inspect before buying a used one:
- Check for Rust Thoroughly: Surface rust is normal, but you must look for deep, flaking rust that weakens the metal. Pay close attention to the welded seams where the pipes meet the mufflers and where the hangers are attached. Use a small hammer or screwdriver to gently tap these areas; if it sounds soft or makes a crunching noise, the metal is weak.
- Inspect All Hangers: The assembly has several welded-on hangers that fit into rubber isolators on the car. Ensure every hanger is present, solid, and not bent or cracked at the weld. A broken hanger is a major red flag.
- Examine the Inlet Flanges: The front of the assembly has two flanges that bolt to the catalytic converters. Make sure these are flat, intact, and not severely corroded. The bolt holes should be round and solid.
- Look for Dents and Damage: Inspect the entire assembly for signs of impact, like crushed pipes or large dents in the mufflers. This can restrict exhaust flow and affect performance.
- Shake the Assembly: Vigorously shake the entire unit. If you hear any rattling or clanking, the internal baffles have failed, and the muffler is no good.
Pro Tip: Prioritize a part from a vehicle registered in a dry, southern climate. An assembly from Arizona or Texas will have significantly less rust and a much longer remaining lifespan than one from the Rust Belt.
Cost Comparison: Thunderbird Muffler Replacement
The discontinuation of the OEM part significantly impacts replacement costs. Your main choices are a high-end aftermarket system, a used OEM part, or custom work.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | N/A | Part #1W6Z5230AA is discontinued by Ford. |
| New Aftermarket (Bolt-on System) | $1,300 - $1,500 | Refers to the Borla stainless steel cat-back system (#140008). High quality but expensive. |
| New Aftermarket (Custom/Weld-in) | $200 - $500 (Parts Only) | This involves buying universal mufflers (e.g., MagnaFlow, Flowmaster) and having a shop cut out the old mufflers and weld in the new ones. Labor is additional. |
| Used OEM | $350 - $650 | Price varies based on condition and location. Offers original fit and sound without the high cost of a new system. |
| Shop Labor (for Assembly Swap) | $100 - $200 | Based on an estimated 1-2 hours of labor. May increase if bolts are seized and require cutting. |
Installation Overview & Difficulty
Replacing the entire rear muffler assembly is a bolt-on procedure, but it can be challenging due to the part's size and the potential for rusted hardware.

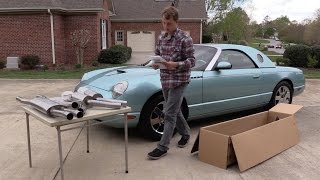

🎬 See this walkthrough for installing a Borla cat-back system- Difficulty: 3/5 (Moderate)
- Tools Needed: Ratchet and sockets, penetrating oil, pry bar for exhaust hangers, jack stands, and potentially a reciprocating saw or angle grinder with a cutting wheel for seized bolts.
- Procedure:
- Safely lift and support the rear of the vehicle.
- Generously spray the two bolts connecting the muffler assembly to the catalytic converters with penetrating oil. Let them soak.
- Use a pry bar to remove the rubber isolators from the exhaust hangers on the old assembly.
- Attempt to unbolt the assembly from the catalytic converters. If the bolts are seized, they will likely need to be cut off.
- With the help of a friend, lower the old assembly and remove it from under the car.
- Installation is the reverse of removal. Hang the new assembly on the rubber isolators first to support its weight, then bolt it to the catalytic converters using new gaskets and hardware.
Pro Tip: The large X-shaped structural brace under the middle of the car does NOT need to be removed to replace the rear exhaust assembly. The connection bolts are accessible just behind it.
Frequently Asked Questions (FAQ)
Can I replace just one side or one muffler?
Not with an OEM or direct-fit part. The original design is a single, welded assembly. To replace only one muffler, you would need to cut the old one out and have a universal muffler welded in its place by an exhaust shop.
Will a bad muffler cause a Check Engine Light?
Generally, no. The muffler is located after all the exhaust sensors. A failure in the muffler itself will not typically trigger a check engine light. However, a severe leak could potentially affect the readings of the rearmost oxygen sensors in some cases, but this is uncommon.
Is the Borla exhaust system worth the money?

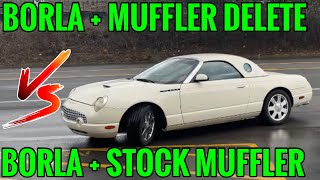

The Borla system is a popular, high-quality upgrade made from T-304 stainless steel, which will not rust like the original. It provides a more aggressive sound and is a direct bolt-on fit. If you plan to keep the car long-term and want an upgraded sound and durability, it is considered a good investment. 🎬 Hear the difference: Stock vs Borla exhaust sound comparison If you prefer the original sound and a lower cost, a good used OEM part is a better option.
What's the difference between the 2002 and 2003-2005 exhaust?
The mounting points and pipe configurations are different between the 2002 and later models. Aftermarket manufacturers like Borla sell a different part number for 2002 (#140008) than for 2003-2005 (#140081), confirming the incompatibility. You must use a part specified for the 2002 model year.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1W6Z5230AA
One-piece rear exhaust assembly including left and right mufflers, connecting pipes, and exhaust tips. Designed for the 3.9L V8 engine.
