Mazda3, CX-7, Mazda5 & RX-8 Exterior Door Handle: Why It Breaks and How to Replace It (2004-2017)

Symptoms of a Failing Exterior Door Handle

When the passenger-side exterior door handle on your 2004-2009 Mazda3, 2007-2012 Mazda CX-7, 2006-2017 Mazda5, or 2004-2009 Mazda RX-8 begins to fail, the symptoms are usually obvious and related to the physical feel and function of the handle.

• Loose or Sloppy Handle: The handle may feel loose and have excessive play when you lift it. It might not spring back to its resting position flush against the door.
• Handle Sticks Open: After opening the door, the handle may remain in the pulled-out position. This can prevent the door from latching properly when you try to close it.
• Handle Does Nothing: You can lift the handle, but it feels disconnected and the door doesn't unlatch. This usually indicates a complete break in the internal mechanism or the linkage rod has become disconnected.
• Visible Cracks or Broken Pieces: In severe cases, the handle itself will crack or a piece will break off entirely, often leaving a sharp edge. It's common for the plastic pivot point inside the door to fracture.

Known Issues, TSBs, and Recalls

While there are no official safety recalls from the National Highway Traffic Safety Administration (NHTSA) for this specific exterior door handle failure on the Mazda3, CX-7, Mazda5, or RX-8, the problem is widely documented by owners. Mazda has issued recalls for similar issues on other models, such as the 2009 Mazda6, where a sticking handle could prevent the door from latching. This indicates a pattern of using plastic components in handle mechanisms that may not withstand long-term use.

The failure is almost always due to the plastic fulcrum or pivot point inside the handle assembly cracking from stress and age. Once this piece breaks, the handle loses its leverage to pull the latch rod, rendering it useless.

Buying a Used Exterior Door Handle: What to Check

Purchasing a used OEM door handle is often the best value, as you get a genuine part that fits correctly and can be found in the correct factory color. However, since this part has a known failure point, careful inspection is critical.

1. Inspect the Pivot Points: This is the most important check. Look at the back of the handle assembly where the main handle piece connects and pivots. Check for any hairline cracks, stress marks (white-ish lines in the plastic), or previous repairs (like epoxy or glue) around the pivot and where the spring mounts. A handle with any signs of stress in this area should be avoided.
2. Test the Action: If possible, move the handle through its range of motion. It should feel smooth and spring back firmly. Any sloppiness or grinding sounds could indicate a worn-out spring or a pending failure.
3. Verify No Smart Key Button: Double-check that there is no rubber button on the handle surface. Handles for the advanced keyless system have different internal wiring and will not work on a standard system.
4. Check for Cosmetic Damage: Look for deep scratches, scuffs, or failing clear coat on the painted surface. Minor blemishes are expected on a used part, but ensure it's in acceptable condition for your vehicle.
5. Confirm the Side: Ensure you are buying the Right Hand (RH) or passenger-side handle. The driver-side handle is a different part and is not interchangeable.

Replacement Overview and Difficulty

Replacing the exterior door handle is a manageable DIY job for someone with basic tools and patience. The process involves removing the interior door panel to access the handle's mounting hardware.

• Difficulty: 3 out of 5
• Estimated Time: 1 - 1.5 hours
• Tools Needed: Phillips screwdriver, 10mm socket with extension, ratchet, plastic trim removal tools, and possibly a pick tool.

General Steps:

1. Roll the window all the way up.
2. Remove the screws holding the interior door panel, typically found in the armrest and behind the interior door handle latch.
3. Use a trim removal tool to carefully pry the door panel away from the door frame, releasing the plastic clips.
4. Disconnect the electrical connectors for the window/lock switch and the cables for the interior handle and lock.
5. Peel back the plastic vapor barrier or remove an access cover to see inside the door structure.
6. Locate the two 10mm nuts or bolts that secure the exterior handle assembly. One is usually visible through an access hole, and the other is near the latch mechanism.
7. Remove the bolts and carefully maneuver the old handle assembly out of the door. You may need to disconnect a linkage rod first.
8. Installation is the reverse of removal. Be careful not to drop the bolts inside the door.

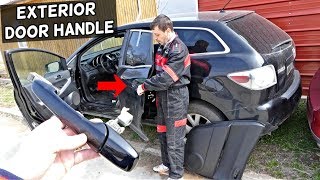

Vehicle-Specific Note: On the Mazda CX-7, the procedure can be more complex, sometimes requiring the removal of the larger inner panel that holds the window regulator to gain proper access.

Cost Comparison

Prices can vary based on color, condition, and supplier. This table provides a general estimate.

Frequently Asked Questions (FAQ)

Compatible Part Numbers

The following OEM part numbers are associated with this handle type across the listed vehicles. Always verify fitment for your specific vehicle by its VIN with a parts supplier.

• EG2258410B
• FE87-58-410C
• FE87-58-410E-12
• GJ6A58410H08
• GJ6E58410K08
