2019-2024 Ram 6.7L Cummins Air Flow Meter: Solving P0101, Stalling, and Poor MPG

Symptoms of a Failing Air Flow Meter

A dirty or failing air flow meter on your 2019-2024 Ram 2500, 3500, 4500, or 5500 can cause a range of issues, from subtle to severe. Because the sensor's data is so crucial, even a small error can have a noticeable impact on drivability.

• Check Engine Light: This is the most common symptom. The ECM will store Diagnostic Trouble Codes (DTCs), most frequently P0101 (MAF Circuit/Performance Malfunction). You may also see codes like P0171 (System Too Lean) or P0174 (System Too Lean) if the sensor is under-reporting airflow.
• Poor Drivability: You might experience hesitation, jerking, or surging, especially during acceleration as the engine struggles with an incorrect air-fuel mixture.
• Rough Idle or Stalling: The engine may idle erratically or even stall, particularly when coming to a stop or right after starting.
• Reduced Fuel Economy: If the sensor incorrectly tells the ECM that more air is entering the engine than actually is, the computer will inject excess fuel, causing your MPG to drop.
• Black Exhaust Smoke: This is a clear sign of a rich fuel mixture (too much fuel, not enough air), often caused by a faulty MAF sensor over-reporting airflow.
• Loss of Power: In some cases, a failing sensor can cause the truck to enter a reduced-power "limp mode" to protect the engine and emissions components.

Diagnosing the Issue

A P0101 code doesn't automatically mean you need a new sensor. Often, the issue is contamination or a problem elsewhere in the intake system. Follow these steps to diagnose the problem before buying a replacement part.

1. Check the Air Filter: A severely clogged air filter can restrict airflow and trigger a P0101 code. Inspect the filter and replace it if it's dirty.
2. Inspect for Intake Leaks: Any air that enters the engine *after* the MAF sensor is unmetered and can cause the engine to run lean, triggering codes. Use a smoke machine to check for leaks in the intake tubing, boots, and at the charge air cooler connections. A loose clamp is a common culprit.
3. Clean the MAF Sensor: Oil from aftermarket air filters, dust, and other debris can coat the sensor's delicate wires, causing incorrect readings. Cleaning it is a simple and effective first step.

How to Clean the Air Flow Meter

1. Locate the sensor on the air intake tube, right after the air filter housing.
2. Disconnect the negative battery terminal.
3. Unplug the electrical connector from the sensor.
4. Remove the two screws (typically Torx or Allen head) holding the sensor in place and carefully lift it out.
5. Generously spray the sensor's wires and housing with MAF sensor cleaner (10-15 sprays).
6. Let the sensor air dry completely for several minutes. Do not wipe it or use compressed air.
7. Reinstall the sensor, plug in the connector, and reconnect the battery.

Buying a Used Fuel Injection Air Flow Meter

If cleaning the sensor and checking for intake leaks doesn't solve the problem, a replacement is likely needed. A used OEM sensor can be a reliable and cost-effective alternative to an expensive new part, especially when compared to cheap aftermarket options that may have questionable accuracy.

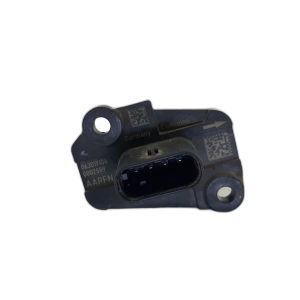

• Verify Part Numbers: The most reliable way to ensure compatibility is to match the part number on your old sensor. Key Mopar numbers are 68444077AA and its successor 68334657AA. The Cummins part number is 4359052. Part number 68444077AA is known to supersede older versions like 68206023AB, 68244577AA, and 68253199AA.
• Physical Inspection: When inspecting a used sensor, look for any physical damage to the housing or electrical connector. Check the connector pins to ensure they are straight and free of corrosion. While you can't see the internal wires perfectly, avoid any sensor that looks like it's been physically tampered with or has obvious signs of oil contamination.
• Connector Match: While most sensors for this platform are the same, always visually compare the electrical connector on the used part to your original to guarantee a perfect match.
• Why Used OEM is a Good Choice: The MAF sensor is a precision instrument. OEM Mopar and Cummins sensors are built to strict specifications for accuracy and durability. Many new aftermarket sensors, especially low-cost ones, can be poorly calibrated out of the box, leading to persistent performance issues or check engine lights. A low-mileage used OEM sensor is often a more reliable choice than a new, unproven aftermarket part.

Replacement Procedure & Difficulty

Replacing the air flow meter is a straightforward job suitable for a DIY mechanic of any skill level.

• Difficulty: 1 out of 5
• Estimated Time: 10-15 minutes
• Tools Needed: Screwdriver or small ratchet with a Torx or Allen socket (typically T20 or 3mm Allen).

The process is identical to the cleaning procedure, simply without the spraying step. Unplug the old sensor, unbolt it, install the new sensor, and reconnect the electrical harness. Ensure the new sensor is seated correctly with its O-ring seal before tightening the screws. Do not overtighten the small mounting screws.

Cost Comparison

Frequently Asked Questions (FAQ)

Known Issues & Vehicle Specifics

The Fuel Injection Air Flow Meter is used across the entire heavy-duty lineup, including the Ram 2500, Ram 3500, Ram 4500, and Ram 5500, as long as they are equipped with the 6.7L Cummins Turbo Diesel engine for model years 2019 through 2024. There are no known differences in the part or its replacement procedure across these different models. The primary known issue is not with the sensor itself failing, but with it becoming contaminated or being affected by intake system leaks, leading to inaccurate readings and fault codes.
