2003 Dodge Ram 1500 Fuel Pump: The 5.7L & 26-Gallon Tank Compatibility Trap
This guide covers the critical compatibility details, failure symptoms, and replacement costs for the 2003 Dodge Ram 1500 fuel pump.
- This fuel pump ONLY fits 2003 Ram 1500s with the 5.7L V8 and the 26-gallon fuel tank (6'3" bed).
- A long crank time before starting is the most common early symptom of failure, often due to a bad check valve.
- A quality used OEM pump is often a more reliable choice than a cheap new aftermarket unit.
- There are no fuel pump-specific recalls, but there is an urgent 'DO NOT DRIVE' recall for Takata airbags on this truck.
Compatibility: The Most Important Check
Critical Warning: This fuel pump assembly (OEM part numbers 05086278AA, 05086278AB, 05086278AC, 05086278AD) is specifically for 2003 Dodge Ram 1500 models equipped with the 5.7L V8 HEMI engine AND the 26-gallon fuel tank. The 26-gallon tank is typically found on models with the 6' 3" short bed. It will NOT fit models with the 3.7L V6, 4.7L V8, or any truck equipped with the larger 35-gallon fuel tank (usually found on 8' long bed models). Always verify the donor vehicle's engine and tank size before purchasing a used part.
Symptoms of a Failing Fuel Pump
A failing fuel pump rarely dies without warning. Recognizing the early symptoms can prevent you from being stranded. Here are the most common signs:
- Long Crank Time: The engine takes several seconds of cranking to start, especially after sitting for a while. This can be caused by a weak pump or a faulty check valve within the pump assembly that allows fuel pressure to bleed off. Cycling the key from 'Off' to 'On' a few times before cranking can help prime the system and may result in a quicker start, which points toward a fuel pump issue.
- Engine Stalling or Sputtering: The truck may stall unexpectedly, especially under load or in warm weather. It might feel like it's running out of gas, even with a full tank. This happens when the pump overheats or can't supply enough fuel to meet the engine's demand.
- Loss of Power: You may notice sluggish acceleration, hesitation, or a general lack of power, particularly when going uphill or towing. The engine is being starved of the extra fuel it needs under load.
- Whining Noise from Fuel Tank: A loud whining or buzzing sound coming from the rear of the truck, near the fuel tank, is a classic sign of a struggling fuel pump motor.
- No-Start Condition: The engine will crank over but will not fire up. If you've confirmed you have spark, a lack of fuel is the next logical cause. You may notice you cannot hear the pump prime 🎬 Watch this quick test for a crank but no start condition. (a brief hum from the tank) when you first turn the key to the 'On' position.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While there are no specific recalls or TSBs directly for fuel pump failure on the 2003 Ram 1500 5.7L gasoline engine, it's important to be aware of related issues.
- No Fuel Pump-Specific Recalls: Searches of the National Highway Traffic Safety Administration (NHTSA) database did not reveal any recalls for the fuel pump on this specific model.
- Major Airbag Recall: It is critical to note that the 2003 Dodge Ram 1500 is under a major, urgent "DO NOT DRIVE" recall for defective Takata airbag inflators, which can rupture and cause serious injury or death. While unrelated to the fuel pump, every owner must verify this free repair has been performed.
- Fuel System TSBs for Other Models: There are TSBs related to fuel systems, but they apply to diesel models or address issues like fuel gauge fluctuation on different Chrysler vehicles, not pump failure on the 2003 Ram 1500.
Buying a Used Fuel Pump Assembly
A recycled OEM fuel pump can be a reliable and cost-effective alternative to expensive new parts, especially when compared to lower-quality aftermarket units. Here’s what to look for:
- Verify Compatibility: This is the most critical step. Confirm the donor vehicle was a 2003 Ram 1500 with a 5.7L engine and a 26-gallon tank. Ask the seller for the VIN or part number if possible and cross-reference it with the known OEM numbers (05086278AA, AB, AC, AD).
- Inspect the Electrical Connector: Check the pins on the top of the pump assembly. They should be clean and free of any green or white corrosion. Burned or melted pins indicate a bad connection that likely caused the original pump to fail or could cause issues with your truck.
- Check the Plastic Housing: Inspect the entire plastic module for cracks, especially around the hose connections and the mounting flange. Shipping or rough handling can easily damage these units.
- Ask About Mileage: While not always possible, try to get a pump from a lower-mileage vehicle. Fuel pumps are wear items, so lower mileage generally means more remaining service life.
- Why Used OEM is Often Better: The original Mopar/Delphi fuel pumps were built to a high standard. Many cheap aftermarket pumps use inferior motors, sending units, and plastic that can fail prematurely, cause inaccurate fuel gauge readings, or not fit correctly. A quality used OEM part often provides better longevity and reliability than a new, non-OEM part.
Replacement Overview
Replacing the fuel pump is a moderately difficult job that requires some mechanical skill and proper safety precautions. The fuel tank must be accessed from below the truck.
- Difficulty: 4 out of 5.
- Estimated Time: 2.5 - 4 hours.

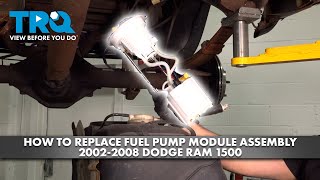

- Procedure: The only way to access the pump is by dropping the fuel tank. This involves safely draining the fuel, disconnecting the filler neck, vent lines, electrical connector, and fuel line, then supporting the tank while removing the two mounting straps. Lifting the truck bed is not a viable option 🎬 See a complete walkthrough of the fuel pump module replacement. on this model.
Pro Tip: It is much easier and safer to perform this job when the fuel tank is as empty as possible. A tank full of gasoline is extremely heavy and hazardous.
Cost Comparison
Prices can vary significantly based on supplier and location. The following is an estimated breakdown:
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $785 - $1000+ |
| New Aftermarket (Delphi, Bosch, etc.) | $200 - $650 |
| Used OEM (Recycled) | $50 - $150 |
| Shop Labor Cost | $244 - $358 |
Frequently Asked Questions (FAQ)
Why does my truck take so long to start?
A long crank time is a classic symptom of a failing fuel pump check valve. The check valve is supposed to hold pressure in the fuel line when the engine is off. When it fails, the pressure bleeds away, and the pump has to re-pressurize the entire system every time you start the truck. Cycling the key to the 'On' position for a few seconds, then 'Off', then 'On' again before cranking can often build pressure and make it start faster, confirming the issue.
Can I just replace the motor instead of the whole assembly?
While it is sometimes possible to buy just the internal pump motor, it is not recommended. The fuel pump assembly is a complete unit that includes the housing, pressure regulator, and fuel level sender. These other components can also fail. Replacing the entire module is more reliable and ensures all parts are new or in good working order, preventing you from having to do the job twice.

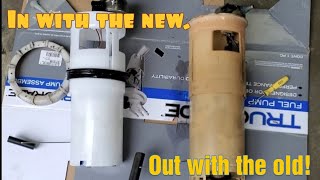

🎬 Watch a DIY guide on replacing the 2003 Ram fuel pump.How do I know if I have the 26 or 35-gallon tank?
The easiest way is to check your truck's configuration. The 26-gallon tank is typically on Regular Cab or Quad Cab models with the 6' 3" short bed. The 35-gallon tank is usually found on trucks with the 8' long bed. You can also check your original window sticker or build sheet if you have it.
My fuel gauge is acting weird. Is that the fuel pump?
Yes, it's very likely. The fuel level sending unit, which controls the gauge, is part of the fuel pump assembly. An erratic or inaccurate fuel gauge is a common failure and requires replacing the entire fuel pump module to fix.
Helpful Videos
Technical Specifications
OEM Part Numbers: 05086278AA 05086278AB 05086278AC 05086278AD
Fits 2003 Dodge Ram 1500 with 5.7L V8 Engine and 26-Gallon Fuel Tank.
