2018-2025 Alfa Romeo Stelvio Fuse Box & BCM: A Guide to Proxi Alignment, Cloning, and Electrical Faults
This in-depth guide explains why replacing the fuse box (Body Control Module) in your Stelvio is not a simple swap and what you must know about programming to avoid a no-start situation.
- The Stelvio's main fuse box is an integrated Body Control Module (BCM) that MUST be programmed after installation.
- A replacement BCM requires a "Proxi Alignment" procedure to work. A flashing odometer is the sign this is needed.
- Consider a "cloning service" which copies your old BCM's data to a used unit, making it plug-and-play.
- Early (2018-2019) models had recalls for BCM software and are known for water leaks that can destroy the module.
Symptoms of a Failing Stelvio Body Control Module
A failing Body Control Module (BCM) in an Alfa Romeo Stelvio rarely causes a single, isolated issue. Instead, it often produces a variety of strange, seemingly unrelated electrical problems that can be confusing to diagnose. Because the BCM is the hub for so many systems, a fault within it can cascade across the vehicle.
- Widespread Electrical Gremlins: The most common sign of BCM failure is the erratic behavior of multiple electronic components. This can include headlights or interior lights turning on and off by themselves, windshield wipers activating randomly, or power windows and locks ceasing to function.
- Parasitic Battery Drain: A classic symptom is a battery that repeatedly dies, often overnight. A faulty BCM may fail to let other electronic modules go to sleep when the car is turned off, causing a slow but persistent drain on the battery. 🎬 Watch: A simple way to test for parasitic battery draw.
- Dashboard Warning Lights: You may see a cluster of unrelated warning lights for systems like ABS, airbags, or the security system appear and disappear intermittently. This happens because the BCM is failing to communicate correctly with the modules for those systems.
- Starting and Security Issues: The BCM is a key part of the vehicle's immobilizer system. A failure can prevent the key fob from being recognized, leading to a no-start condition even if the battery and starter are healthy.
- Flashing Odometer: While not a failure symptom itself, a flashing odometer is a definitive sign that the BCM is not correctly aligned with the other modules in the car. This will always occur after a new or used BCM is installed until it is properly programmed. 🎬 See how to fix a flashing odometer using the MES procedure.
Known Issues, Recalls, and Technical Service Bulletins
Several official communications from Alfa Romeo address issues related to the BCM and surrounding electrical systems, particularly in early model years.
Recall: NHTSA 19V-551 / Alfa Romeo V84 - Inaccurate Fuel Gauge
For certain 2018-2019 Stelvio models, the BCM software may display an incorrect fuel level, showing more fuel than is actually in the tank. This could cause the vehicle to run out of fuel unexpectedly, increasing the risk of a crash. The remedy is a software update performed by a dealer.
Recall: Water Intrusion and Corrosion
Early production 2018 Stelvio models were subject to recalls related to water leaks. One recall (NHTSA 18V203) addressed water entering rear liftgate wiring. More critically, another issue was identified where water could leak past the A-pillar seals and directly onto the Body Control Module and its connectors, causing corrosion and widespread electrical failure. Any signs of water damage or corrosion on a BCM or its wiring harness are a major red flag.
Warning: A flashing odometer is the vehicle's way of telling you a "Proxi Alignment" is required. This means a new or replaced module is not recognized by the network. The vehicle may not start or run properly until this procedure is completed.
Programming and Calibration: The Proxi Alignment
A replacement BCM for an Alfa Romeo Stelvio is NOT a plug-and-play part. It absolutely requires programming to function. This critical step is called a "Proxi Alignment" (or Proxy Alignment). This procedure uses diagnostic software to introduce the new module to the vehicle's CAN network, allowing it to communicate with the Engine Control Module (ECM), ABS module, and all other onboard computers.
There are three main paths to getting this done:
- Dealer Service: An Alfa Romeo dealership can perform a Proxi Alignment using their proprietary WiTech diagnostic tool. This is the most straightforward but often most expensive option.
- Independent Shop / DIY: An advanced independent mechanic or a knowledgeable DIYer can perform the Proxi Alignment using software like Multiecuscan (MES) paired with a Windows laptop and specific OBD2 adapter cables. 🎬 Watch: How to perform a Proxi Alignment easily with AlfaOBD. This is more cost-effective but requires the correct tools and technical knowledge.
- BCM Cloning Service: This service is an excellent option when buying a used part. You send your original (faulty) BCM and the replacement used BCM to a specialist. They transfer all the critical data—including the VIN, immobilizer codes, and vehicle-specific configuration—from your old module to the replacement. The result is a plug-and-play module that does not require a Proxi Alignment.
Pro Tip: If you opt for a Proxi Alignment instead of cloning, the procedure may reset other modules, like the ABS. This can trigger new warning lights and require additional calibration steps for things like the steering angle sensor.
Buying a Used Stelvio Fuse Box / BCM
Purchasing a used BCM can offer significant savings, but it's crucial to do it right to avoid creating a bigger problem. Given the complexity and programming requirements, this is a part where careful purchasing is key.
- Match the Part Number EXACTLY: There are different BCM versions based on the vehicle's options and features. The part number on the replacement unit MUST perfectly match the number on your original module. The primary OEM part number to look for is 503442021003, but always verify against your specific unit.
- Inspect for Physical Damage: Carefully examine the used BCM for any signs of physical damage, especially corrosion. Due to known water leak issues on early models, check the case and all connector pins for any white or green crust, which indicates water damage and means the part should be rejected.
- Factor in Programming Costs: A cheap used BCM is not a good deal if you haven't planned for the cost of programming or cloning. Before you buy, get a quote from a local shop that can perform a Proxi Alignment or identify a cloning service you plan to use.
- Why Used OEM is a Good Choice: Unlike some mechanical parts, the BCM is a complex electronic device. A used OEM module, when properly cloned or programmed, is often more reliable than a new, unproven aftermarket version. It is designed specifically for your vehicle's intricate systems.
Cost Breakdown
Prices can vary based on location and availability. The following are estimates to help you budget for the repair.
| Part or Service | Estimated Cost |
|---|---|
| New OEM BCM (Part Only) | $600 - $900+ |
| Used OEM BCM (Part Only) | $100 - $250 |
| BCM Cloning Service | $150 - $300 |
| Shop Labor (Replacement & Proxi Alignment) | $250 - $450 |
Frequently Asked Questions (FAQ)
Can I just swap the fuse box from another Stelvio?
No. Due to the integrated immobilizer and vehicle-specific coding, a BCM from another vehicle will not work without being reprogrammed (via Proxi Alignment) or having your original module's data cloned onto it. A direct swap will cause a flashing odometer and likely a no-start condition.
My odometer is flashing. Is my BCM bad?
Not necessarily. A flashing odometer is the specific indicator that a Proy Alignment is needed. This happens any time a major control module is replaced or disconnected, or if it loses its configuration. If you haven't replaced any parts, it could indicate a communication failure, but it's primarily a programming-related symptom.
Where is the BCM / main fuse box located in the Stelvio?

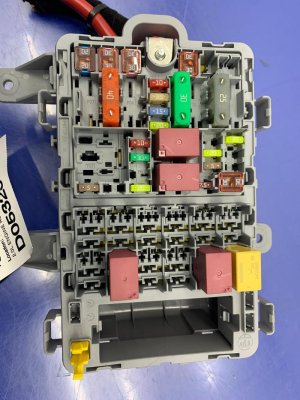

The main BCM is typically located inside the vehicle, under the dashboard, often in the driver's or passenger's footwell area. Access usually requires removing lower dash panels. There are also simpler, secondary fuse and relay boxes in the engine bay and in the trunk.
Can a locksmith program a new BCM for my Stelvio?
It depends on the locksmith. A standard locksmith cannot. However, a specialized automotive locksmith with advanced diagnostic tools and software (like Multiecuscan or Autel) may be able to perform the Proxi Alignment. It is best to call and confirm they have experience with Alfa Romeo or Stellantis vehicles specifically.
Helpful Videos
Technical Specifications
OEM Part Numbers: 503442021003

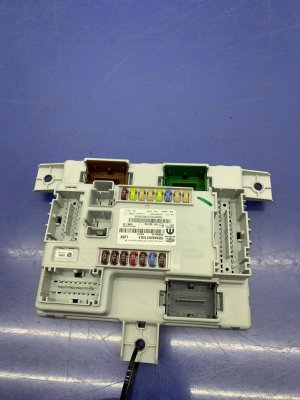

The main interior fuse box is an integrated Body Control Module (BCM). There are also auxiliary fuse and relay centers in the engine compartment and trunk.
