2012 Chevrolet Volt & Opel Ampera Underhood Fuse Box: Solving Electrical Gremlins
This guide covers the diagnosis and replacement of the main underhood fuse box, a common source of confusing electrical problems in the 2012 Chevrolet Volt and Opel Ampera.
- The underhood fuse box for the 2012 Volt and Ampera does NOT require dealer programming, making a used part a simple, cost-effective solution.
- Symptoms of failure are often confusing, including intermittent electrical issues, multiple warning lights, and a dead 12V battery.
- Before blaming the fuse box for a dead battery, try pulling fuse F9 for the OnStar module, a known cause of parasitic draw.
- The correct OEM part number is 23142124, which supersedes 20889114. Always verify the part number before purchasing.
Symptoms of a Failing Underhood Fuse Box
A bad fuse box can cause some of the most confusing and frustrating electrical problems. Because it supplies power to so many different components, symptoms can be widespread and seem unrelated. Watch for these common signs in your 2012 Chevrolet Volt or Opel Ampera.
1. Intermittent Electrical Problems
This is the most common symptom. You might notice that your radio cuts out, your dashboard lights flicker, or your power windows work one minute and not the next. These issues may come and go with no clear pattern. This often points to a poor connection or corrosion inside the fuse box itself, where the main electrical pathways are compromised.
2. Phantom 12V Battery Drain
If your 12V auxiliary battery repeatedly dies after the car sits for a day or two, you may have a parasitic draw. While many things can cause this, a faulty fuse box or a stuck relay within it can fail to shut down a circuit when the car is off. A well-documented issue on the 2012 Volt is a parasitic draw caused by the OnStar module failing to power down. Before replacing the fuse box, try this simple test:
- Locate the instrument panel fuse box on the driver's side.
- Pull fuse F9, which powers the OnStar/telematics module.
- If the battery drain stops, the issue is with the OnStar module, not the main fuse box.
3. Multiple Unrelated Warning Lights or DTCs
When the fuse box fails to provide stable voltage to various control modules, those modules can get confused and throw error codes. You might see warnings for the ABS, airbags, and check engine light all at once. A scan tool might show a host of communication errors (U-codes) or voltage-related codes. This happens because the modules aren't receiving the clean power they need to operate correctly.
4. Complete No-Start Condition
In severe cases, the main fuse box can fail completely, preventing power from reaching the essential systems needed to start the car. If you turn the key and get nothing—no lights, no sounds, and the vehicle is completely dead—it could be a catastrophic failure of the fuse box or its main connections. However, always check the 12V battery first, as its failure produces the exact same symptom.
Is It Your Fuse Box or the BECM? The Volt has another critical module called the Battery Energy Control Module (BECM). On some model years, a failing BECM can cause symptoms like a sudden loss of propulsion or a no-start condition, which can be mistaken for a fuse box issue. If you experience a loss of power *while driving*, it is more likely to be related to the high-voltage system and its controllers like the BECM, rather than the 12V underhood fuse box.
Buying a Used Underhood Fuse Box
For the 2012 Volt and Ampera, a used OEM fuse box is an excellent choice. New aftermarket versions of the complete assembly are generally not available, making a quality recycled part a great value. Here’s what you need to know.
Good News: No Programming Required!
This is the most important takeaway. Unlike many modern electronic modules, the underhood fuse block in the 2012 Chevrolet Volt and Opel Ampera is a passive power distribution unit. It does not contain a computer and does not need to be programmed or coded to your vehicle's VIN. It is a direct plug-and-play replacement. This makes a used unit a perfect fit for DIYers and independent shops, saving you a trip to the dealer.
How to Inspect a Used Fuse Box
When buying a used fuse box, a visual inspection is key. Look for:
- No signs of water intrusion: Check the connectors and the base of the box for any white or green chalky residue, which indicates corrosion from water damage.
- No melted plastic: Inspect the sockets for individual fuses and relays. Any melting or discoloration indicates a past short circuit or severe overload that has compromised the box.
- Intact connector pins: Look at all the electrical pins in the connectors. They should be straight, clean, and free of corrosion.
- Verify the Part Number: The most common part number for the 2012 underhood fuse block is 23142124, which replaced the earlier number 20889114. Ensure you are getting the correct part for your vehicle.
Pro Tip: A used fuse box may not come with all the fuses and relays, or they may not match your vehicle's specific options. It is best practice to carefully transfer all the fuses and relays from your old fuse box to the new one. This ensures all circuits are protected with the correct amperage rating specified for your car.
Cost to Replace a 2012 Volt / Ampera Fuse Box
Replacing the underhood fuse box is relatively inexpensive, especially if you use a recycled OEM part.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $60 - $100 | Sourced from a GM dealership. Part number 23142124. |
| Used OEM | $75 - $175 | A great value. Sourced from a professional auto recycler. Prices vary by condition and included components. |
| New Aftermarket | Not Available | Complete aftermarket fuse box assemblies for this vehicle are not commonly available. |
| Shop Labor | $100 - $200 | Replacement is straightforward and should take a professional mechanic 1-1.5 hours. |
Frequently Asked Questions (FAQ)
Does the 2012 Volt underhood fuse box need to be programmed?
No. The main underhood fuse box does not require any dealer programming or VIN flashing. It is a plug-and-play part, making a used unit an ideal replacement.
Where is the underhood fuse box located on the 2012 Chevrolet Volt?
It is located in the engine compartment on the driver's side, near the 12V battery. It is a black plastic box with a cover that is held on by clips.
How many fuse boxes are in a 2012 Volt or Ampera?
There are four fuse boxes in total: the main one under the hood, one on the driver's side of the dashboard, one on the passenger's side of the dashboard, and one in the rear cargo area on the left side.
My car is completely dead. Is it the fuse box?
While it's possible, it's much more likely that your 12-volt auxiliary battery has failed or is discharged. Before suspecting the fuse box, have your 12V battery tested. A dead 12V battery will prevent the car's computers and high-voltage systems from activating, making the car appear completely dead.

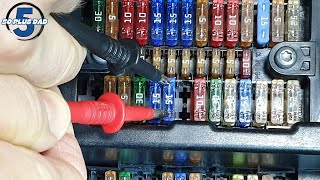

Helpful Videos
Technical Specifications
OEM Part Numbers: 23142124 20889114
Houses a variety of mini fuses, J-case fuses, and relays. Main power distribution hub for 12V systems.
