2019-2024 Ranger & 2021-2024 Bronco Engine Fuse Box: Decoding the Many Variations
This guide covers the common failures, replacement costs, and critical compatibility differences for the engine compartment fuse box, also known as the Battery Junction Box (BJB), in the Ford Ranger and Bronco.
- You MUST match the OEM part number from your original fuse box exactly due to numerous variations for 4x4, RWD, auxiliary switches, and other options.
- This part is generally plug-and-play and does NOT require dealer programming after installation.
- Water intrusion leading to corrosion is a primary cause of failure; always inspect a used unit for any signs of moisture damage.
- Symptoms of failure are often widespread and confusing, including multiple unrelated electrical issues, no-start conditions, and flickering lights.
Vehicle Fitment and Part Number Variations
The single most critical aspect of replacing the engine fuse box on a 2019-2024 Ford Ranger or 2021-2024 Ford Bronco is ensuring you get the exact correct version for your vehicle's specific configuration. Ford uses many different BJB variations that look similar but have different internal wiring and relay setups. Installing the wrong one can lead to major electrical problems or features not working.
Warning: You must match the OEM part number from your original fuse box. There is no reliable way to determine the correct box by VIN alone. Physical inspection of the part number on the original unit is required.
Key Compatibility Differences
- Ford Ranger (2019-2024): The primary differences are between Rear-Wheel Drive (RWD/4x2) and Four-Wheel Drive (4x4) models. They use physically different fuse boxes to accommodate the 4x4 system's electronics. Additionally, models with different options like parking sensors or towing packages may have unique BJB variations.
- Ford Bronco (2021-2024): The main variation depends on whether the vehicle is equipped with the factory overhead auxiliary switches. Models without the auxiliary switches use a different BJB than those with them. Engine size (2.3L vs. 2.7L/3.0L) can also determine the correct part number.
Always check the part number on your original fuse box lid 🎬 Watch: Locate and identify your fuse box and relay layout or side before ordering a replacement.
Common Symptoms of a Failing Fuse Box
A failing Battery Junction Box can cause some of the most confusing and difficult-to-diagnose electrical problems. Because it controls so many different circuits, symptoms can be widespread and seem unrelated.
- Multiple Unrelated Electrical Failures: This is the most common sign. You might experience issues like the radio not working, power windows failing, and the HVAC blower cutting out all at once.
- Engine No-Crank / No-Start: The BJB contains the primary fuses and relays for the starter motor, fuel pump, and engine computer. A failure within the box can prevent the engine from cranking or starting.
- Flickering Lights and Gauges: Intermittent power loss to the instrument cluster or exterior lights can be caused by a poor connection or corrosion inside the fuse box.
- Visible Corrosion or Melting: Water intrusion is a common cause of failure. Popping the cover off and seeing white or greenish corrosion on the terminals or bus bars is a clear sign the BJB needs replacement. In severe cases, a short circuit can cause plastic to melt or smell like it's burning.
- Specific Systems Inoperative: Sometimes a failure is isolated to a single circuit within the box that can't be fixed by just replacing a fuse. 🎬 See how to check and fix a blown fuse properly For example, the cooling fans may not turn on, or the headlights might not work, even with good fuses and relays.
- Diagnostic Trouble Codes (DTCs): While the BJB itself may not set a specific code, its failure often leads to a cascade of communication codes (U-codes) and codes related to loss of power in other modules. Common codes include those for loss of communication with the BCM (Body Control Module) or PCM (Powertrain Control Module).
Known Issues, TSBs, and Recalls
As of early 2026, there are no widespread recalls specifically for the engine fuse box on the 2019-2024 Ranger or 2021-2024 Bronco in the North American market. However, owners on forums have reported various electrical issues that were eventually traced back to the BJB.
- Water Intrusion: Like many engine bay electrical components, the BJB can be susceptible to damage if water gets past the cover's seal. This can be due to a damaged cover, deep water crossings, or even pressure washing the engine bay. Corrosion from moisture is a primary cause of failure.
- Loose Connections: Some Bronco owners have reported finding the entire fuse box assembly loose from its mounting bracket, leading to intermittent electrical faults and communication errors between modules.
- Internal Failures: In some cases, the internal connections or bus bars within the fuse box can fail, causing an open circuit that mimics a blown fuse but cannot be repaired.
Programming and Installation
The engine compartment Battery Junction Box on these Ford models is generally considered a non-programmed module. This means that in most cases, a replacement does not require special programming or flashing to work with the vehicle. The unit's configuration is hard-wired internally based on the part number.
Pro Tip: While the BJB itself doesn't need programming, it's a good practice to disconnect the vehicle's battery for at least 15 minutes before starting the replacement. After installing the new unit and reconnecting the battery, you may need to reset features like power window auto-up/down or the radio presets.
Replacement is generally straightforward, involving disconnecting the battery, removing the main power cables attached to the BJB, releasing the mounting tabs, and swapping the unit. However, accessing the lower level of fuses or the mounting tabs 🎬 Watch: Guide to fuse box locations and diagrams for 2020-2023 models can be difficult.
Buying a Used Fuse Box
A used OEM fuse box is an excellent, cost-effective alternative to a new part from the dealer. However, careful inspection and verification are essential to ensure you get a good, compatible part.
- Match the Part Number EXACTLY: This is the most important rule. Find the Ford engineering number (e.g., KB3T-14D068-AA) on your original unit and match it precisely. Do not rely on visual comparison alone.
- Inspect for Corrosion: Remove the top cover and carefully inspect all terminals, pins, and fuse sockets. Look for any signs of white, green, or blue powdery corrosion. Do not buy a unit with any signs of water damage.
- Check for Heat Damage: Look for any melted plastic around the fuse sockets or on the main power terminals. This indicates a past short circuit and the unit should be avoided.
- Verify the Donor Vehicle: If possible, confirm the year, model, and key options (4x4, aux switches, etc.) of the vehicle the used part came from. This provides a second layer of verification that it's the correct version for your needs.
- Fuses and Relays: Most used fuse boxes will come with the fuses and relays that were in it. However, it is best practice to inspect every fuse and test every relay or swap them over from your old unit if you know they were good. Used parts do not typically include any warranty on the fuses or relays themselves.
Cost Comparison
Prices for a new OEM Battery Junction Box can be high, making a quality used part a very attractive option.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $250 - $520 | Price varies significantly depending on the specific part number. |
| New Aftermarket | $150 - $300 | Availability is limited and quality can be inconsistent. OEM is generally recommended for this critical part. |
| Used OEM | $75 - $250 | Offers the best value, providing an original quality part at a significant discount. |
| Shop Labor | $100 - $250 | Typically 1-2 hours of labor. |
Frequently Asked Questions (FAQ)
Does this fuse box need to be programmed by a dealer?
No, the engine compartment Battery Junction Box (BJB) for these vehicles does not typically require programming. It is a plug-and-play component, provided you install the one with the exact same part number as your original.
Can I use a fuse box from a Ranger in a Bronco, or vice-versa?
Only if the OEM part number is an exact match. While they are based on the same platform, the different options and wiring harnesses mean that most Ranger and Bronco fuse boxes are not directly interchangeable.
What's the difference between the engine fuse box and the one in the passenger compartment?
The engine fuse box (BJB) handles high-current circuits for major vehicle systems like the engine, starter, and cooling fans. The passenger compartment fuse box handles lower-current interior circuits like the radio, interior lights, and power outlets.
Do used fuse boxes come with fuses and relays?
Generally, yes. Recycled fuse boxes are typically sold complete with the fuses and relays that were installed in them. However, it's always a good idea to inspect them and transfer your known-good relays and fuses from your old box as a precaution.
Helpful Videos
Technical Specifications

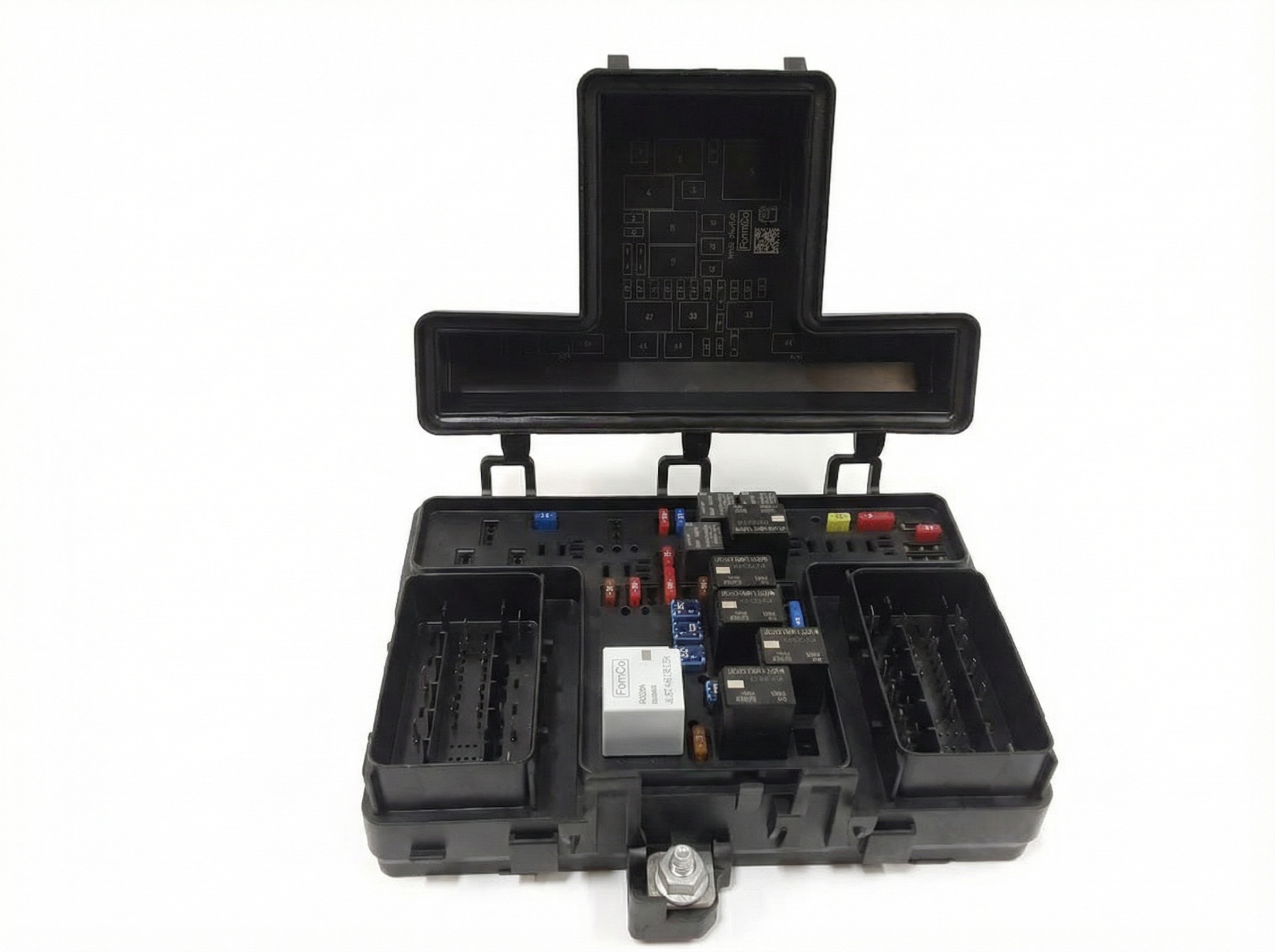

OEM Part Numbers: KB3T-14D068-AA KB3T-14D068-AB KB3T-14D068-BA KB3T14D068BA KB3Z-14A068-A KB3Z-14A068-B KB3Z14A068B MB3T-14A465-AB MB3T-14D068-PJ MB3T-14D068-PJC MB3T-14D068-PJD MB3Z-14A068-AD MB3Z-14A068-AF MB3Z-14A068-Z MB3Z14A003A MB3Z14A068S MB3Z-14A068-G
Houses various types of automotive fuses including Micro2, Micro3, J-Case, and M-Case fuses.
