2019-2025 Ranger & Bronco Engine Fuse Box: Decoding Part Numbers and Water Damage

Distinguishing the Engine Fuse Box (BJB) from the Interior Fuse Box (BCM)

Before diagnosing or buying parts, it's critical to understand that these vehicles have two main fuse boxes with very different functions. This guide focuses on the engine compartment fuse box, officially called the Battery Junction Box (BJB).

• Engine Fuse Box (BJB): Located in the engine bay. This is a power distribution hub. On these Ranger and Bronco models, the BJB is generally considered plug-and-play and does NOT require programming after installation.
• Interior Fuse Box (BCM): Located inside the cabin, often in the passenger footwell. This is the Body Control Module, a complex computer that manages interior electronics, lighting, and security. A replacement BCM absolutely requires professional programming to the vehicle's VIN and security system.

Mixing these two up can lead to buying the wrong part and unnecessary towing and programming expenses. This article deals exclusively with the engine compartment BJB.

Symptoms of a Failing Fuse Box

A failing BJB can cause some of the most confusing and difficult-to-diagnose electrical problems. Because it controls so many different circuits, symptoms can be widespread and seem unrelated.

• Multiple Unrelated Electrical Failures: This is the most common sign. You might experience issues like the radio not working, power windows failing, and the HVAC blower cutting out all at once.
• Engine No-Crank / No-Start: The BJB contains the primary fuses and relays for the starter motor, fuel pump, and engine computer. A failure within the box can prevent the engine from cranking or starting.
• Flickering Lights and Gauges: Intermittent power loss to the instrument cluster or exterior lights can be caused by a poor connection or corrosion inside the fuse box.
• Burning Smell or Visible Melting: A strong electrical burning odor or visible melting of the fuse box plastic indicates a severe short circuit and an immediate fire hazard. Power should be disconnected immediately.
• Audible Clicking or Buzzing: A constant buzzing or rapid clicking from the fuse box area with the key on can indicate a failing internal relay or a short circuit.

Known Issues and Common Causes of Failure

As of early 2026, there are no specific safety recalls from the NHTSA for the engine fuse box on the 2019-2025 Ford Ranger or 2021-2025 Ford Bronco in the North American market. However, one issue is widely reported by owners.

Water Intrusion and Corrosion

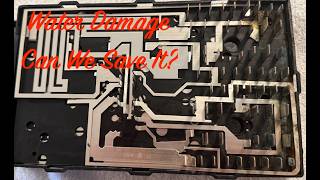

The most common cause of BJB failure is water intrusion. The fuse box cover has a seal, but it can be compromised over time, from damage, or if not seated correctly. Pressure washing the engine bay or deep water crossings can force water inside, where it settles on the internal circuits and terminals. This leads to white or greenish corrosion that disrupts electrical connections and eventually shorts out the internal bus bars. Any sign of moisture or corrosion 🎬 See how water damage and corrosion can ruin a fuse box. inside the fuse box is a red flag.

Buying a Used Fuse Box: What You Must Know

A used OEM fuse box is an excellent, cost-effective alternative to a new part from the dealer, especially since new aftermarket versions are not typically available. However, careful inspection and verification are essential.

1. Match the Part Number EXACTLY

This is the most important rule. Ford uses many different BJB variations that look identical but have different internal wiring to support various vehicle options. You must find the Ford engineering number (e.g., KB3T-14D068-AA or MB3Z-14A068-AD) on a sticker on your original unit and match it precisely. Do not rely on visual comparison alone.

These variations depend on:

• Drivetrain: Rear-Wheel Drive (4x2) models use a different box than 4x4 models.
• Ford Bronco Auxiliary Switches: Broncos equipped with the factory overhead auxiliary switches have a different, more complex BJB than those without.
• Towing Packages: Vehicles with different levels of trailer tow packages may have different internal relay and fuse configurations.

2. Inspect for Corrosion or Heat Damage

When buying a used part, a physical inspection is crucial. If buying online, demand clear photos of the inside of the box with the cover off.

• Check for Corrosion: Look for any signs of white, green, or blue powdery residue on the terminals, fuse sockets, or where the main power cables bolt on. Do not buy a unit with any signs of water damage.
• Look for Melted Plastic: Inspect the plastic around all fuse and relay sockets. Any melting or discoloration is a sign of a past short circuit, and the box should be rejected.
• Ensure All Clips are Intact: Check that the cover clips and mounting tabs are not broken. A cover that doesn't seal properly will lead to water intrusion.

Replacement and Installation Tips

Physically replacing the BJB is a straightforward job that a DIY mechanic can perform. The difficulty is rated at 2 out of 5, and it typically takes about an hour.

The key thing to know is that programming is NOT required for the engine bay BJB. It is a plug-and-play part, provided you have matched the part number correctly.

Accessing Fuses on the Bottom

A major challenge for both replacement and simple fuse changes is that Ford placed some fuses on the bottom of the fuse box. To access them, you don't remove the whole box. Instead, you must:

1. Release the latches on the sides of the fuse box cradle.
2. Lift and pivot the entire fuse box assembly upwards and towards the rear of the engine bay.
3. This will expose the bottom cover, which can then be unlatched to access the lower fuses.
🎬 Watch: How to access the hidden fuses on the bottom.

This procedure can be awkward and is important to know before you begin. Some owners have expressed frustration with this design, as disconnecting the main harnesses to fully remove the box can kill all power to the vehicle, including hazard lights.

Cost Comparison

Prices vary significantly based on the specific part number and the vehicle's options (e.g., a Bronco box with auxiliary switch support is more expensive). The following is a general cost estimate:
