2011-2020 Kia Optima Fuse Box & SJB: Fire Recalls, Programming, and Compatibility Guide

Key Differences & Programming Requirements: 2011-2015 vs. 2016-2020

Before purchasing a replacement fuse box, it is critical to understand the major differences between Optima generations, as this affects whether the part needs to be professionally programmed.

• 2011-2015 (TF Generation): The interior Smart Junction Box (SJB) is generally considered a plug-and-play component. As long as you install a used unit with the exact same OEM part number as your original, it typically does not require dealer programming or flashing.
• 2016-2020 (JF Generation): The interior Smart Junction Box (SJB) in these models is NOT plug-and-play. It is tied to the vehicle's security and immobilizer system. A replacement SJB must be programmed to the vehicle's VIN by a Kia dealer or a properly equipped independent shop or locksmith. Failure to program the module will likely result in a no-start condition and malfunctioning electronics.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

CRITICAL SAFETY RECALL: HECU Fire Risk (2011-2015 Models)

Multiple major safety recalls have been issued for 2011-2015 Kia Optima vehicles due to a fire risk originating from the Hydraulic Electronic Control Unit (HECU), which manages the Anti-lock Brake System (ABS). An electrical short circuit can develop inside the HECU, potentially causing a fire in the engine compartment while driving or parked.

NHTSA Recall Numbers: 21V331 (supersedes 20V519), SC212, SC284

The official remedy involves a Kia dealer installing a new, lower-amperage multi-fuse in the engine compartment fuse box to prevent an over-current condition. In some cases, the HECU itself is inspected for leaks and replaced if necessary. Due to the serious risk of fire, Kia has advised owners to park their vehicles outdoors and away from structures until this free recall repair has been performed.

Software Glitch Causing Incorrect Turn Signal (2016-2020 Models)

While more prominent on the related Hyundai Sonata, some Kia models using the same SJB technology have experienced a software glitch where the turn signal activates in the opposite direction of what the driver selects. For affected vehicles, this is typically resolved with a software update performed by a dealer, not by replacing the SJB itself.

Symptoms of a Failing Fuse Box / Smart Junction Box

Because the interior SJB controls so many unrelated systems, its failure can produce a bizarre and frustrating array of electrical problems. Symptoms often appear intermittently at first.

• Widespread Electrical Malfunctions: Multiple, seemingly random systems failing at once is a classic sign. This can include power windows, door locks, the radio, and dashboard gauges not working correctly.
• Lighting Problems: Headlights, taillights, brake lights, or turn signals may flicker, stay on constantly, or fail to turn on at all.
• Parasitic Battery Drain: A faulty SJB can fail to shut down properly, causing a slow drain on the battery that kills it overnight. You may hear faint clicking noises from the dashboard area after the car is turned off.
• Vehicle Won't Start: A dead SJB can prevent the car from starting. On 2016-2020 models, an unprogrammed replacement SJB will also cause a no-start condition.
• Burning Plastic Smell: A strong burning odor from under the driver's side dashboard is a critical warning sign of a severe short circuit within the SJB.

Buying a Used Fuse Box: A Buyer's Guide

Purchasing a used OEM fuse box is a cost-effective solution, but careful verification is essential to ensure you get the right part. Given the complexity, a used OEM unit is often a more reliable choice than a new, unproven aftermarket part.

1. Identify the Correct Fuse Box

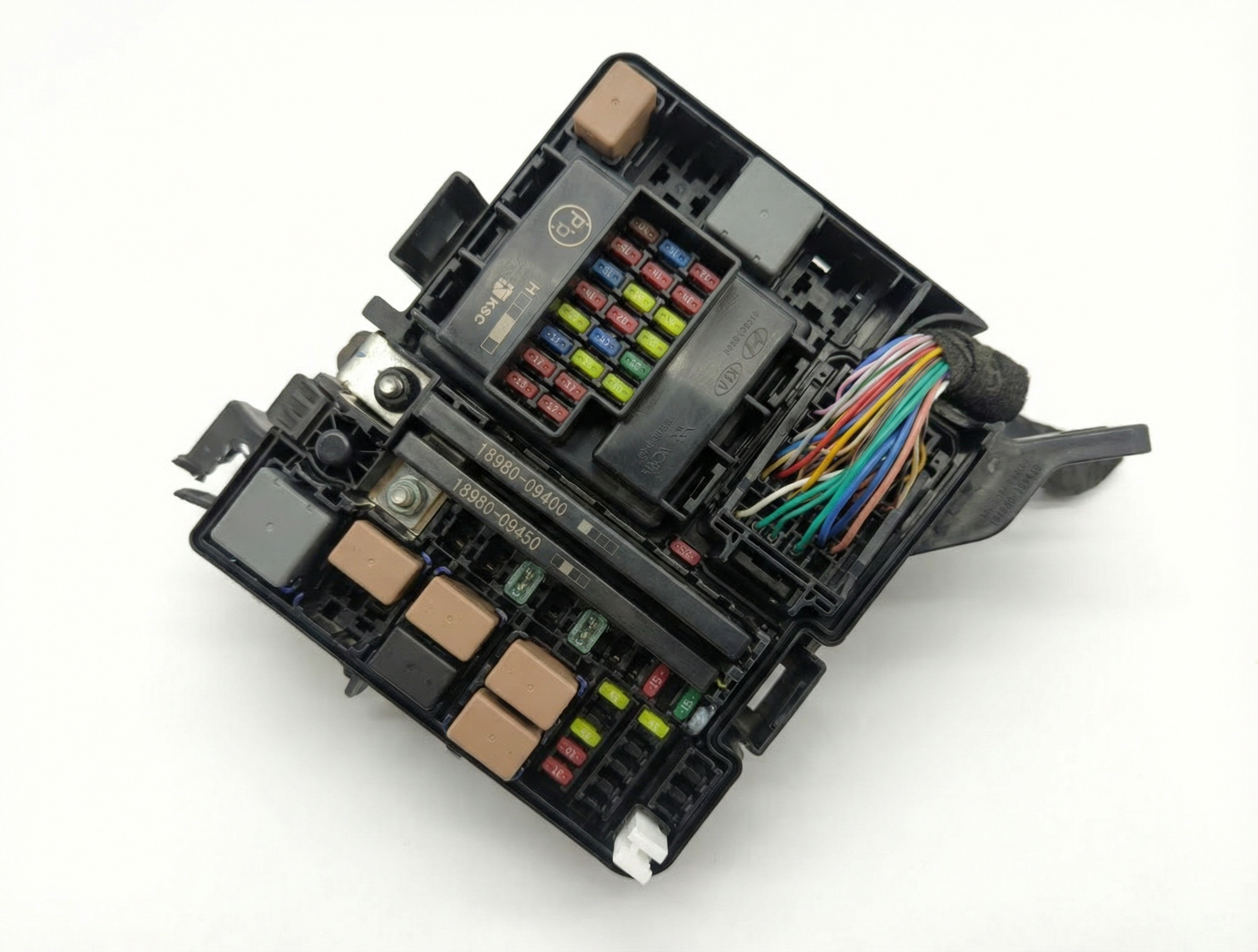

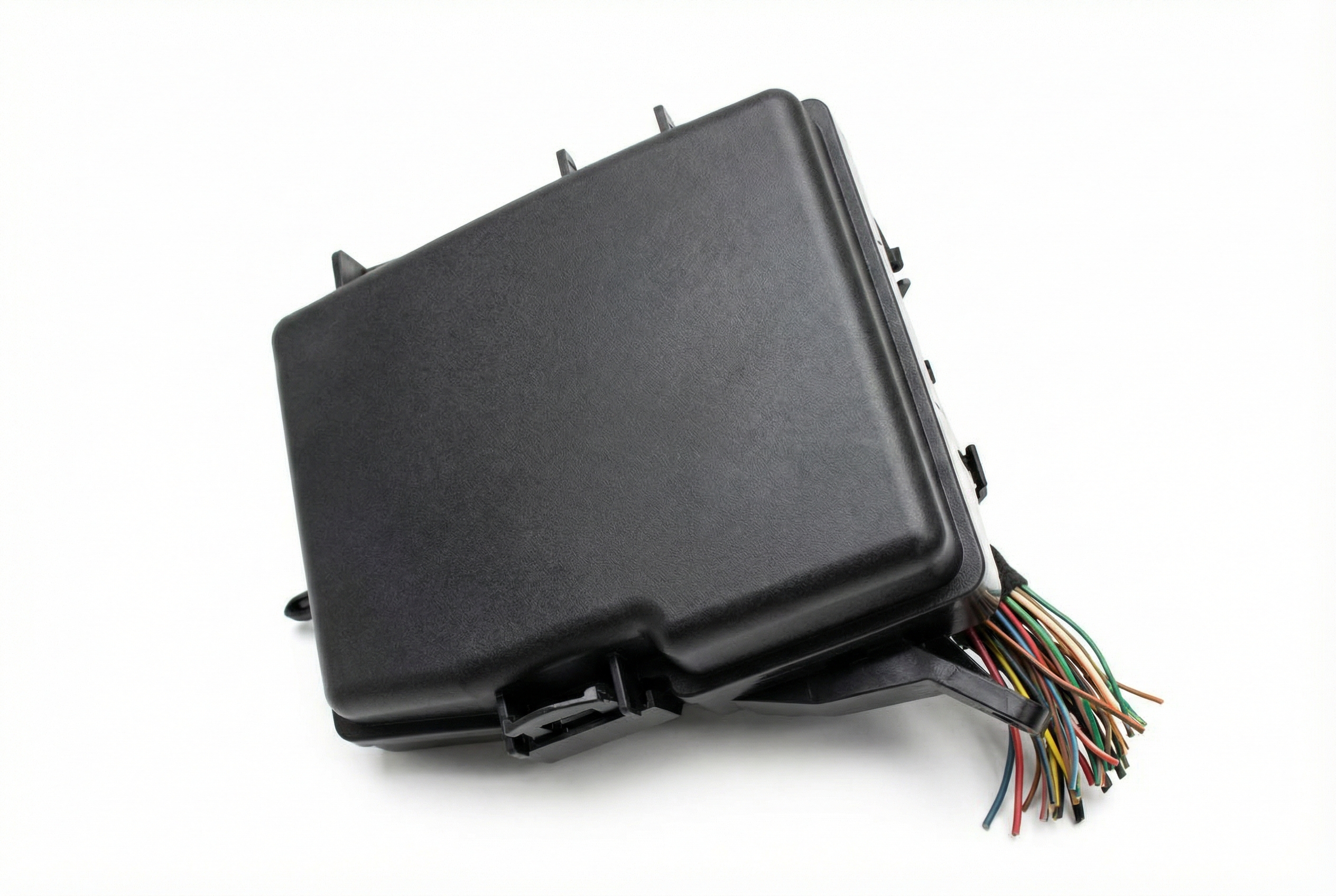

Your Optima has at least two fuse boxes. The Engine Fuse Box (Junction Block) is under the hood and is a common source of individual blown fuses or relays. The Interior Fuse Box (Smart Junction Box / SJB) is under the driver's side dash and is the computer module responsible for most electrical gremlins. Be sure you are diagnosing and replacing the correct unit.

2. Match the Part Number EXACTLY

This is the most important step. Kia produced many different versions of the SJB for various trim levels, engine types, and options (hybrid, turbo, fog lights, push-button start, etc.). The only way to guarantee compatibility is to match the OEM part number on your original unit to the number on the replacement. Do not rely on visual appearance alone.

3. Verify Compatibility by VIN and Engine

Use the following guidelines, which were provided in the existing vetted data, to help narrow your search. Always default to the part number on your specific unit.

• Interior Fuse Box (SJB): Often fits non-hybrid models with the 2.4L engine only. The 8th digit of the VIN may need to be '7'.
• Engine Fuse Box (2.4L): For 2016-2019 models, compatibility can depend on whether the vehicle was built in the US (1st VIN digit is '5').
• Engine Fuse Box (1.6L Turbo): For 2016-2019 models, this is specific to the 1.6T engine and may also have a US-built requirement for the 2019 model year.

4. Inspect for Physical Damage

When your used part arrives, inspect it carefully before installation. Look for:

• Corrosion: Check all connector pins for any signs of green or white crusty residue. Water intrusion from a leaky windshield or cowl is a common cause of SJB failure.
• Melted Plastic or Burn Marks: Any sign of heat damage indicates a severe internal short, and the unit should not be used.
• Intact Connectors: Ensure none of the plastic connector housings are cracked or broken.
