2010-2016 Kia Soul Fuse Box: Solving Electrical Mysteries and Ensuring Compatibility

Understanding the Two Fuse Boxes in Your Kia Soul

The 2010-2016 Kia Soul uses two separate fuse boxes to manage its electrical systems, and they serve very different roles. It's important to know which one you're dealing with when diagnosing a problem.

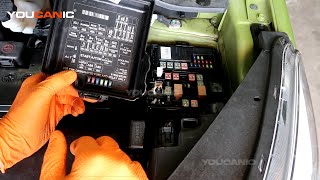

• Engine Compartment Fuse Box: Located in a black plastic box near the battery, this is the main power distribution center. It contains high-amperage fuses and relays that control critical components like the engine control module (ECM), fuel pump, starter, and cooling fans. Failures here often lead to major problems, like the car not starting or stalling.
• Interior Fuse Box / Junction Box: Found behind a panel on the driver's side of the dashboard, this unit controls most of the car's body and convenience features. This includes the radio, interior lights, power windows, door locks, and wipers. In many modern vehicles, this interior fuse panel is integrated with the Body Control Module (BCM), a computer that manages these functions.

Symptoms of a Failing Fuse Box

A bad fuse box usually causes more complex issues than a single blown fuse. While a blown fuse might make your radio stop working, a faulty fuse box can cause multiple, seemingly unrelated systems to fail at once.

• Multiple, Unrelated Electrical Failures: This is the most common sign. For example, your power windows, turn signals, and radio might all stop working at the same time. This points to a problem with the main power distribution in the fuse box rather than individual component failures.

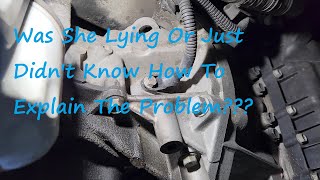

• Intermittent Electrical Problems: Lights that flicker, gauges that behave erratically, or accessories 🎬 See a diagnosis of intermittent stalling and no-start issues that work one moment and not the next can be caused by loose internal connections or failing relays inside the fuse box.
• Engine Stalling or No-Start Condition: A failure in the engine bay fuse box can cut power to the fuel pump, ignition system, or engine computer, causing the engine to stall while driving or preventing it from starting at all. You might hear a click but the engine won't crank, or it will crank but never fire up.
🎬 Watch: Troubleshooting a Kia Soul that clicks but won't crank
• Visible Damage or Burnt Smell: A visual inspection may reveal melted plastic around fuse or relay sockets, discoloration from heat, or a greenish-white powder indicating corrosion. A distinct burning plastic smell near a fuse box is a serious red flag.
• Fuses Repeatedly Blowing: If you replace a fuse for a specific circuit and it immediately blows again, there could be a short in that circuit. However, if multiple different fuses blow frequently, it may indicate an internal short within the fuse box itself.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no recalls specifically targeting the entire fuse box assembly for the 2010-2016 Kia Soul, several recalls and TSBs relate to electrical systems that pass through it.

• NHTSA Recall 22V-760 (HECU Fire Risk): A major recall affecting many 2010-2013 Kia Soul models involves the Hydraulic Electronic Control Unit (HECU) for the anti-lock brake system. An electrical short inside the HECU could cause a fire in the engine compartment, even when the car is parked and off. The remedy involves dealers installing a new multi-fuse with a lower amperage rating to prevent overcurrent. While this isn't a fuse box failure, the repair is performed within the engine bay fuse box.
• Other Electrical TSBs: Kia has issued numerous TSBs for this generation of Soul related to electrical components, such as repairing headlight connectors (TSB ELE148) or addressing issues with the Motor Driven Power Steering (MDPS) ECU (TSB CHA084). These highlight the complexity of the vehicle's electrical system and the importance of proper diagnosis.

Programming and Installation Requirements

This is one of the most important factors when replacing a fuse box.

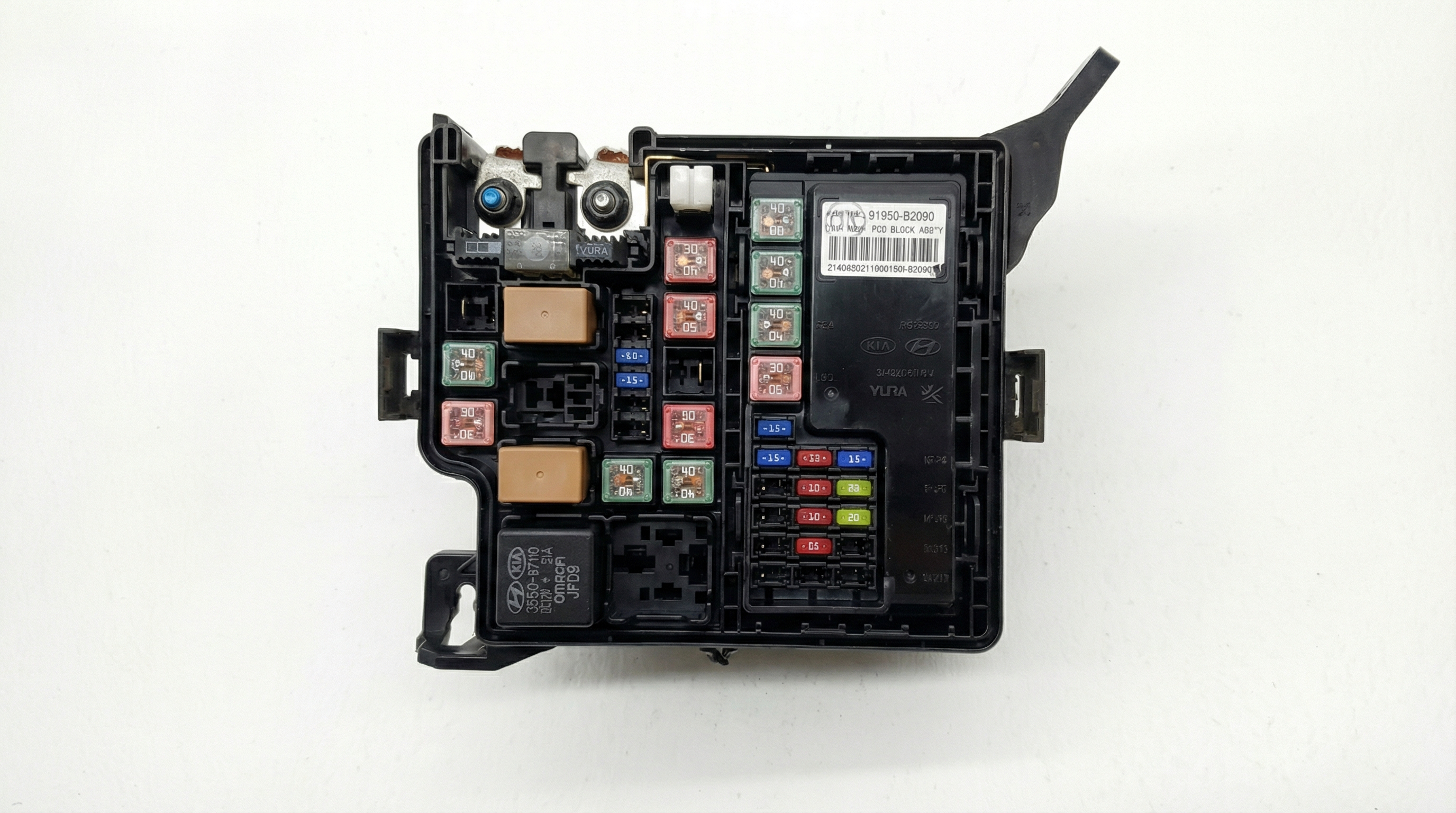

• Engine Compartment Fuse Box: For the 2010-2016 Kia Soul, the main engine compartment fuse box is typically a non-programmed part. It is a plug-and-play component. As long as the part number on the replacement unit is an exact match to the original, no special programming, flashing, or dealer visit is required.
• Interior Fuse Box (Junction Box / BCM): The story is different for the interior unit. If it is just a simple fuse panel, it may not need programming. However, if it is an integrated Body Control Module (BCM), it will likely require programming to the vehicle. The BCM needs to be configured to match the specific options of your car (like keyless entry, sunroof, etc.). Failure to program a new or used BCM can result in features not working or the car not starting.

Buying a Used Fuse Box: A Buyer's Guide

A used OEM fuse box can be a smart and affordable alternative to a costly new part. Since the engine bay unit is plug-and-play, a used component is an excellent option. Here’s what to look for:

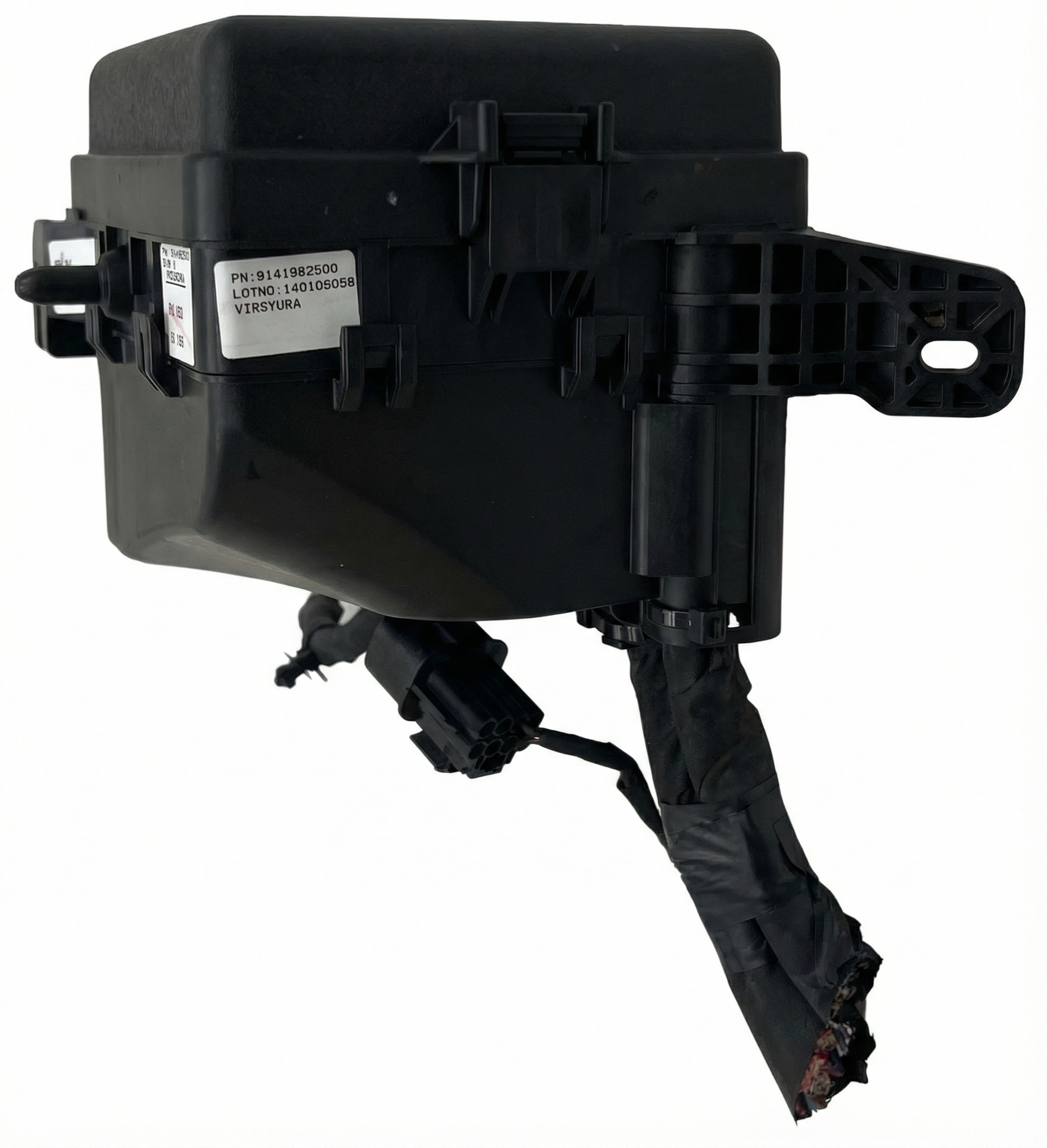

1. Match the Part Number EXACTLY: This is the most important rule. Kia produced dozens of different fuse boxes for this Soul generation, based on engine size (1.6L vs. 2.0L), transmission type, and optional features. The only way to ensure compatibility is to match the OEM part number on your original unit with the replacement. Do not rely on looks alone.
2. Inspect for Heat Damage or Melting: Carefully examine the entire box, especially the sockets for large relays and fuses. Look for any warped plastic, discoloration, or signs of melting. This indicates a past short circuit or overload that may have damaged the internal structure of the box.
3. Check for Corrosion: Look for any white or green powdery residue on the terminals, both where the fuses plug in and where the main wiring harnesses connect. Water intrusion is a common killer of fuse boxes, and corrosion creates resistance that leads to intermittent electrical problems.
4. Verify Physical Integrity: Ensure the plastic housing is not cracked and that all mounting tabs and connector clips are intact. A broken housing can allow moisture and dirt to enter, leading to future failures.

Fuse Box Replacement Cost

The cost can vary significantly depending on which fuse box needs replacing and whether you buy a new, used, or aftermarket part.

Note: Prices are estimates and can vary based on location, supplier, and the specific part number required. Labor for the interior fuse box/BCM may be higher due to difficult access under the dashboard.
