2016-2020 Range Rover Sport Fuse Box & BCM Guide: Programming, Water Damage, and Battery Drains
This guide clarifies the different fuse box locations, explains the mandatory programming requirements, and details common failures like water intrusion and parasitic battery drain.
- Module programming is NOT optional. The Central (BCM) and Rear Junction Boxes must be programmed to the vehicle's VIN by a dealer or specialist with JLR Pathfinder software.
- There are three main 'fuse boxes': Engine, Central (BCM), and Rear. You must identify the correct one before purchasing.
- Water intrusion from clogged sunroof drains or a bad cowl seal is a primary cause of failure. Check for damp carpets.
- Parasitic battery drain is a classic symptom of a failing BCM that is not 'sleeping' correctly.
Which Fuse Box Are You Dealing With?
Before diagnosing or replacing a fuse box in your 2016-2020 Range Rover Sport, you must identify which unit is at fault. They are not interchangeable, and they serve very different functions.
🎬 Watch: Locate all three fuse boxes on your Range Rover Sport- Engine Junction Box (EJB): Located in the engine compartment, this box primarily distributes power to engine-related components like the cooling fans, starter motor, and engine management system. In most cases, this unit is a power distribution center and does not require complex programming to be replaced.
- Central Junction Box (CJB) / Body Control Module (BCM): This is the main brain of the vehicle's electronics, located inside the passenger cabin, typically behind the glove box. It controls a vast range of functions, including interior/exterior lighting, climate controls, door locks, windows, anti-theft systems, and communication between other modules. This module is the most common failure point and absolutely requires programming.

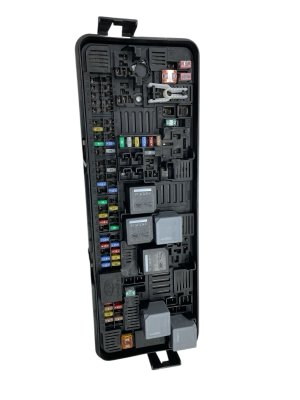

- Rear Junction Box (RJB): Found in the luggage compartment, this module manages power for rear-of-vehicle systems. This can include the fuel pump, taillights, tailgate, and rear accessories. Like the BCM, this is an intelligent module that is linked to the vehicle's network and may require configuration or programming upon replacement.
Warning: The Central Junction Box (BCM) and Rear Junction Box (RJB) are NOT plug-and-play parts. They must be programmed to your vehicle's specific VIN and configuration. Failure to do so will result in a non-starting vehicle or malfunctioning features.
Programming, VIN Locking, and Anti-Theft Requirements
This is the most critical aspect of replacing a BCM or Junction Box in a Range Rover Sport. These modules are tied to the vehicle's immobilizer and security system.
- Dealer-Level Tools Required: A replacement module must be configured and programmed using Land Rover's official diagnostic software, either SDD (for early models) or Pathfinder (for 2017 and newer vehicles). This process downloads the vehicle's specific configuration file (called an 'As-Built' file) from JLR's servers and writes it to the new module.
- Who Can Program It?: This procedure can only be performed by a Land Rover dealership or a highly specialized independent shop that has invested in the official JLR diagnostic equipment and subscription. A standard mechanic's OBD-II scanner or a locksmith's tool cannot perform this function.
- Consequences of Improper Installation: If you install a used BCM without programming, the vehicle will likely not start, and you will see numerous error messages on the dashboard. The module's stored VIN will conflict with the rest of the vehicle's systems.
Known Issues, TSBs, and Recalls
Water Intrusion: The Number One Killer
Many electrical failures in the Range Rover Sport are not caused by a faulty part, but by water damage. Common leak points include clogged sunroof drains, 🎬 Watch: How to clear sunroof drains and prevent water damage a warped windshield cowl, or failed door seals. This water often collects in the passenger footwell, submerging wiring and modules located under the carpet or seats, such as the BCM or audio amplifier. This leads to corrosion on the circuit boards and connector pins, causing short circuits and module failure.
Parasitic Battery Drain
A very common complaint is the battery dying overnight. This is often caused by a 'parasitic drain,' where a module fails to go into its low-power 'sleep mode' after the vehicle is turned off. A malfunctioning BCM or another component, like a faulty tailgate latch switch or amplifier, can stay 'awake' and continuously draw power, draining the battery. A normal drain is under 80 milliamps (mA) after the vehicle has been off for about 20-30 minutes. A faulty module can cause a draw of several hundred mA or more.
🎬 See how to perform a professional parasitic draw testRecalls and Technical Service Bulletins (TSBs)
While there are no major recalls specifically for the main fuse boxes on this model, several related electrical recalls and TSBs exist:
- NHTSA Recall 20V-683: Affects some 2020 MHEV (Mild Hybrid) models. An overload in the 48V electrical system could cause a DCDC converter to short-circuit, increasing fire risk. The fix is a software update.
- NHTSA Recall 20V585000: A software error on some 2020 models could cause the instrument cluster to randomly switch between MPH and KM/H, requiring a software update.
- Technical Service Bulletins (TSBs): Land Rover has issued numerous TSBs for electrical issues, which are official repair guidelines for dealers. For example, SSM 75296 addresses a specific DTC (P00B0-49) related to the electric supercharger, diagnosed using the Pathfinder tool. This highlights the importance of proper diagnostics for any electrical fault.
Buying a Used Fuse Box / BCM
A used OEM module is a great way to save money, but you must be extremely careful to ensure compatibility and be prepared for the necessary programming.
- Match the Part Number EXACTLY: Land Rover uses many different part numbers, and even a single letter difference in the suffix (e.g., -CB vs -CC) can indicate a different software version or hardware revision. Do not mix and match. The part numbers GPLA-14K016-CC and HPLA-14N030-AB are common for the rear junction box.
- Inspect for Corrosion: When you receive the part, carefully inspect all pins in the electrical connectors. Look for any signs of green or white powder (corrosion) or rust-colored water stains. A part with any signs of water damage should be returned immediately.
- Budget for Programming: The cost of the used part is only one part of the equation. You MUST factor in the cost of having it professionally programmed. Call local Land Rover specialists or the dealer beforehand to get a quote for programming a customer-supplied used module.
- Why Used OEM is a Good Choice: For these complex modules, a used original Land Rover part that is properly programmed is often more reliable than a new, unbranded aftermarket alternative (which are rare for these specific components anyway). OEM parts are built to the vehicle's exact specifications.
Pro Tip: Before condemning the BCM or Junction Box, have a technician perform a parasitic draw test and check for water intrusion. Your problem might be a simpler fix, like a clogged sunroof drain or a faulty latch, rather than a failed module.
Cost Breakdown
Prices can vary significantly based on location and availability. The programming cost is a critical and often overlooked expense.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (BCM/Junction Box) | $800 - $1,500+ |
| Used OEM (BCM/Junction Box) | $150 - $400 |
| Shop Labor (Physical Installation) | $150 - $300 |
| Shop Labor (Programming & Configuration) | $250 - $500 |
Frequently Asked Questions (FAQ)
Does a used 2016-2020 Range Rover Sport fuse box need to be programmed?
Yes, absolutely. The Central Junction Box (BCM) and likely the Rear Junction Box are tied to the vehicle's VIN and security system. They must be programmed by a Land Rover dealer or a specialist with JLR Pathfinder or SDD software. The Engine Junction Box is the only one that typically does not require programming.
Why is my Range Rover Sport battery always dead?
The most likely cause is a parasitic battery drain. One of the vehicle's many electronic modules is not entering 'sleep mode' and is continuously drawing power. This is a common symptom of a failing Body Control Module (BCM) or another component like an amplifier or door latch.
Can my local mechanic replace my BCM?
While most mechanics can physically swap the part, very few have the expensive, specialized Land Rover diagnostic software (Pathfinder) required to program the new module to the car. Without this programming step, the vehicle will not work correctly. Always confirm they have the specific capability for JLR module programming before starting the job.
What are the signs of water damage in my Range Rover Sport?
Signs include damp or saturated carpets (especially in the passenger footwell), a musty smell, condensation on the inside of windows, and strange electrical problems. If you suspect a leak, it's crucial to find and fix it immediately to prevent catastrophic damage to expensive electronic modules.
Helpful Videos
Technical Specifications
OEM Part Numbers: GPLA-14K016-CB HPLA-14N030-AB JPLA-14K016-CC LK52-14A073-AA LK52-14A073-AB LK6214B892AA LR075930 LR078451 LR080336 LR090040 LR112923 LR128503
These modules are vehicle-specific electronic control units. Compatibility is determined by the full OEM part number and the vehicle's configuration file. They operate on the vehicle's 12V system and communicate via CAN bus networks.
