2003-2008 Mazda 6 Engine Fuse Box: Solving Electrical Gremlins Caused by Corrosion and Water

Symptoms of a Failing 2003-2008 Mazda 6 Fuse Box

Failure of the engine bay fuse box or its main connections often creates widespread and confusing electrical problems. Because it supplies power to so many unrelated systems, symptoms can appear random and intermittent at first.

• Multiple, Unrelated Electrical Failures: This is the most common sign. You might experience issues like the radio, interior lights, turn signals, and power door locks all malfunctioning at the same time.
• No-Start Condition: The engine may crank but not start, or you may hear just a single click or nothing at all when you turn the key. This can happen if the fuse box isn't properly powering the starter relay, fuel pump, or engine computer.
• Flickering or Dim Headlights: Unstable power from a faulty fuse box or poor connection can cause the headlights and dashboard lights to flicker or appear dim.
• Engine Stalling: The engine may stall unexpectedly while driving if critical components like the fuel pump or ignition system lose power intermittently.
• Visible Corrosion: A key symptom is visible damage on the main power wire connecting to the fuse box. Heavy green and white corrosion on the positive battery terminal cable, especially where it bolts to the fuse box, is a very common point of failure.
• Melting Plastic or Burning Smells: In severe cases, a poor connection can generate extreme heat, leading to melted plastic around the main fuse terminals or a distinct electrical burning smell.

Root Causes of Failure: It's Often Not the Box Itself

While the internal circuitry of the fuse box can fail, the most common issues for the 2003-2008 Mazda 6 are external factors that damage the box or its connections.

Corroded Battery Terminal Connectors

The single most frequent problem is not the fuse box, but the main battery cable that attaches to it. The positive battery cable splits, with one part going to the starter and the other bolting to a main stud on the fuse box. Over time, moisture and battery fumes cause this connection to corrode severely. This corrosion creates high resistance, which prevents proper current flow, leading to a host of electrical problems and no-start issues. In many cases, replacing the corroded battery cable harness restores function without needing to replace the entire fuse box.

Water Intrusion

The first-generation Mazda 6 can be susceptible to water leaks into the engine bay and cabin. While the fuse box has a cover, it is not completely waterproof. Water dripping onto the fuse box can seep into the connectors, causing corrosion on the internal pins and circuit board. Owners have reported that driving through heavy rain has led to sudden electrical failures, later diagnosed as a water-damaged fuse box or junction box.

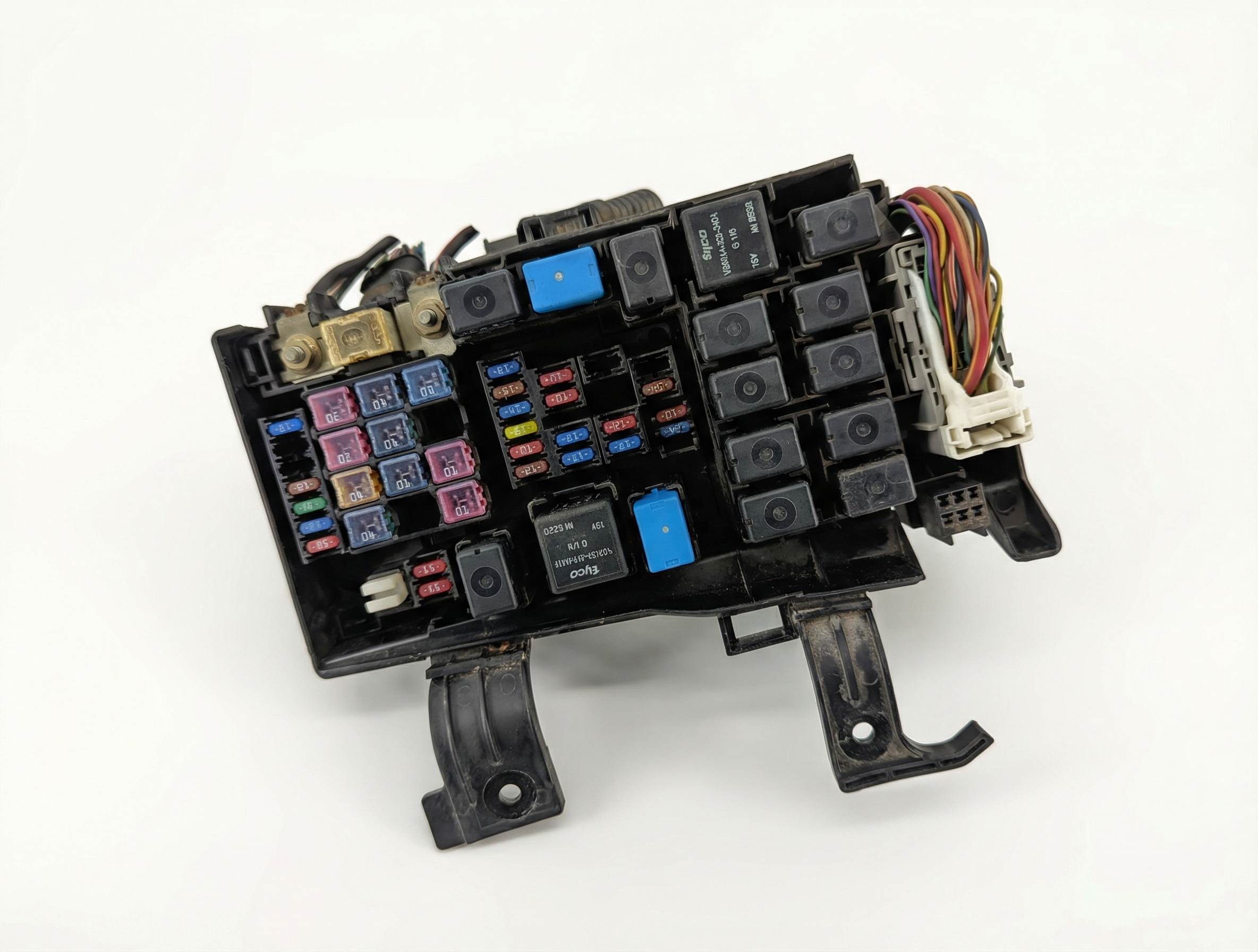

Buying a Used Fuse Box for Your 2003-2008 Mazda 6

A used OEM fuse box is an excellent, cost-effective solution, but careful matching is essential for success.

1. Match the Part Number: The most reliable method is to match the OEM part number printed on the sticker on the side of your original fuse box. There were several revisions during the 2003-2008 production run.
2. Perform a Thorough Physical Inspection: When you receive the used fuse box, inspect it carefully before installation.
   • Check all electrical pins in the connectors on the bottom. Look for any signs of green or white corrosion, or pins that look burnt or black.
   • Inspect the main power stud where the battery cable attaches. It should be clean and free of corrosion or pitting.
   • Look at the plastic housing, especially around the high-amperage fuse slots. There should be no signs of melting, warping, or discoloration from heat.
   • Check for water marks or a powdery residue inside the housing, which indicates prior water damage.
3. Why Used OEM is a Good Choice: The original Mazda fuse boxes are built to a high quality standard. A clean, corrosion-free used OEM unit is often a more reliable choice than a new, unbranded aftermarket part which may use lower-quality internal components and plastics.

Programming and Installation

The engine compartment fuse box on the 2003-2008 Mazda 6 is a straightforward power distribution module and does NOT require any programming or flashing after installation. It is a direct plug-and-play replacement.

Installation is straightforward for a DIY mechanic. The main steps involve disconnecting the battery, unbolting the main power feed from the battery cable, unplugging the electrical connectors from the bottom, and releasing the clips that hold the box to its bracket.
