2000-04 Avalon & 2002-03 ES300 Fuse Box: Solving Electrical Gremlins & Compatibility
Your definitive guide to diagnosing, replacing, and choosing the correct used fuse box for your Toyota Avalon or Lexus ES300, and avoiding common part-swapping mistakes.
- Avalon and ES300 fuse boxes are NOT interchangeable with each other or with Camry/Solara models. You must match the OEM part number exactly.
- These fuse boxes are simple power distribution centers and DO NOT require any programming or flashing after installation.
- The most common symptom of failure is multiple, unrelated electrical systems failing at the same time.
- When buying a used unit, the most important checks are for matching part numbers and inspecting for any signs of corrosion or heat damage.
Compatibility: The Most Common and Costly Mistake
While the 2000-2004 Toyota Avalon and 2002-2003 Lexus ES300 share a platform with the Toyota Camry and Solara of the same era, their fuse boxes are not interchangeable. This is the most critical point for anyone buying a replacement. Using the wrong fuse box, even if it looks physically similar, can lead to non-functioning features, new electrical problems, or a car that won't start.
Warning: Do not use a fuse box from a Toyota Camry or Solara in your Avalon or ES300. Also, the fuse boxes for the Avalon and ES300 are not interchangeable with each other. You must match the OEM part number from your original unit exactly.
- 2000-2004 Toyota Avalon: Look for part numbers like 82720-07050 or 82720-07020 for the engine bay unit. There was a production split in mid-2002; always verify your car's build date on the driver's door jamb sticker to ensure you get the correct version.
- 2002-2003 Lexus ES300: The primary part number for the main cabin fuse box (Driver Side Junction Block) is 82730-33040. Other options or model years may use different numbers. 🎬 See this guide for Lexus ES300 fuse box locations and diagrams.
Symptoms of a Failing Fuse Box
A failing fuse box causes problems that are more widespread and confusing than a single blown fuse. Look for these signs:
- Multiple, Unrelated Failures: This is the hallmark symptom. For example, your radio, power windows, and dome light all stop working at the same time.
- Intermittent Electrical Gremlins: Components work one minute and fail the next. This can be caused by corrosion or loose internal connections within the fuse box.
- Melting or Burning Smell: A visual inspection might reveal melted plastic around a fuse or relay socket, often accompanied by a distinct burning plastic odor. This points to a bad connection causing high resistance and heat.
- No-Start or No-Crank Condition: If the main power distribution or circuits for the starter or fuel pump are compromised, the car may not start.
- Visible Corrosion: White or greenish crust on the terminals or connectors is a clear sign of water intrusion or age-related failure.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While there are no specific recalls for the fuse boxes themselves on these models, owners should be aware of other significant electrical and safety notices.
- Toyota Avalon - Steering Lock Recall (NHTSA Recall 10V345000): A critical safety recall was issued for all 2000-2004 Avalons for a steering lock bar that could break. If this happens while driving, the steering wheel could lock, leading to a crash. This is unrelated to the fuse box but is a vital safety check for any owner.
- Lexus ES300 - No Major Recalls: The 2002-2003 ES300 has not had major safety recalls related to the fuse box. There were some investigations into sudden acceleration issues for this era of Lexus and Toyota vehicles, but these were primarily linked to floor mats or electronic throttle controls, not the fuse box.
Buying a Used Fuse Box: What to Look For
Since new OEM fuse boxes are extremely expensive or discontinued, a quality used OEM part is the best option for most owners. Here’s how to choose a good one:
- Match the Part Number Exactly: This is the most important rule. Find the number printed on your original fuse box and buy one with the identical number.
- Inspect All Terminals: Look closely at all the pins and sockets where fuses, relays, and wiring harnesses connect. Reject any unit with signs of green or white corrosion, rust, or water marks.
- Check for Heat Damage: Examine the plastic around each fuse and relay socket. Any melting, warping, or discoloration is a major red flag indicating a past electrical overload.
- Ensure the Housing is Intact: The plastic casing should be free of cracks or broken mounting tabs. A damaged housing can allow moisture and dirt to enter, causing future problems.
- Ask for the Donor Vehicle's History: If possible, choose a part from a vehicle with lower mileage and no signs of flood or fire damage.
Pro Tip: Before installing the replacement fuse box, take a clear photo of your original unit with all the fuses and relays in place. This will be an invaluable reference for making sure you transfer everything to the correct location in the new box.
Programming and Installation
Good news for DIY mechanics: replacing the fuse box on these vehicles is a straightforward mechanical job that does not require any special electronic tools.
- No Programming Required: The fuse box on the 2000-2004 Avalon and 2002-2003 ES300 is a non-intelligent part. It does not need to be programmed, flashed, or coded to the vehicle. It is a direct plug-and-play replacement.
- No Anti-Theft Link: The vehicle's immobilizer or anti-theft system is not tied to the fuse box. Swapping the unit will not require a dealer visit to reset security systems.
Cost of Replacement
| Part Type | Price Range | Notes |
|---|---|---|
| New OEM | $350 - $1,700+ | Extremely expensive and may be discontinued. Lexus parts are significantly more costly. |
| New Aftermarket | $50 - $150 | Rarely available as a complete assembly. Quality and fit can be inconsistent. |
| Used OEM | $75 - $200 | The most common and cost-effective solution. Prices vary based on condition and source. |
| Shop Labor | $150 - $300 | Typically 1-2 hours of labor at a professional shop. |
Frequently Asked Questions (FAQ)
Does a replacement fuse box for a 2003 Avalon or 2002 ES300 need to be programmed?
No. For these specific models and years, the fuse box is a simple power distribution center. It contains no software and does not require any programming, flashing, or dealer visit after installation. It is a plug-and-play part.
Can I use a fuse box from a Toyota Camry in my Lexus ES300?
No. Even though the vehicles are built on the same platform and the parts may look similar, the internal wiring and relay configurations are different based on the specific options of the vehicle (e.g., with or without stability control, daytime running lights, etc.). You must use a fuse box with the exact same part number from another ES300.
Where are the fuse boxes located on these cars?
There are two primary locations. The main fuse and relay box is in the engine bay, usually on the driver's side. A second fuse panel for interior accessories is located inside the car, on the driver's side of the dashboard, often behind a small cover or coin tray.
🎬 Watch: Locate the fuse boxes on your 2000-2004 Avalon.My car clicks but won't start. Is it the fuse box?
It could be, but it's more likely to be a weak battery, corroded battery terminals, or a failing starter. A single click often points to the starter solenoid. While a bad fuse box *can* cause a no-start, it's important to diagnose the simpler and more common causes first.

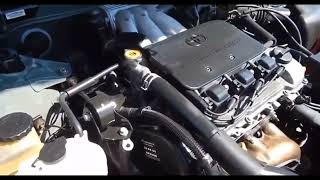

🎬 Watch: Troubleshooting a no-start condition on a Toyota Avalon.Helpful Videos
Technical Specifications
OEM Part Numbers: 82730-33040 82730-AC021 89221-AC020 82720-07050 82720-07020
This is a non-electronic power distribution module. Key specifications are related to the internal bus bar configuration and relay/fuse layout, which must match the original vehicle's options. No software or firmware versions apply.
