Symptoms of a Failing 2006-2012 RAV4 Fuse Box

A problem with the engine bay fuse box can manifest in many ways, from a minor annoyance to a no-start condition. Because it controls so many different circuits, symptoms can be widespread and confusing. Always check individual fuses first before suspecting the entire box has failed.

• Multiple Unrelated Electrical Failures: This is the most common sign. For example, the radio might stop working at the same time as the power windows, or the headlights might flicker while the A/C blower cuts out.
• Intermittent Starting or No-Start: The fuse box contains the main EFI (Electronic Fuel Injection) and fuel pump relays. A failure within the box can prevent power from reaching the fuel pump, causing the engine to crank but not start.
• Parasitic Battery Drain: A short circuit or a stuck relay inside the junction block can draw power even when the vehicle is turned off, leading to a dead battery overnight. Owners may notice a faint whirring or clicking sound from under the hood after the key is removed.
• Visible Damage or Burning Smell: A strong smell of burning plastic from the engine bay is a serious red flag. Upon inspection, you may find melted plastic around a specific fuse or relay socket, indicating a severe overload or poor connection.
• Corrosion: Green or white crusty deposits on the terminals or connectors, especially on the underside of the box, are a clear sign of water intrusion, which can cause short circuits and open circuits.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no official recalls or TSBs specifically for the engine bay fuse box on the 2006-2012 RAV4, this vehicle generation did have some notable electrical issues. For instance, Toyota issued a recall for the driver's side power window master switch, which could short circuit and melt due to a lack of proper lubrication. This highlights the potential for electrical faults in the vehicle, though it is separate from the fuse box itself. No TSBs directly address fuse box failure, but various electrical problems reported by owners often trace back to issues within this component.

Buying a Used 2006-2012 RAV4 Fuse Box: A Buyer's Guide

Given the high cost of a new OEM fuse box, a quality used part is an excellent value. However, careful selection is key to avoiding problems.

1. Match the Part Number—This is CRITICAL

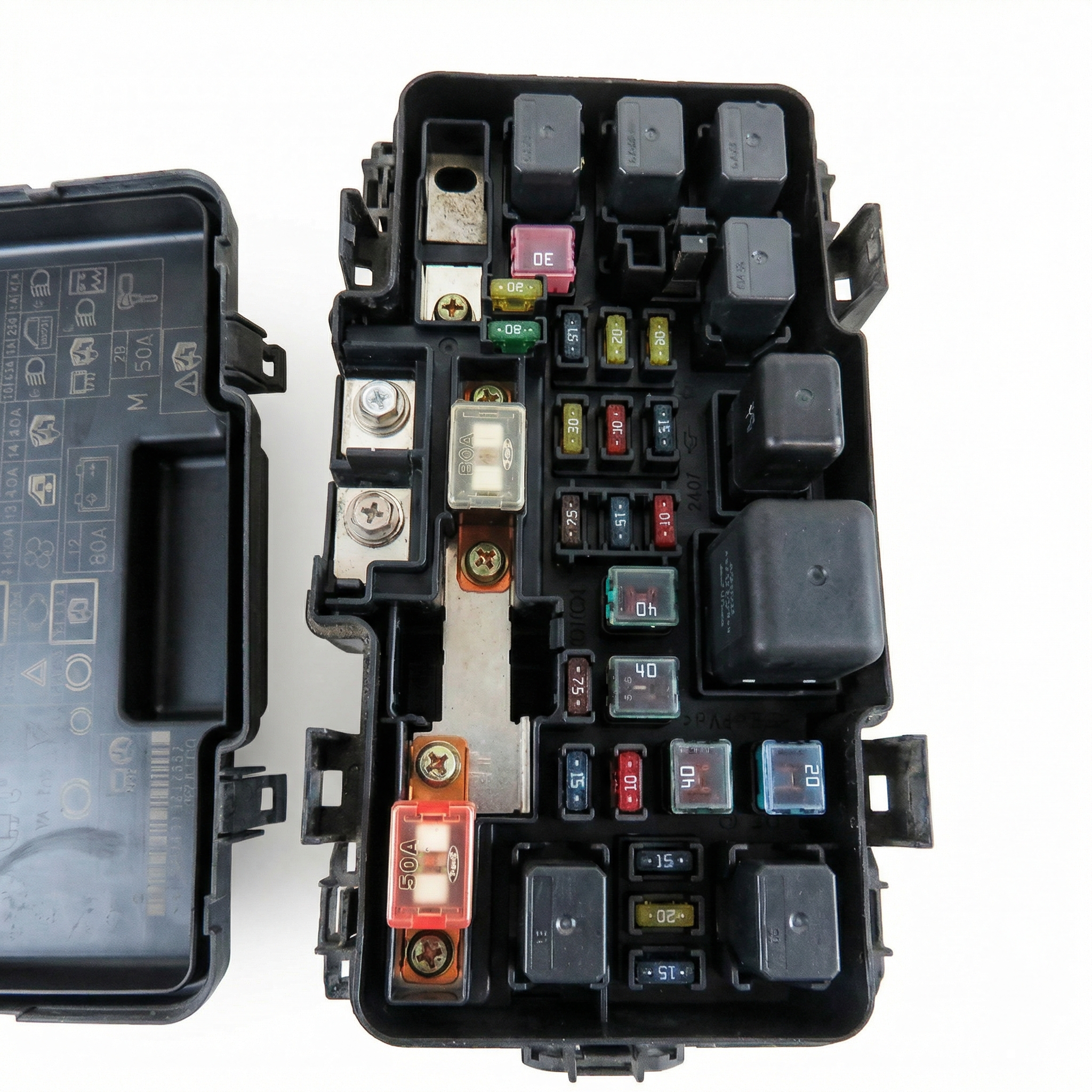

This is the single most important step. Due to variations in wiring for different trim levels and options, a fuse box from another RAV4 may not work unless the part number is an exact match or a verified superseded number. The part number is typically printed on a sticker on the side or top of the fuse box housing. Do not rely on visual comparison alone.

2. Perform a Thorough Visual Inspection

When you have the used part in hand, inspect it carefully:

• Check for Corrosion: Flip the box over and look at the large connectors on the bottom. The pins should be clean and bright. Any green or white powder indicates water damage, and the part should be rejected.
• Look for Melted Plastic: Pay close attention to the sockets for high-amperage fuses and relays. Any sign of melting, warping, or discoloration means the box has been overloaded and is not reliable.
• Inspect for Physical Damage: Ensure all plastic tabs, clips, and mounting points are intact. A broken housing can allow moisture and dirt to enter, leading to future failures.
• Confirm All Fuses/Relays are Present: While you can swap your old fuses and relays over, a box that is complete gives a better indication of its history.

3. Why a Used OEM Fuse Box is Often Better

A used OEM fuse box that passes inspection is often a more reliable choice than a new aftermarket unit. Aftermarket boxes can sometimes use lower-quality internal components or have slight manufacturing differences that cause connection issues. A genuine Toyota part was built to the original factory standard, and a clean, corrosion-free example from a donor vehicle is a dependable and cost-effective repair.

Programming and Installation

Does the fuse box need to be programmed?

No. The 2006-2012 Toyota RAV4 engine compartment junction block does not require any programming, flashing, or VIN matching. It is a plug-and-play component. This makes replacement straightforward for a DIY mechanic and means a used part will function immediately without a trip to the dealer.

Installation Tips

1. Disconnect the Battery: Always disconnect the negative battery terminal before beginning any electrical work.
🎬 See how to safely disconnect and replace your battery
2. Take Photos: Before unplugging anything, take clear photos of the fuse box from multiple angles. This will help you remember where each of the large electrical connectors goes.
3. Be Gentle with Connectors: The large wiring harness connectors have locking tabs. Be careful not to break them during removal. A small flathead screwdriver can help to gently pry them open.
4. Transfer Fuses and Relays: If your replacement box is missing any fuses or relays, carefully transfer them from your old unit using a fuse puller or needle-nose pliers. Ensure you are placing them in the correct locations according to the diagram on the fuse box lid.
🎬 Watch: Detailed fuse box locations and circuit diagrams

Replacement Cost Comparison

Prices for a 2006-2012 RAV4 fuse box can vary significantly. Labor at a repair shop typically takes 1-2 hours.
