2010-2017 Chevrolet Equinox Grille: Navigating the 2016 Facelift and Trim Package Traps

Key Compatibility Warning: The 2016 Facelift

The single most important factor when purchasing a grille for a 2010-2017 Chevrolet Equinox is the model year. The Equinox received a major design refresh, or facelift, for the 2016 model year. This means grilles from 2010-2015 models are NOT interchangeable with grilles from 2016-2017 models. They have different shapes, mounting points, and corresponding bumper covers. Always verify the year of your vehicle before purchasing a replacement grille.

2010-2015 (Pre-Facelift) Grille Variants

For the pre-facelift models, grille compatibility is highly dependent on the vehicle's trim level (LS, LT, or LTZ) and specific optional packages. Mixing and matching grilles between trims is often not possible without changing other parts.

Upper Grille

• LTZ Models (2010-2015): These models came standard with an upper grille featuring a full chrome mesh insert and a chrome surround.

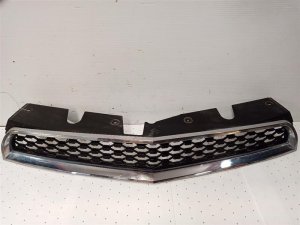

• LS and LT Models (2010-2015): The standard grille for LS and LT models was a black mesh grid with a chrome outer molding.
• The "Chrome Appearance Package" Exception: For 2012-2015 LT models, an optional Chrome Appearance Package was available. If an LT model has this package, it will use the same all-chrome upper grille as the LTZ models. A standard LT without this package uses the black mesh grille.
🎬 Watch: Step-by-step grille replacement for 2010-2015 models.

Lower Grilles

The lower bumper area contains three grille sections: a center piece and two side inserts (driver and passenger). Fitment here depends on both trim and the presence of factory fog lamps.

• Lower Center Grille: Fitment on the LT trim can vary. For 2012 LT models, compatibility depends on having the Chrome Appearance Package (option code R13). For 2013-2015 LT models, the correct lower center grille depends on whether the vehicle has fog lamps.
• Lower Side Grilles (with Fog Lamps): Vehicles equipped with factory fog lamps have specific left and right lower grilles with openings for the lamp assemblies.
• Lower Side Grilles (without Fog Lamps): The most common configuration on LS and base LT models. These are solid or mesh inserts with no cutout for a fog lamp.

2016-2017 (Post-Facelift) Grille Variants

The 2016 facelift introduced a new front fascia with a more modern, chrome-accented dual-port grille. The trim levels were also updated to L, LS, LT, and Premier (which replaced LTZ).

• Upper Grille: The design is more integrated with the headlights. Higher trim levels like the LT and Premier feature more prominent chrome accents compared to the base L and LS models.
• Lower Grille: The lower grille was also restyled to match the upper section. Variations exist based on trim, with higher trims often featuring additional chrome or specific finishes.

Symptoms of a Damaged Grille

Grille failure is almost always due to physical damage. There are no mechanical or electrical components to fail. Look for:

• Cracks or Breaks: The most common symptom, usually caused by impacts from road debris or minor collisions. Cracks near mounting points are the most serious.
• Broken Mounting Tabs: Tabs on the back of the grille clip it into the bumper cover. If these break, the grille can become loose, rattle, or even fall out.
• Peeling or Faded Chrome: Over time, exposure to the elements can cause the chrome plating to bubble, peel, or fade, negatively affecting the vehicle's appearance.
• Discoloration: The black plastic portions of the grille can fade from a deep black to a chalky gray due to sun exposure.

Buying a Used 2010-2017 Equinox Grille

A used OEM grille is often a better choice than a cheap aftermarket alternative due to superior fit and material quality. However, careful inspection is key.

1. Confirm the Exact Year and Trim: First, ensure the donor vehicle is the correct year (pre- or post-facelift) and trim level. If possible, get the VIN of the donor car to verify its options.
2. Inspect All Mounting Tabs: This is the most critical step. Lay the grille on a flat surface and carefully check every single mounting tab and clip receiver on the back. Even one broken tab can cause a poor fit or rattling.
3. Check for Hairline Cracks: Look closely at the entire surface, especially around the mounting points and the outer frame, for small cracks that could worsen during installation.
4. Examine the Finish: Check the chrome for any signs of pitting, bubbling, or peeling. Look at the black plastic areas for deep fading or discoloration.
5. Avoid Repaired Grilles: Be wary of grilles that show signs of plastic welding or epoxy repairs on the back. These repairs may not hold up over time.

Installation Overview

Replacing the grille on a 2010-2017 Equinox is more involved than on many other vehicles because it requires the complete removal of the front bumper cover.

• Difficulty: 3/5
• Estimated Time: 1.5 - 2.5 hours
• Tools Required: T20 Torx driver, 7mm and 10mm sockets, ratchet, socket extensions, plastic trim removal tools, flathead screwdriver.

General Steps:

1. Open the hood and remove the upper radiator sight shield (held by push pins).
2. Remove the T20 screws along the top edge of the grille/bumper.
3. In each front wheel well, remove several push pins and T20/7mm screws to peel back the fender liner.
4. Remove the 7mm screw on each side that connects the bumper cover to the fender.
5. Disconnect fog light wiring, if equipped.
6. Carefully pull the sides of the bumper cover away from the vehicle to release the clips under the headlights.
7. With a helper, pull the entire bumper cover forward and away from the vehicle.
8. Place the bumper cover on a soft surface (like a blanket) and release the numerous tabs and retaining clips holding the old grille(s) in place from the back.
9. Install the new grille, ensuring every tab clicks securely into place before reinstalling the bumper cover.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Chevrolet related to the grille assembly on the 2010-2017 Equinox. Any issues are typically related to cosmetic wear or damage from external factors.
