2008-2025 Ford E-Series Grille: Black Textured vs. Chrome and Replacement Guide
This guide covers the common black textured grille for the Ford E-150, E-250, E-350, and E-450, explaining how to avoid buying the wrong version and how to inspect a used one.
- This grille (8C2Z8200B) is the black textured version; it is not a direct replacement for chrome or paint-to-match styles.
- When buying used, the most critical inspection point is the three lower mounting tabs on the back of the grille, which are easily broken.
- Replacement is a simple DIY job that takes less than an hour with basic tools.
- There are no major recalls or TSBs for this part; it is a reliable and straightforward component.
Compatibility Warning: Black Textured vs. Chrome Grilles
Warning: This guide focuses on the black textured version of the grille, commonly identified by Ford part numbers 8C2Z8200B and 8C2Z8200BCP. Ford E-Series vans were also available with a chrome grille (part number 9C2Z8200AA) or a paint-to-match version. While the grilles are physically interchangeable, they are not direct cosmetic replacements. If your van originally came with a chrome or painted grille, installing a black textured one will change its appearance. Always verify the finish of the part you are buying.
Symptoms of a Failing or Damaged Grille
Failure of a grille is almost always due to physical damage or environmental exposure. There are no mechanical or electrical symptoms. Look for these common signs:
- Cracks or Fractures: Impacts from road debris or minor collisions are the most common cause of cracks. These often appear around the Ford emblem or near the mounting points.
- Broken Mounting Tabs: The grille is held in place by several plastic clips and tabs. If these break, the grille can become loose, rattle, or even fall off. The lower tabs are particularly susceptible to being broken if the grille is removed improperly.
- Fading and Discoloration: The black textured plastic can fade to a dull gray over time due to sun and UV exposure. This is a cosmetic issue but indicates the plastic may be becoming more brittle.
- Missing Pieces: In more severe impacts, entire sections of the grille's mesh or frame can break away, leaving the radiator and condenser exposed to damage.
Buying a Used Grille: What to Inspect
A used OEM grille is often a better choice than a cheap aftermarket one because it guarantees a perfect fit. However, you must inspect a used part carefully before buying. Here’s what to check:
- All Mounting Points Intact: This is the most critical check. There are four push-pin style clips on top, a 10mm bolt in the center, and three pressure clips on the bottom. Carefully inspect the three lower tabs on the back of the grille. These are often broken during removal. If they are cracked or missing, the grille will not sit securely at the bottom.
- No Major Cracks: Examine the entire surface, especially the thin bars of the mesh and the area surrounding the emblem. Small surface scuffs are normal, but deep cracks can spread and compromise the grille's structure.
- Check for UV Damage: Look for chalky, gray fading. While some fading is expected on a used part, extreme discoloration suggests the plastic is aged and may be brittle.
- Verify the Finish: Confirm you are buying the correct version for your needs—black textured, chrome, or primed for paint. Ask the seller for the part number if possible.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA related to the grille on the 2008-2025 E-Series platform. The part is a simple, non-mechanical component with a reliable history. The most significant known issue is buyer confusion between the black textured, chrome, and paint-to-match variants, leading to incorrect orders.
Replacement Guide (DIY)
Replacing the grille is a straightforward job that most DIYers can complete in under an hour with basic tools.
Pro Tip: Apply a few strips of masking tape along the top edge of your bumper before you start to prevent scratches while removing and installing the grille.
Tools Needed:
- Flathead screwdriver or trim removal tool
- 10mm socket and ratchet
Step-by-Step Instructions:
- Open the Hood: You need to access the top of the grille.
- Remove Top Fasteners: Use a flathead screwdriver to pry up the center pin of the four plastic retainer clips along the top edge of the grille, then pull the clips out.
- Remove Center Bolt: Use a 10mm socket to remove the single bolt located in the center top of the grille.
- Release Bottom Clips: The top of the grille will now be free. Gently pull it forward to create a gap. Look down behind the grille to locate the three lower retaining clips (one on each end and one in the middle). You need to press down on the tab of each clip to release it from the vehicle's frame. A long screwdriver can be helpful here. Be patient to avoid breaking the tabs.
- Remove the Grille: Once all three bottom clips are released, you can carefully pull the grille away from the vehicle.

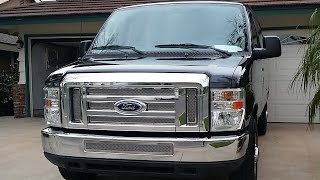

- Installation: To install the new grille, first align and insert the three bottom tabs into their slots, ensuring they click securely into place. Then, tilt the grille up and reinstall the top center bolt and the four plastic clips. 🎬 See this step-by-step walkthrough for installing your new grille.
Cost Comparison for a Ford E-Series Grille
| Part Type | Estimated Cost |
|---|---|
| New OEM (Ford) | $340 - $510 |
| New Aftermarket | $190 - $300 |
| Used OEM | $100 - $250 |
| Shop Labor | $50 - $120 |
Frequently Asked Questions
Will this black grille fit my van that came with a chrome one?
Yes, the physical fitment and mounting points are identical across all 2008-2025 E-Series models. However, the appearance will be different. This part (8C2Z8200B) is textured black plastic, not shiny chrome.
How difficult is it to replace the grille myself?
It is an easy job, rated 1 out of 5 in difficulty. It requires only basic hand tools and can typically be done in 30-60 minutes. The trickiest part is releasing the bottom clips without breaking them.

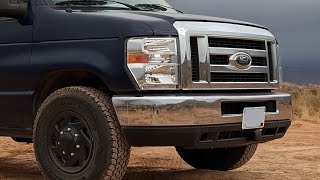

🎬 Watch: A quick demonstration of how to remove the grille.Can I paint the black textured grille to match my van's color?
While it is technically possible, painting textured plastic is difficult and requires extensive prep work (sanding, adhesion promoters, and flex agents) for the paint to stick properly and not flake off. For a paint-to-match finish, it is better to purchase the specific primed version of the grille designed for painting.
Does the grille come with a new Ford emblem?
Typically, no. Both new and used grilles are usually sold without the Ford oval emblem. You will need to carefully remove the emblem from your old grille and transfer it to the new one. The emblem is often held on by clips or adhesive.
🎬 Learn how to easily swap or replace your Ford emblem.Helpful Videos
Technical Specifications
OEM Part Numbers: 8C2Z8200B 8C2Z8200BCP
Material: Plastic, Finish: Black Textured
