2019-2025 Ford Ranger Grille: A Guide to Trim Levels, Cameras, and Swaps

Grille Variations: The Definitive Compatibility Guide

Choosing the correct grille for a 2019-2025 Ford Ranger is more complicated than it appears. Fitment depends on the model year, trim level (XL, XLT, Lariat), special packages (Sport, Black Appearance), and whether the truck is equipped with a front-facing camera. Using the wrong grille can result in poor fit, mismatched appearance, or disabled safety features.

First Generation (2019-2023)

This generation has several distinct styles. While many can be physically swapped, the appearance will be incorrect if not matched to the original trim.

• XL: The base model grille is typically a simple black or dark gray plastic without chrome or painted accents.
• XLT: The standard XLT grille features a matte silver surround with a black honeycomb or bar-style center. The OEM part number for the silver, non-bar style is KB3Z-8200-D.
• XLT Sport: The Sport Appearance Package often includes a grille with a Magnetic Gray painted surround and center bars.
• Lariat: The Lariat trim comes with a more premium grille, often featuring chrome or gloss black elements. Part number KB3Z-8C324-BA corresponds to an 'Absolute Black' Lariat grille.
• Lariat Black Appearance Package: This package includes a specific gloss black, 2-bar style grille. The correct OEM part number is MB3Z-8C324-BA.
• Tremor / Ford Performance: Special models like the Tremor and aftermarket Ford Performance kits feature a 'Raptor-style' grille with large "FORD" block lettering instead of the blue oval emblem.
🎬 Watch: Step-by-step installation of a Raptor-style grille kit.

Second Generation (2024-2025)

The 2024 redesign brought all-new grille designs and a critical new compatibility factor: the front-facing camera.

• XL / XLT (Without Camera): The common grille for lower trims without the camera is part number N1WZ-8200-H. It features a textured black finish.
• Lariat / Upper Trims (With Camera): Grilles for these models will have a visible cutout and mounting provisions for the camera. Part numbers like N1WZ-8200-FB are significantly more expensive, likely due to the added complexity.
• Raptor: The high-performance Ranger Raptor has a unique, wider grille with "FORD" lettering that is not interchangeable with any other trim level.

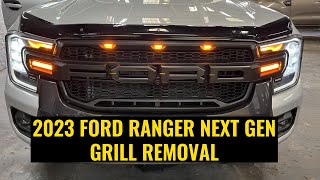

🎬 See how to remove and install the Next Gen grille.

Symptoms of a Damaged Grille

Because a grille is a static body part, 'failure' almost always means physical damage. Symptoms are typically visual.

• Cracks, Holes, or Missing Pieces: This is the most common symptom, usually caused by impacts from road debris or minor collisions.
• Broken Mounting Tabs: The plastic tabs that hold the grille to the bumper cover and radiator support can become brittle and break, leading to a loose, rattling, or misaligned grille.
• Peeling or Faded Finish: The paint, chrome, or plastic finish can degrade over time due to sun exposure and weather, resulting in a poor appearance.
• ADAS Warning Lights: On models with integrated sensors, damage to the grille or improper installation can misalign a camera or radar unit, triggering warning lights on the dashboard and disabling features like adaptive cruise control or pre-collision assist.

Buying a Used 2019-2025 Ford Ranger Grille: What to Check

A used OEM grille is often a better choice than a cheap aftermarket one, as it guarantees correct fitment, material quality, and color match. However, you must inspect it carefully before buying.

1. Verify the Part Number and Fitment: This is the most critical step. Use the guide above to match the grille's style (honeycomb, 2-bar, etc.) and color to your truck's year and trim level. For 2024+ models, double-check for the camera mount. If possible, get the OEM part number from the seller.
2. Inspect All Mounting Tabs: Carefully examine the back of the grille. Ask the seller for clear, high-resolution photos of every mounting point. Even one or two broken tabs can cause the grille to fit loosely or vibrate. This is the most common reason a used grille is sold.
3. Check for Cracks and Stress Marks: Look for hairline cracks, especially around the screw holes and tab bases. These indicate the part was stressed during an impact or removal and may fail completely during installation.
4. Examine the Finish: Look for deep scratches that go through the paint or chrome, significant rock chipping, and any signs of peeling on chrome-plated versions. A used part will have minor wear, but avoid grilles with widespread cosmetic damage.
5. Confirm Camera/Sensor Brackets are Intact: If buying a grille for a vehicle with ADAS, ensure the molded brackets that hold the camera or sensors are not cracked or broken.

Cost Comparison for Ford Ranger Grilles

Grille Replacement Overview

Replacing the grille on a 2019-2025 Ford Ranger is a manageable DIY project for those with basic tools. The process takes approximately 1-2 hours.

Tools Required:

• Socket set (typically 8mm and 10mm sockets)
• Trim removal tool kit
• Flathead screwdriver
• Torx bit set (on some models)

General Steps (2019-2023 Models):

1. Open the hood and remove the plastic radiator sight shield/shroud by removing the push pins and any screws holding it in place.
2. Unscrew the bolts (usually 10mm) from the top of the grille.
3. If applicable, disconnect any wiring harnesses for active grille shutters or sensors.
4. Carefully release the clips securing the bottom and sides of the grille to the bumper. This is the most delicate step. Use a trim tool or flathead screwdriver to gently depress the tabs while pulling the grille forward.
5. Once all clips are free, the grille can be removed from the vehicle.
6. Installation is the reverse of removal. Align the new grille, engage all the clips, reinstall the top bolts, reconnect wiring, and replace the radiator shroud.
