2018-2021 Lincoln Navigator Grille: Damage, Emblem Failures, and Replacement Guide
This guide covers common physical damage, a known issue with the illuminated emblem, and how to choose the correct used grille for your 2018-2021 Lincoln Navigator.
- The most critical compatibility check is for the front view camera; this grille is for models WITHOUT the camera.
- A flickering or dead illuminated emblem is a known issue covered by TSB 21-2050, which may be fixable by replacing only the emblem, not the entire grille.
- Replacement requires the complete removal of the front bumper cover, making it a time-consuming but feasible DIY job.
- When buying used, prioritize inspecting all mounting tabs on the back for cracks or breaks, as this is essential for proper fitment.
Symptoms of a Failing or Damaged Grille
Because the grille is at the very front of the vehicle, failure is almost always due to physical damage or electronic issues with the emblem. Here’s what to look for:
- Visible Cracks or Breaks: Impacts from road debris or minor collisions are the most common cause of failure. Look for cracks in the mesh pattern or, more critically, on the mounting tabs on the back of the grille.
- Peeling or Faded Finish: The chrome or painted finish can peel, bubble, or fade over time due to sun exposure and harsh weather. This is a cosmetic issue but can detract from the vehicle's appearance.

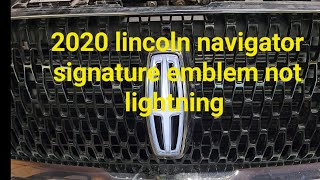

- Flickering or Inoperative Illuminated Emblem: Some Navigators may experience an issue where the Lincoln star emblem in the center of the grille flickers or stops lighting up entirely. 🎬 Watch: See what a failing signature emblem looks like. This is a known issue addressed by a Technical Service Bulletin.
- Broken Mounting Tabs: The plastic tabs that hold the grille to the bumper cover are essential for a secure fit. If these are broken, the grille can become loose, rattle, or even fall off.
Known Issues, TSBs, and Recalls
While there are no specific recalls for the grille itself, Ford has issued a Technical Service Bulletin (TSB) related to it.
TSB 21-2050: Flickering or Inoperative Illuminated Radiator Grille Emblem
Some 2018-2020 Navigator vehicles may have a flickering or completely dead illuminated star in the grille. This is caused by a fault within the emblem unit itself. The official fix is to replace the radiator grille emblem (Part Number LL7Z-8213-A). According to the TSB, the repair takes approximately 1.4 hours for a professional technician on models without the 360-degree camera.
Pro Tip: Behind the main grille are the Active Grille Shutters, which automatically open and close. While inspecting your grille, also look through it to check the shutters for any visible damage, as debris that broke the grille may have also harmed the shutter assembly.
Buying a Used 2018-2021 Navigator Grille: What to Check
A used OEM grille is an excellent way to restore your Navigator's appearance for less than the cost of a new part. However, careful inspection is key. Here’s a detailed checklist:
- Verify Camera Compatibility: This is the most important step. This guide and the listed part numbers are for Navigators WITHOUT the front view camera. A grille for a camera-equipped model will have a specific cutout and mounting provisions below the emblem. Ensure the grille you are buying does NOT have this feature.
- Inspect All Mounting Points: Carefully flip the grille over and inspect every single mounting tab and clip location. These are often the first things to break during an impact or careless removal. Even one broken main tab can cause fitment issues or rattling.
- Check for Hidden Cracks: Examine the entire surface, especially around the emblem and where the mesh meets the outer frame. Hairline cracks can be hard to spot but can grow over time. Flex the grille slightly to see if any hidden cracks appear.
- Examine the Finish: Look at the chrome or painted surface under bright, direct light. Check for signs of peeling, bubbling, or deep scratches that go through the finish. Minor scuffs may be acceptable, but peeling chrome requires a full replacement.
- Ask About the Emblem: If you are buying a grille that includes the illuminated emblem, ask the seller if it was tested and is known to be working. Given the known TSB, it's a potential point of failure.
Replacement Information
Replacing the front grille on a 2018-2021 Lincoln Navigator is a moderately difficult job that requires removing the entire front bumper cover. 🎬 See this walkthrough on how to remove the front bumper. While it doesn't require highly specialized tools, it is labor-intensive and requires patience to avoid scratching the paint.
The general process involves:
- Removing numerous plastic push clips and screws from the top of the bumper cover and inside the wheel wells.
- Partially pulling back the wheel well liners to access three 10mm bolts on each side that secure the bumper to the fenders.
- Carefully pulling the sides of the bumper cover away from the vehicle to release the clips.
- Disconnecting any electrical connectors for sensors and the washer hose for the camera sprayer (if equipped) before fully removing the bumper.
- Once the bumper cover is off, the grille is held in by a series of clips and screws from the back.
Warning: The front bumper cover is large and flexible. It is highly recommended to have a second person to help with removal and installation to prevent dropping it and scratching the paint. Place the bumper on a soft blanket or cardboard once removed.
| Item | Detail |
|---|---|
| DIY Difficulty | 3 out of 5 |
| Estimated Time | 2 - 3 hours for DIY, 1.4 hours for professional (TSB 21-2050). |
| Is DIY Feasible? | Yes, for mechanically inclined individuals with basic tools. |
Cost Comparison
Prices for a 2018-2021 Navigator grille can vary significantly based on the source. Here is an estimated breakdown:
| Part Type | Estimated Cost |
|---|---|
| New OEM | $370 - $570 |
| New Aftermarket | $280 - $370 |
| Used OEM | $450 - $720 (Varies by condition) |
| Shop Labor | $210 - $350 |
Frequently Asked Questions (FAQ)
Will this grille fit my Navigator if it has the 360-degree camera system?
No. This specific grille and its associated part numbers are for models WITHOUT the front-facing camera. A model with the camera will have a different grille with a dedicated opening for it.
My Lincoln emblem is flickering. Do I need to replace the whole grille?
No, not necessarily. The illuminated emblem can often be replaced separately. Ford issued TSB 21-2050 for this exact issue, and the fix is to replace only the emblem 🎬 Watch: Step-by-step guide to replacing the illuminated star emblem. (Part LL7Z-8213-A). However, accessing it still requires removing the front bumper cover.
Is it difficult to replace the grille myself?
It is a moderately complex job. The main challenge is that the entire front bumper cover must be removed to access the grille. This involves many clips and screws and carries a risk of scratching paint if not done carefully. It is feasible for a patient DIYer, but a novice may find it challenging.
Are aftermarket grilles a good option?
Aftermarket grilles can be a cost-effective alternative, and some offer different styles like all-black finishes. However, fit and finish can sometimes be inconsistent compared to an OEM part. For best results and guaranteed fitment, a new or used OEM grille is recommended.
Helpful Videos
Technical Specifications
OEM Part Numbers: JL7Z-8200-AB JL7Z-8200-AA JL7B-8200-AE JL7B8200BEW
Designed for models without the front view camera option. May be equipped with an illuminated center emblem.
