2017-2023 Land Rover Discovery Grille Shutter Actuator: Diagnosing Failures and Replacement Guide
This guide covers the common symptoms, known issues, and replacement costs for the active grille shutter assembly on the 2017-2023 Land Rover Discovery.
- The most common symptom of failure is a Check Engine Light with codes P05A0 or P059F.
- Replacement is a complex job (Difficulty 4/5) because the entire front bumper must be removed.
- Aftermarket new parts are generally not available, making used OEM the primary cost-saving alternative to new OEM.
- Before buying parts, always check for simple obstructions like rocks or debris, which can cause the same symptoms.
Symptoms of a Failing Grille Shutter Actuator
A problem with the grille shutter actuator on a Land Rover Discovery will typically make itself known through a few distinct signs. The most common is a warning light on your dashboard.
Check Engine Light
The most frequent symptom is an illuminated Check Engine Light. The vehicle's computer monitors the shutter system, and if the actuator motor fails or the shutters get stuck, it will log a fault code. Common diagnostic trouble codes (DTCs) associated with this issue include:
- P05A0: Active Grille Air Shutter 'A' Stuck On
- P059F: Active Grille Air Shutter 'A' Performance/Stuck Off
A technician can confirm the issue by reading these codes with an OBD-II scanner.
Physical and Performance Symptoms
- Engine Overheating: If the shutters fail in the closed position, they can block airflow to the radiator. This may cause the engine to run hotter than normal or overheat, especially in stop-and-go traffic.
- Longer Engine Warm-Up Time: If the shutters are stuck open, the engine may take longer to reach its normal operating temperature, particularly in cold weather. This can lead to slightly reduced fuel economy.
- Visible Damage or Obstruction: Road debris, ice, or a minor front-end impact can physically break the plastic louvers or linkage. Sometimes, an object like a rock or plastic bag can simply get lodged in the mechanism, preventing it from moving.
- Unusual Noises: A 'clunk' noise from the front of the vehicle when the engine is turned off may be related to the shutter system. You might also hear rattling or grinding sounds if the assembly is broken and loose.
Known Issues, TSBs, and Recalls
While there are no specific recalls for the grille shutter actuator on the 2017-2023 Discovery, Land Rover has issued a Technical Service Bulletin (TSB) that addresses a related problem.
TSB LTB00983NAS2: This bulletin addresses a 'clunk' noise that may be heard from the front of the vehicle when the engine is switched off. The cause is identified as a potential interference between the active grille and the cooling module's lower air duct. The repair procedure involves replacing the lower air duct and requires the removal of the front bumper and the lower active grille shutter assembly.
Pro Tip: Before assuming the actuator motor has failed, perform a thorough visual inspection. Often, a piece of road debris lodged in the shutter mechanism is the root cause of the problem and can be removed without replacing any parts.
Buying a Used Grille Shutter Actuator: What to Check
Since new aftermarket versions for the Land Rover Discovery are not readily available, a used OEM part is a common and cost-effective choice. The entire assembly, including the louvers and the motor/actuator, is typically sold as one unit. When buying a recycled part, careful inspection is key.
- Inspect the Louvers: Check each plastic louver for cracks, breaks, or signs of stress. They should all be straight and uniform. Minor scuffs are cosmetic, but any cracks can compromise the part.
- Check the Linkage: The louvers are connected by a plastic linkage that allows them to move in unison. Ensure this linkage is intact and that all louvers are still connected to it. If the linkage is broken, the part is defective.
- Test for Free Movement: Gently try to move one of the louvers by hand. They should all pivot together smoothly and without binding. If they feel stuck or gritty, the mechanism may be damaged internally or the motor could be seized.
- Examine the Motor and Connector: Look at the actuator motor housing for any cracks or signs of heat damage. Ensure the electrical connector is clean, with no bent or corroded pins.
- Verify Part Numbers: Match the OEM part number on the used unit to your original part. The primary part number is LR082883. You may also see HY328475A, which is a component manufacturer number.
Replacement Overview
Replacing the grille shutter assembly on a 2017-2023 Land Rover Discovery is a complex task primarily because it requires the complete removal of the front bumper cover.
Difficulty: 4 out of 5 (Advanced DIY / Professional)
The general steps are as follows:
- Open the hood and remove the upper radiator grille.
- Raise the vehicle and remove the front wheels to gain access to the wheel wells.
- Remove the fender liners and wheel arch extensions on both sides.
- Disconnect all bolts, clips, and fasteners securing the bumper cover underneath the vehicle and in the wheel wells.
- Carefully disconnect the main wiring harness for parking sensors and fog lights, as well as the headlight washer hoses. Be prepared for washer fluid to leak out.
- With a helper, pull the bumper cover away from the vehicle.
- With the bumper removed, the grille shutter assembly is now accessible. Disconnect its electrical connector and unbolt it from the radiator support.
- Installation is the reverse of removal. After installation, a scan tool may be needed to clear the stored fault codes.
Warning: The front bumper cover is large and easily scratched. It is highly recommended to have a helper and to place the bumper on a soft blanket or mat after removal to prevent damage.
Cost to Replace a Discovery Grille Shutter Actuator
The cost can vary significantly based on whether you use new or used parts and whether you perform the labor yourself.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Assembly | $300 - $380 |
| Used OEM Assembly | $125 - $200 |
| New Aftermarket | Not generally available |
| Shop Labor | $450 - $650 (estimated 3-4 hours) |
| Total Professional Replacement (New OEM) | $750 - $1,030 |
| Total Professional Replacement (Used OEM) | $575 - $850 |
Frequently Asked Questions (FAQ)
Can I drive my Discovery with a broken grille shutter?
Yes, but with caution. If the shutters are stuck open, the main consequences are a persistent check engine light and slightly longer engine warm-up times. If they are stuck closed, you risk engine overheating, especially in warm weather or heavy traffic. It is best to get the issue repaired to avoid potential engine damage.
Is replacing the grille shutter actuator a DIY job?
For most home mechanics, this is a difficult job. The part itself is easy to swap once you get to it, but removing the front bumper cover on a modern Land Rover is a complex process with many hidden clips and fasteners. It is rated as a 4 out of 5 on the difficulty scale and is best left to experienced DIYers or a professional shop.
Why does my car need active grille shutters?
They serve two main purposes. First, they close at highway speeds to make the car more aerodynamic, which helps improve fuel economy. Second, they stay closed when the engine is cold to block airflow, helping the engine warm up to its most efficient temperature more quickly.
Will replacing the actuator fix the check engine light?
Yes, if the actuator was the cause of the fault code. After replacing the part, the code will need to be cleared from the vehicle's computer using an OBD-II scan tool. In some cases, after a number of successful drive cycles, the light may turn off on its own, but clearing it with a scanner is the correct procedure.
Technical Specifications and Part Numbers
OEM Part Numbers
- LR082883 (Land Rover)
- HY328475A (Manufacturer)
Key Specifications
- Part Type: Active Grille Shutter Assembly
- Location: Front of vehicle, behind main grille, mounted to radiator support
- Control: Electronic actuator motor
- Common Applications: 2.0L and 3.0L engines in the 2017-2023 Discovery
Technical Specifications
OEM Part Numbers: LR082883 HY328475A

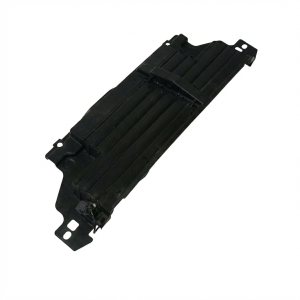

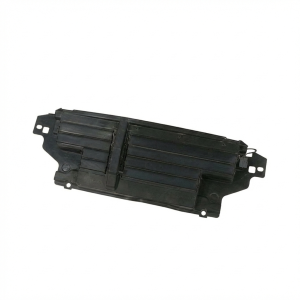

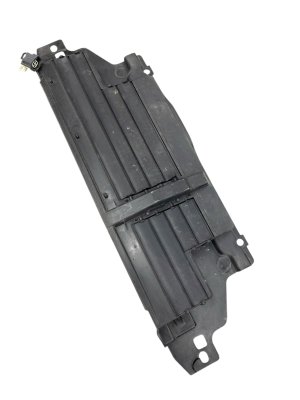

Fits 2017-2023 Land Rover Discovery models with 2.0L and 3.0L engines. Assembly includes louvers, frame, and integrated actuator motor.
