2006-2012 Toyota RAV4 Grille: A Buyer's Guide to Base, Sport & Limited Models
This guide details the critical differences between grilles for Base, Sport, and Limited trims, including the significant design change from the 2009 model year facelift.
- The grilles for Base/Sport models and Limited models are not interchangeable; you must buy the correct grille for your specific trim level.
- The grille design changed significantly in 2009. Parts for 2006-2008 models will not fit 2009-2012 models, and vice-versa.
- When buying a used grille, the most important inspection is to ensure all mounting tabs on the back are intact and not cracked.
- Replacement is a simple DIY project that typically takes about an hour with basic hand tools.
Key Differences: 2006-2008 vs. 2009-2012 Models
The third-generation Toyota RAV4 received a significant facelift for the 2009 model year, which included a redesigned front bumper and grille. Because of this, grilles are not interchangeable between the early (2006-2008) and late (2009-2012) models. Furthermore, within each date range, the grille for the Limited trim is different from the one used on Base and Sport models.
2006-2008 RAV4 Grille Variants
For the initial third-generation models, the primary difference was in the finish and style between the standard trims and the upscale Limited model.
- Base / Sport Models: Typically featured a simple, unpainted or dark gray plastic grille with a horizontal bar design.
- Limited Models: Distinguished by a grille with chrome accents, offering a more premium appearance.
2009-2012 RAV4 Grille Variants
The 2009 facelift brought a new grille design that was more integrated with the headlights. The trim-level differences remained a key factor for compatibility.

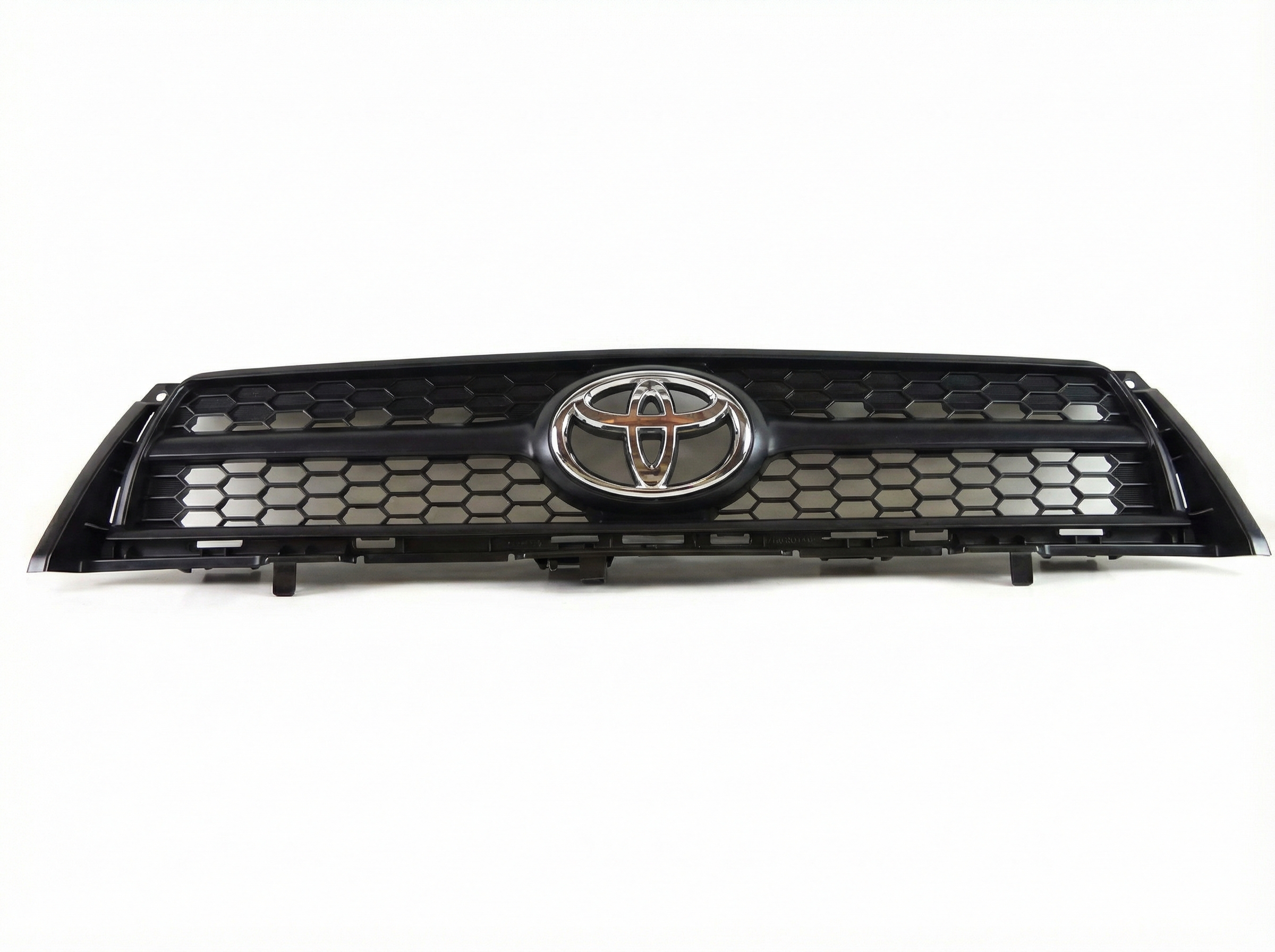

- Base / Sport Models: These models use a grille with a black textured finish and a single main horizontal bar. They are not compatible with Limited models.
- Limited Models: The Limited trim features a distinct grille, often with a chrome-plated frame or bars, that will not fit the bumper opening of a Base or Sport model.
Warning: The single most common mistake when buying a replacement grille for this RAV4 is purchasing the wrong one for your trim level. A Limited grille will not fit a Base or Sport model, and vice-versa. Always confirm the seller's description matches your vehicle's specific trim.
Symptoms of a Failing Grille
Failure of a grille is almost always due to physical damage rather than mechanical wear. Common symptoms include:
- Visible Cracks or Holes: The most obvious sign is impact damage from road debris or a minor collision.
- Broken Mounting Tabs: The plastic tabs that hold the grille to the bumper cover can become brittle and break, causing the grille to become loose, rattle, or fit poorly.
- Peeling or Faded Finish: On Limited models, the chrome plating can peel, bubble, or pit over time. On Base models, the black plastic can fade to a light gray due to UV exposure.
- Missing Emblem: The Toyota emblem in the center can be broken off or stolen.
Buying a Used Grille: What to Check
A used OEM grille is often a better choice than a cheap aftermarket one due to superior fit, material quality, and durability. Before purchasing, inspect the following:
- Confirm Trim and Year Range: Get photos of the front and back of the grille. Compare its design (number of bars, chrome vs. black) to your existing grille to ensure it's for the correct model year (2006-2008 or 2009-2012) and trim level (Base/Sport or Limited).
- Inspect All Mounting Tabs: This is the most critical inspection point. Carefully check that all plastic clips and tabs on the back and sides of the grille are present and free of cracks. Even one broken tab can cause a poor fit or rattling.
- Check for Hairline Cracks: Look closely at the entire surface, especially around the screw holes and emblem area, for small cracks that could worsen during installation or from vibration.
- Examine the Finish: If buying a chrome Limited grille, check for any signs of peeling, bubbling, or deep scratches. For a black grille, check for significant UV fading or discoloration.
Pro Tip: The large openings on the lower grille of the RAV4 can allow rocks to damage the A/C condenser, leading to a costly repair. When replacing your grille, consider adding a layer of black mesh behind it to provide extra protection without significantly impeding airflow.
🎬 Watch: How to install a DIY stone guard for protection.Known Issues, TSBs, and Recalls
There are no official recalls or Technical Service Bulletins (TSBs) from Toyota related to the front grille for the 2006-2012 RAV4. Any issues with the grille, such as breakage or cosmetic flaws, are considered the result of normal wear, environmental exposure, or impact damage.
Replacement Difficulty & Labor Costs
Replacing the grille on a 2006-2012 RAV4 is a straightforward job suitable for a DIYer with basic tools.
- Difficulty: 2 out of 5
- Estimated Time: 0.5 - 1 hour
- Tools Needed: Phillips head screwdriver, 10mm socket, ratchet, and a plastic trim removal tool.
The general process involves opening the hood and removing the plastic push clips and any screws securing the top of the bumper cover and grille. You may need to gently pull the sides of the bumper cover away from the fenders to access all the grille's retaining clips. The old grille is then unclipped from the bumper cover, and the new one is snapped into place before reassembling.
🎬 Watch this step-by-step guide on replacing your RAV4 grille.Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $110 - $200 |
| New Aftermarket | $30 - $150 |
| Used OEM | $75 - $150 |
| Shop Labor | $75 - $150 |
OEM Part Numbers
The following are known OEM part numbers for this generation. Note that a single part number may have been superseded by a newer one. Always verify fitment with the seller using your vehicle's VIN.
| Part Number | Description | Probable Fitment |
|---|---|---|
| 53101-0R010 | Grille Assembly | 2009-2012 Base & Sport (2.5L) |
| 53101-42150 | Grille Assembly | 2006-2008 Models |
| 53101-42190 | Grille Assembly | Likely Limited trim variation |
| 53112-42050 | Grille Moulding | Component part, likely for lower grille area | 🎬 See how to replace the lower grille trim molding.
| 53113-42040 | Grille Moulding | Component part, likely for lower grille area |
| 75317-42010 | Grille Emblem | Emblem for various years/trims |
Frequently Asked Questions (FAQ)
Can I install a Limited grille on my Base or Sport model for an upgraded look?
No, the grilles are not directly interchangeable between trim levels. The shape of the grille and its mounting points are designed to fit the specific bumper cover of either the Base/Sport or the Limited trim. To perform this conversion, you would need to replace the entire front bumper cover as well.
How do I remove the Toyota emblem to paint it or replace it?
The emblem is typically held in place by clips on the back of the grille. Once the grille is removed from the vehicle, you can access the back and gently squeeze the clips with pliers while pushing the emblem out from the front.
Is it better to buy a used OEM grille or a new aftermarket one?
For a part like a grille where fit and finish are important, a used OEM grille in good condition is often the superior choice. It guarantees perfect alignment with the bumper and headlights. While some high-quality aftermarket grilles fit well, cheaper alternatives are notorious for having misaligned clips, gaps, and using plastic that fades or becomes brittle quickly.
Does the grille need to be replaced if it's just cracked?
Functionally, a small crack does not prevent the grille from allowing airflow. However, a crack can compromise the structural integrity of the grille, making it more susceptible to further damage from minor impacts. It is primarily a cosmetic issue, but replacement is recommended for a clean appearance and to prevent rattling or looseness.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53101-0R010 53101-42150 53101-42190 53112-42050 53113-42040 75317-42010 53101-42220
Material: Plastic (ABS), Finish: Textured Black (Base/Sport) or Chrome Accents (Limited)
