2015-2017 Toyota Sienna Grille: Decoding Trim Levels and the Pre-Collision Sensor
This guide details the critical differences between LE, SE, and XLE/Limited grilles to ensure you buy the correct part and avoid safety system errors.
- Compatibility is critical: You must match the grille to your Sienna's trim level (LE, SE, XLE/Limited) and whether it has the Pre-Collision System (PCS) radar sensor.
- Using the wrong grille on a PCS-equipped van will block the sensor and disable the safety system, causing a dashboard warning.
- Replacement is very easy and DIY-friendly, requiring only a trim tool and about 20 minutes.
- When buying used, the most important things to check are the mounting tabs; broken tabs will result in a poor fit.
Grille Variants: A Critical Guide to Compatibility
Choosing the correct grille for a 2015-2017 Toyota Sienna is more complicated than just matching the year. Toyota used different grilles for various trim levels and optional safety packages. Installing the wrong grille can result in a poor fit or, more seriously, disable your vehicle's pre-collision safety system.
Warning: The most important factor is whether your Sienna is equipped with the optional Pre-Collision System (PCS) or Dynamic Radar Cruise Control. The radar sensor for this system is located behind the Toyota emblem in the grille. Grilles for vehicles with this system are different from those without it. Using a standard grille on a vehicle with PCS can block the radar sensor, causing a 'Pre-Collision System Malfunction' warning and disabling the safety feature.
Trim Level Differences
- LE Models: The LE grille features horizontal bars with painted inserts. The specific part number for an LE without the pre-collision system is 53101-08020-A1, which has white-painted inserts.
- SE Models: The sporty SE trim has a unique black honeycomb or mesh-style grille, giving it a more aggressive look. Aftermarket 'SE Style' grilles are a popular upgrade for other trims.
- XLE & Limited Models: These higher trims typically feature a grille with four silver-painted horizontal bars and a chrome lower molding. Like the LE, there are separate versions for models with and without the pre-collision system. The part number for a Limited grille without the sensor is 53111-08080.
Symptoms of a Damaged Grille
Since the grille is a static, cosmetic body part, 'failure' is always due to physical damage. There are no associated fault codes or electronic symptoms unless a collision damages the radar sensor behind it.
- Visible Cracks or Breaks: The most common symptom, usually caused by impacts from road debris, animals, or minor collisions.
- Peeling or Pitted Chrome: The chrome accents can degrade over time from weather and road salt, leading to a poor appearance.
- Broken Mounting Tabs: Tabs can break during a collision or from improper removal, resulting in a loose, rattling, or misaligned grille.
- Faded or Chipped Paint: The painted sections, particularly on the LE model, can chip from rocks or fade from sun exposure.
Known Issues, Recalls, and TSBs
There are no recalls or Technical Service Bulletins (TSBs) issued by Toyota or the NHTSA specifically for the grille on 2015-2017 Toyota Sienna models. While the Sienna has recalls for other components like the sliding doors and airbags, the grille itself has proven to be a reliable part with no known manufacturing defects. Any issues you encounter will almost certainly be from external damage.
Buying a Used 2015-2017 Sienna Grille
A used OEM grille is an excellent way to save money, often providing better fit and durability than a cheap aftermarket alternative. However, a thorough inspection is essential before buying.
Inspection Checklist
- Verify Compatibility: This is the most critical step. Confirm the grille came from a Sienna with the same trim (LE, SE, XLE/Limited) and, most importantly, the same pre-collision system status (with or without) as your vehicle. Ask the seller for the VIN of the donor vehicle to be certain.
- Check All Mounting Tabs: Carefully inspect the top, bottom, and side mounting tabs. They are essential for a secure, rattle-free fit. Even one broken tab can cause alignment issues. Be especially wary of tabs that have been repaired with glue or epoxy, as they may not hold up.
- Examine the Chrome and Paint: Look for deep pitting, peeling, or bubbling on chrome surfaces. Minor scuffs may be acceptable, but widespread peeling means the part will need to be refinished or replaced again soon. Check painted surfaces for deep chips that go through to the black plastic underneath.
- Look for Hidden Cracks: Flex the grille slightly and inspect it under good light. Small cracks near mounting points or along the horizontal bars can be hard to spot but will grow over time.
Pro Tip: Pay close attention to the lower clips that attach to the bumper cover. These are not as visible as the top clips but are crucial for keeping the bottom edge of the grille flush with the bumper. A video of the replacement process shows these clips are simply pulled forward to release.

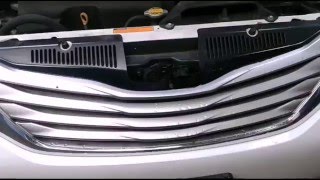

🎬 Watch this quick video showing how to release the clips.Cost Comparison
Prices for a 2015-2017 Toyota Sienna upper grille can vary significantly based on type and condition.
| Part Type | Estimated Price Range | Notes |
|---|---|---|
| New OEM | $160 - $300 | Price varies by trim. For example, the LE grille (53101-08020-A1) has an MSRP of about $232 but can be found for around $160 online. |
| New Aftermarket | $75 - $250 | Wide range of quality and fit. Brands like Dorman and Action Crash are common. |
| Used OEM | $80 - $200 | Highly dependent on condition, trim level, and seller. A good condition used part offers the best value. |
| Shop Labor | $50 - $100 | Replacement is very quick, typically taking less than 30 minutes. Many shops may charge a minimum one-hour labor fee. |
Replacement Guide
Replacing the upper grille is a straightforward task that most DIYers can complete with basic tools.
- Difficulty: 1/5 (Very Easy)
- Estimated Time: 15-20 minutes
- Tools Needed: Trim tool or small flathead screwdriver
Step-by-Step Walkthrough

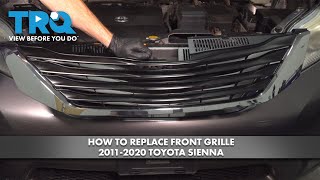

🎬 Follow this complete video walkthrough for a successful grille replacement.- Open the Hood: Secure the hood with the prop rod.
- Remove Upper Clips: Along the top of the grille and radiator support cover, there are several plastic push-clips. Use a trim tool or flathead screwdriver to gently pry up the center pin of each clip, then pull the entire clip out.
- Detach the Grille: With the top clips removed, firmly but carefully pull the entire grille assembly straight forward, away from the vehicle. This will release the lower retaining clips that secure it to the front bumper cover.
- Install the New Grille: Align the lower tabs of the new grille with the corresponding slots in the bumper cover. Push firmly until you hear or feel them click into place.
- Secure Upper Clips: Align the top of the grille with the radiator support and re-insert the push-clips you removed in step 2. Push the center pin down to lock each clip in place.
- Close the Hood: Close the hood and check for a secure fit.
Frequently Asked Questions (FAQ)
Can I install an SE mesh grille on my LE or XLE?
Yes, this is a popular cosmetic upgrade. Aftermarket SE-style grilles are widely available and are designed to fit all 2015-2017 Sienna trims. Just be sure to purchase one that is compatible with your vehicle's pre-collision system status (with or without the sensor).
My chrome trim is peeling. Do I have to replace the whole grille?

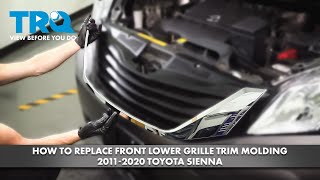

It depends. On some models, the lower chrome trim molding is a separate piece that can be unclipped and replaced independently. 🎬 See how to swap out just the lower chrome molding. However, on many aftermarket and some OEM versions, the trim is integrated into the main grille assembly, requiring a full replacement.
What happens if I buy the wrong grille for the pre-collision system?
If your van has the pre-collision system and you install a grille for a model without it, the solid plastic behind the emblem will block the radar sensor. This will trigger a 'Pre-Collision System Malfunction' warning on your dashboard and disable this important safety feature. If your van does NOT have the system, a grille with the sensor mount will fit but may look slightly different behind the emblem.
Is it difficult to replace the grille myself?
No, this is considered a very easy DIY job. The entire upper grille can be replaced in under 30 minutes with only a simple trim removal tool. The bumper cover does not need to be removed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53101-08020-A1 5310108020A1 5310108020C0 53111-08080
Material: Plastic. Finishes vary by trim level (e.g., painted inserts, chrome accents, mesh pattern).
