BMW Fog Light Guide (2004-2013): Avoiding the M-Sport vs. Standard Bumper Mistake

Symptoms of a Failing Fog Light Assembly

Because fog lights are mounted low on the bumper, they are susceptible to damage from road debris, moisture, and electrical issues. Here are the most common signs that your fog light assembly needs attention.

Dim or Flickering Light

A fog light that appears dim, flickers, or works intermittently often points to an electrical problem. This could be a failing bulb, but it can also indicate a corroded bulb socket or wiring harness. Over time, moisture can penetrate the assembly's seals, causing corrosion on the electrical contacts and leading to a poor connection.

Visible Moisture or Condensation

Finding water droplets or a foggy appearance inside the lens is a clear sign that the assembly's seal has failed. This is a very common issue. A crack in the housing or a degraded seal allows moisture to enter, which not only reduces light output but also accelerates corrosion of the reflector and electrical components, leading to eventual failure.

Cracked or Pitted Lens

The lens of the fog light assembly is constantly exposed to rocks, gravel, and other road debris. Over time, this can cause the lens to become cracked, chipped, or heavily pitted. A cracked lens will allow moisture in, while a pitted lens will diffuse the light beam, making it less effective.

"Fog Light Malfunction" Warning on Dashboard

BMW vehicles are equipped with a check control system that monitors the lighting circuits. If a bulb is burned out or there's a fault in the circuit (like a bad connection), the system will display a "Fog Light Malfunction" or a similar warning message on the instrument cluster or iDrive screen. This is often the first indication a driver has of a problem.

The Critical Difference: Standard vs. M-Sport Bumpers

The single most important factor when purchasing a replacement fog light for these BMW models is identifying the type of front bumper on the vehicle. BMW offered a standard bumper and an optional M-Aerodynamic or M-Sport package bumper. The fog lights for these two bumper types are not interchangeable.

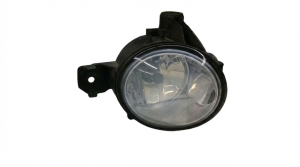

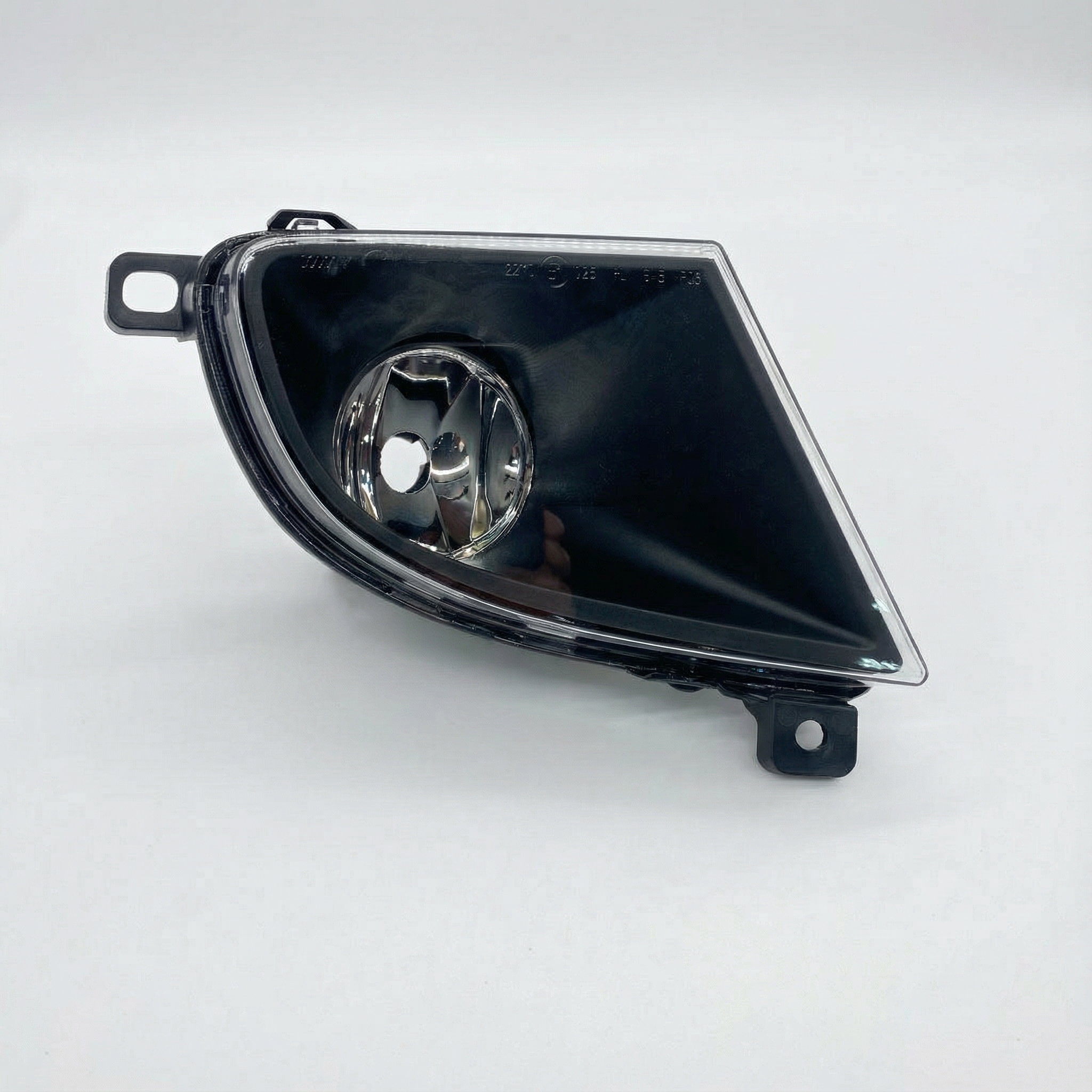

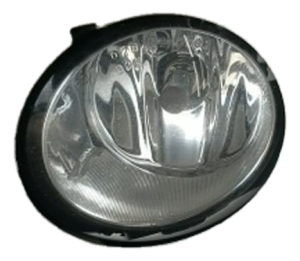

• Standard Bumper Fog Lights: These are typically larger and have a different shape than their M-Sport counterparts. Part numbers like 63176910791 (Left) and 63176910792 (Right) are common for standard bumpers on E60 5-Series and E63 6-Series models.

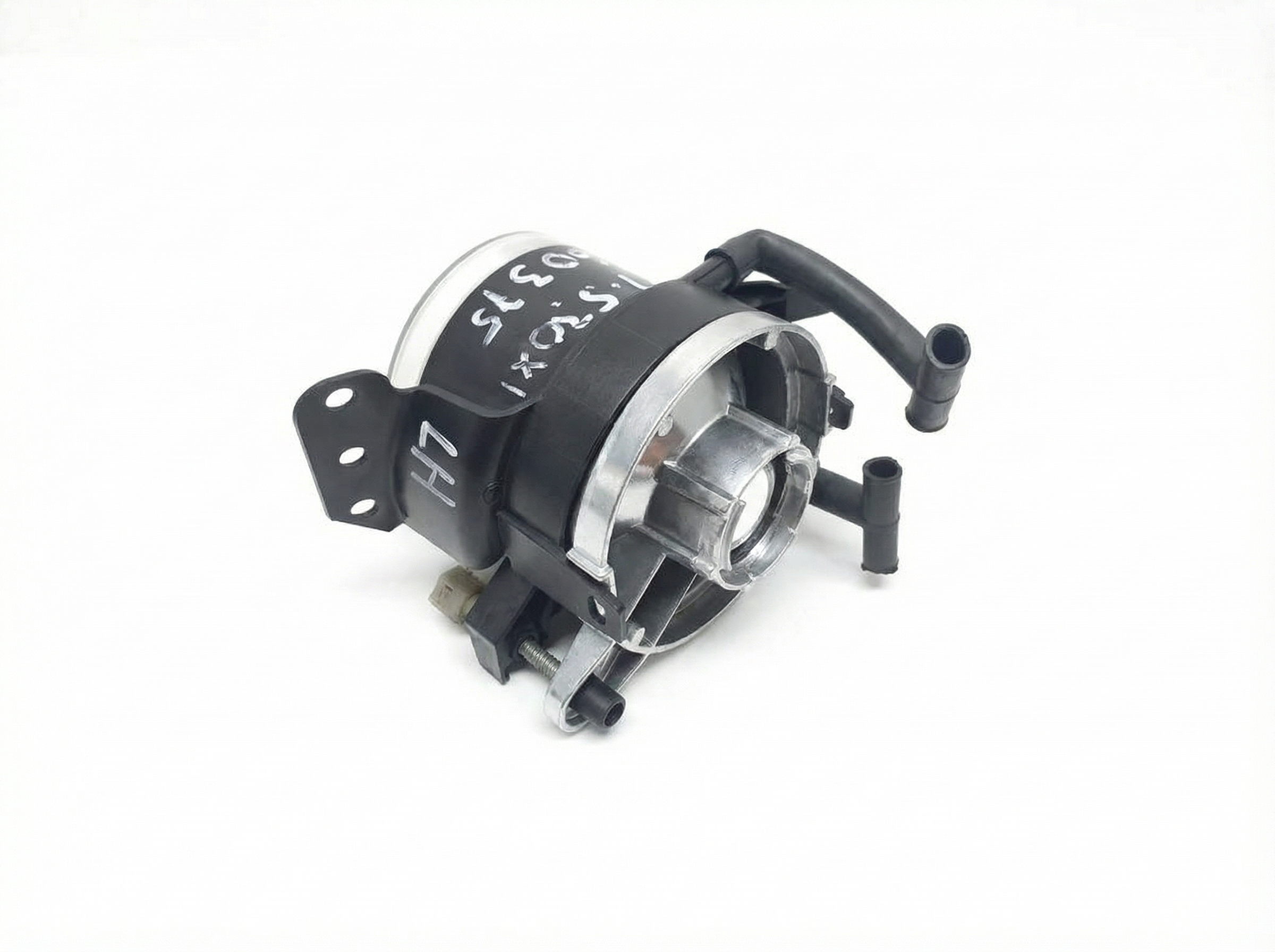

• M-Sport / M-Aerodynamic Package Fog Lights: These are designed to fit the more aggressive styling of the M-Sport bumpers. They often have a different shape and mounting points. Part numbers such as 63177897188 are specifically for E60 5-Series models with the M-Sport bumper. Another M-Sport related part number is 63177894018, which fits M-Technik packages on various models.

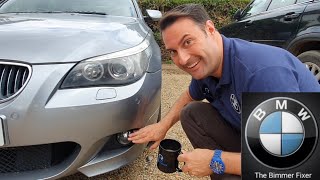

🎬 Watch: How to replace the fog light fixture on M-Sport bumpers.

Buying a Used Fog Light Assembly

A used OEM fog light can be a cost-effective alternative to a new part, but careful inspection is key to getting a quality component. Cheap aftermarket units often suffer from poor beam patterns, premature lens yellowing, and seals that fail quickly.

1. Inspect the Lens Thoroughly: Look for deep pits, stress cracks, or any signs of yellowing from UV damage. Minor pitting is normal, but deep chips can compromise the lens integrity.
2. Check All Mounting Tabs: The plastic mounting tabs are the most common point of failure. Ensure all tabs are present and free of cracks. A fog light with a broken tab will not mount securely and will vibrate or aim incorrectly.
3. Look for Signs of Moisture Intrusion: Check the inside of the lens for any dried water spots or a hazy film on the reflector. This indicates the seal has previously failed and the reflector's chrome surface may be damaged, which will reduce light output.
4. Verify the Part Number: This is the most crucial step. Cross-reference the part number on the used assembly with the correct number for your vehicle's specific bumper package (Standard or M-Sport) and side (Left/Driver or Right/Passenger).
5. Examine the Bulb Socket and Connector: Look for any green or white crusty residue, which indicates corrosion. A corroded socket can cause intermittent operation and may need to be replaced separately.

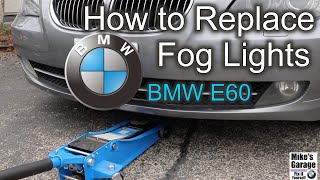

Replacement and Installation

Replacing a fog light assembly is a common DIY task that typically does not require removing the entire front bumper. Access is usually gained by removing a portion of the plastic fender liner in the wheel well.

The general steps are as follows:

1. Gain Access: Remove the screws or plastic rivets holding the front section of the fender liner in place and peel it back.

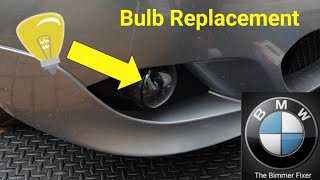

2. Disconnect the Bulb: Reach behind the bumper to the back of the fog light assembly. Disconnect the electrical connector from the bulb. The bulb itself is then typically removed with a quarter-turn.
3. Remove Mounting Screws: The fog light housing is usually held in place by two or three screws (often 8mm hex head or Torx T25). Remove these screws.
4. Install the New Assembly: Position the new fog light assembly and secure it with the mounting screws. Reconnect the electrical plug to the bulb.
5. Test and Aim: Before re-installing the fender liner, turn on the fog lights to ensure they are working. Once confirmed, the beam may need to be aimed. There is typically a small plastic adjustment screw on the housing that raises or lowers the beam. A common method is to park the car on a level surface 25 feet from a wall and adjust the beam so that the top of the cutoff is about four inches below the center of the fog light itself.
