2005-2007 Ford Five Hundred Headlight: Fixing Hazy Lenses, Moisture, and Replacement Guide

Headlight Variants for the 2005-2007 Ford Five Hundred

One of the simplest aspects of the Ford Five Hundred is its headlights. For the entire 2005-2007 production run, all trim levels (SE, SEL, and Limited) were equipped with the exact same type of headlight: a standard halogen assembly. There were no factory options for High-Intensity Discharge (HID/Xenon) or LED headlights. This makes sourcing a replacement, whether new or used, very straightforward as there are no compatibility issues between different trim packages.

Symptoms of a Failing Headlight Assembly

Failures in the headlight assembly are typically related to age and environmental exposure rather than mechanical breakdown. Here are the most common symptoms:

• Dim or Yellowed Light Output: Even with new bulbs, the light on the road appears weak, scattered, or has a yellowish tint. This is the most common symptom and is caused by lens hazing.
• Moisture or Condensation Inside the Lens: You may see water droplets, fog, or a persistent haze on the *inside* of the headlight lens. This indicates a failed seal and can lead to chronic bulb failure and corrosion.
• Visible Cracks or Physical Damage: Damage from road debris or a minor impact can crack the lens or break the mounting tabs, compromising the seal and the secure fit of the assembly.
• Flickering or Inoperative Lights: While often just a bad bulb, flickering can also be caused by a corroded bulb socket or wiring connector inside the assembly, which is common when moisture has been present.

Known Issues, Recalls, and TSBs

Lens Hazing and UV Degradation

The single most common issue with 2005-2007 Ford Five Hundred headlights is lens hazing. The polycarbonate lenses are originally coated with a protective UV film. Over years of sun exposure, this coating breaks down, allowing the plastic to oxidize. This creates a cloudy, yellowed, and sandblasted appearance that severely restricts light output, posing a significant safety risk. While polishing kits can temporarily improve clarity, replacement is often the only long-term solution for heavily degraded lenses.

Seal Failure and Moisture Intrusion

The second most common problem is the failure of the butyl rubber seal that joins the clear lens to the black plastic housing. As the seal ages, it can become hard, brittle, and crack. This allows water from rain and car washes to enter the assembly. The trapped moisture fogs the lens from the inside, corrodes the reflective chrome surfaces, and causes electrical sockets and bulbs to fail repeatedly. Once the seal has failed, it is very difficult to repair permanently, making a replacement assembly the most effective solution.

Recalls and Technical Service Bulletins (TSBs)

There are no active recalls or TSBs from Ford or the National Highway Traffic Safety Administration (NHTSA) specifically for the headlight assemblies on the 2005-2007 Ford Five Hundred. Recalls issued for this vehicle pertain to other issues, such as fuel tank straps and door latches.

Buying a Used 2005-2007 Five Hundred Headlight Assembly

Because these headlights are simple halogen units, a good-condition used OEM assembly is an excellent alternative to a more expensive new part and often superior in fit and quality to cheap aftermarket options. Here is what to inspect:

1. Lens Clarity: This is the most important check. Look for a clear, bright lens. Minor external haziness can be polished, but avoid any assembly with internal cloudiness, flaking, or heavy yellowing, as this cannot be repaired.
2. Mounting Tabs: Carefully inspect all mounting tabs—typically two on top and one or two on the side/bottom—for cracks or breaks. Broken tabs will prevent the headlight from being secured properly, leading to vibration and poor beam alignment.
3. Housing Integrity: Check the black plastic rear housing for any cracks, especially around the mounting points and seams. Signs of previous repair like epoxy or silicone are red flags.
4. Seal Condition: Examine the seam where the lens meets the housing. The seal should be intact and free of obvious gaps or cracks that would allow moisture inside.
5. Internal Reflectors: The chrome-plated reflectors inside should be shiny and free of corrosion, burn marks, or flaking, which are signs of moisture damage or excessive heat from incorrect bulbs.
6. Electrical Connectors: Ensure the main electrical connector port and the bulb sockets are clean, dry, and free of any green or white corrosion.

Cost of a 2005-2007 Ford Five Hundred Headlight Assembly

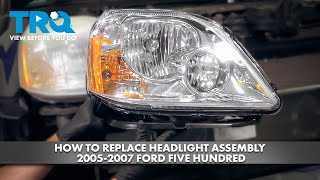

Replacement Overview and Headlight Aiming

Replacing the headlight assembly on a 2005-2007 Ford Five Hundred is a feasible DIY project for someone with basic tools and mechanical experience. The key challenge is that the front bumper cover must be partially removed to access all the bolts.

Basic Steps:

1. Open the hood and remove the plastic push pins holding the upper radiator cover.
2. Remove the screws in the front of each wheel well that secure the bumper cover to the fender.
3. Gently pull the sides of the bumper cover away from the fenders to release the clips. You do not need to remove the entire bumper; just create enough space to access the headlight bolts.
4. Unscrew the bolts securing the headlight assembly. There are typically two 10mm bolts on top and one or two more on the side or bottom that are now accessible.
5. Pull the assembly forward and disconnect the main electrical harness.
6. Twist and remove the turn signal socket from the old assembly to transfer it to the new one. Many replacement assemblies do not include this socket.
7. Installation is the reverse of removal. Test all lights before fully reassembling the bumper.
