Ford, Lincoln & Mercury Fog Light Guide (2006-2019): Fitment, Problems, and Replacement

Symptoms of a Failing Fog Light Assembly

A faulty fog light can be a safety issue in poor weather and may cause a vehicle to fail a state safety inspection. Here are the most common signs of a problem:

• Moisture or Condensation Inside the Lens: This is the most common failure. A compromised seal allows water to enter the housing, which can cause the reflective chrome surface to peel, short out the bulb, and create a foggy appearance from the inside.
• Dim or Flickering Light: A flickering light often points to a bad electrical connection, a failing bulb, or a problem with the fog light relay. Dim output can be caused by a hazy or yellowed lens, a failing bulb, or moisture inside the housing degrading the reflective surface.
• Fog Light Will Not Turn On: If a single fog light is out, the bulb has likely burned out. If both lights are out, the issue is more likely to be a blown fuse, a bad relay, or a faulty switch on the dashboard or steering column.
• Cracked or Damaged Lens: Being low to the ground, fog lights are susceptible to damage from rocks and other road debris. A cracked lens will allow moisture in, quickly leading to further failure.
• Blown Fuses: If the fog light fuse blows repeatedly, it indicates a short circuit in the wiring or a problem within the assembly itself.

Vehicle Fitment and Known Issues

This single fog light assembly design was used across a wide array of Ford, Lincoln, and Mercury vehicles for over a decade. While the part is the same, there are important model-specific details to be aware of.

Ford Models

• 2011-2014 Ford Mustang: This part is specifically for the California Special (GT/CS) trim level. It will not fit standard GT or V6 models, which use a different fog light setup.

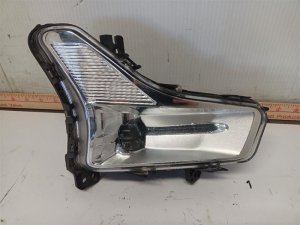

• 2006-2012 Ford Fusion: A very common application. Condensation is a frequent issue as these vehicles age and the housing seals degrade.
• 2008-2009 Ford Taurus & Taurus X: Direct fit for these model years.
• 2007-2010 Ford Edge: Moisture intrusion is a well-documented problem for the first-generation Edge. Check for signs of water damage on any used unit.
• 2009-2019 Ford Flex: Used across all years of Flex production. The replacement process is straightforward, typically accessed through the wheel well lining.

Lincoln & Mercury Models

• 2007-2015 Lincoln MKX: Fits the first generation and the mid-cycle refresh. Like its platform-mate the Ford Edge, it can be prone to moisture issues. On some models, a fuse for the fog lights is located in the interior fuse panel, not under the hood.
🎬 Watch: How to find and replace the Lincoln MKX fog light fuse.
• 2009-2016 Lincoln MKS: Standard fitment.
• 2010-2019 Lincoln MKT: Standard fitment. Electrical issues can sometimes be traced to a shared ground point in the engine bay.
• 2008-2009 Mercury Sable: Direct fit, as this was a rebadged version of the Ford Taurus.
• 2006-2011 Mercury Milan: Direct fit, sharing its platform with the Ford Fusion.

Buying a Used Fog Light Assembly: What to Check

A used OEM fog light is often a better choice than a cheap aftermarket alternative, offering superior lens quality and fitment. However, careful inspection is key.

• Lens Condition: Check for deep scratches, rock chips, and cracks. Minor hazing or yellowing from UV exposure can often be polished out, but a cracked lens means the part is no good.
• Mounting Tabs and Points: Inspect all plastic mounting tabs and screw holes. These are brittle and can easily break during removal from the donor vehicle. A broken tab will result in a loose, vibrating fit.
• Check for Moisture: Look for any signs of water staining, mineral deposits, or a foggy film on the inside of the lens. This indicates the seal has failed, and the unit will likely fail again. The internal chrome reflector should be bright and shiny, not peeling or discolored.
• Electrical Connector: The connector pins should be clean and free of any green or white corrosion. A corroded connector can cause flickering or intermittent operation.
• Aiming Screw: Verify the aiming adjustment screw is present and turns freely. It is typically a Phillips or Torx screw that allows you to adjust the beam height after installation.

Replacement and Installation

Replacing this fog light assembly is generally a DIY-friendly task.

1. Access the Assembly: On most of these vehicles, access is gained by removing a few screws or plastic clips from the fender liner in the front wheel well and peeling it back. On some models, you may need to remove a lower air dam or splash shield. It is rarely necessary to remove the entire front bumper.
2. Disconnect Wiring: Reach behind the bumper and disconnect the single electrical connector from the back of the bulb. There is usually a small locking tab you need to press.
3. Remove Mounting Hardware: The assembly is typically held in place by two or three screws (often 8mm or 10mm) or Torx bolts. Remove these and the old assembly will come out.
4. Install the New Assembly: Fit the new assembly into place and secure it with the mounting hardware. Reconnect the electrical plug.
5. Test and Aim: Before re-installing the fender liner, turn on the fog lights to ensure they work. Once confirmed, park the vehicle on a level surface facing a wall or garage door (about 25 feet away). The top of the fog light beam should be aimed below the center of the fog light itself. Use the adjuster screw to raise or lower the beam as needed.
