2019-2025 Ford Ranger Headlights: Halogen, LED Reflector, and LED Projector Explained

Variant Differences: The Most Important Factor

Before buying a replacement headlight for a 2019-2025 Ford Ranger, you must identify which type your truck is equipped with. The wiring, connectors, and control module requirements are different for each, making them incompatible with one another without extensive modification.

1. Halogen Reflector (Standard on XL, some XLT)

This is the base-level headlight. It uses a traditional halogen bulb (typically a yellowish light) set inside a chrome reflector bowl that scatters the light to form a beam. These are the most affordable units but are also the lowest performing, with many owners complaining about dim output. The bulbs in these assemblies are serviceable.

• Low Beam Bulb: H11
• High Beam Bulb: 9005

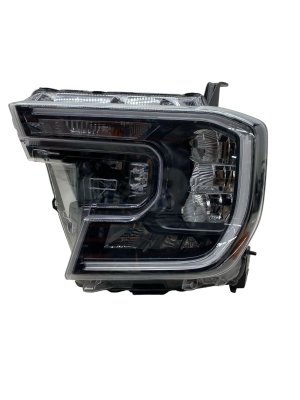

2. LED Reflector (Standard on later XLT, optional upgrade)

This assembly looks similar to the halogen version but uses integrated, non-serviceable LED elements instead of bulbs. The light output is a cleaner, whiter light and is a noticeable improvement over halogen. While it uses a reflector bowl, it's specifically designed for the factory LED light source. Like the halogen unit, it uses separate LEDs for the low and high beams.

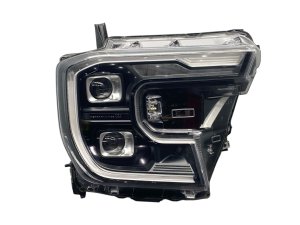

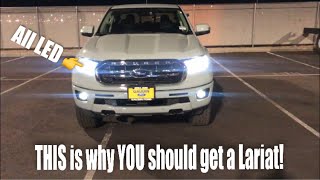

3. LED Projector (Standard on Lariat and Raptor)

This is the premium headlight option. It uses a projector lens (which looks like a glass eyeball) to focus the light from a powerful, integrated LED source. This creates a very sharp, bright, and wide beam pattern with a distinct cutoff line to prevent glare to oncoming drivers. A key difference is that a single projector handles both low and high beams; a mechanical shutter inside the projector moves to change the beam pattern from low to high. This is one of the main reasons it is not plug-and-play with lower-trim trucks.

Symptoms of a Failing Headlight Assembly

• Dim or Flickering Light: On halogen models, this often just means a bulb is burning out. On LED models, flickering or dimming can indicate a failing internal LED driver or a poor electrical connection.
• Moisture or Condensation Inside: While minor fogging that clears up can be normal, visible water droplets or pooling inside the lens means the housing's seal has failed. This can short out electrical components and lead to premature failure of LED modules.
• Individual LEDs Not Working: In the LED Reflector or Projector headlights, a section of the daytime running light (DRL) or a main beam element may go out. Since the LEDs are not serviceable, this requires replacing the whole assembly.
• Intermittent Operation: A headlight that works sometimes, or that comes back on after being tapped, often points to a loose connector or a bad ground wire.
• Hyperflashing Turn Signal: If the turn signal is integrated into the headlight assembly, a failure of the signal's LED can cause the indicator on your dash to blink rapidly.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of early 2026, there are no major recalls issued by the National Highway Traffic Safety Administration (NHTSA) specifically for headlight assembly failure on the 2019-2025 Ford Ranger. Recalls have been issued for other Ford models due to failing LED driver modules, but the Ranger is not included in those campaigns.

The most common owner complaints are not about reliability, but about the poor performance of the standard halogen headlights. This has led to a large market for aftermarket LED bulb upgrades. However, installing LED bulbs into a housing designed for halogens can create significant glare for other drivers if not aimed correctly.

Buying a Used 2019-2025 Ranger Headlight: What to Check

Buying a used OEM headlight is an excellent way to save money, especially when replacing the expensive Lariat LED Projector units. Here’s what to inspect carefully:

1. Verify the Type: This is the most critical step. Match the part to your truck's trim (XL/XLT vs. Lariat) or by comparing it directly to your other working headlight. A Lariat Projector light will not work on an XLT without major modifications.
2. Inspect the Lens: Look for deep scratches, rock chips, and cracks. Check for hazing or yellowing from UV damage. A restoration kit can fix minor hazing, but a clear, undamaged lens is always better.
3. Check All Mounting Tabs: The plastic mounting tabs are brittle and often break when a headlight is removed from a donor vehicle. Carefully inspect every tab for cracks or signs of repair like glue or epoxy. A broken tab can cause the headlight to vibrate or sit improperly.
4. Look for Signs of Moisture: Check the inside corners of the housing for a 'water line' or dried mineral deposits. This is a clear sign the seal has failed in the past and the internal electronics may have been compromised.
5. Examine the Housing: Inspect the black plastic rear housing for any cracks, especially around the mounting points.
6. Connector Integrity: Look at the main electrical connector. Ensure it's not cracked and that the pins inside are straight and free of corrosion.

Cost Comparison

Prices can vary significantly based on headlight type and condition. The LED Projector style is substantially more expensive than the Halogen or LED Reflector styles.

Replacement and Alignment

Replacing the headlight assembly is a feasible DIY project for those with basic tools.

1. Access the Headlight: The front grille must be removed. This involves removing several plastic clips and bolts at the top and bottom.
2. Remove the Assembly: Once the grille is off, the headlight is secured by two 10mm bolts on top and one 10mm bolt on the side. After removing the bolts, the assembly can be pulled forward and the electrical connector unplugged.

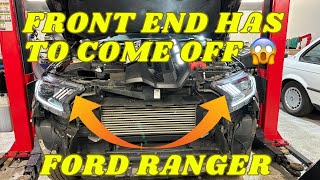

🎬 Watch: This easy DIY walkthrough shows you how to remove the assembly.
3. Installation: The process is the reverse of removal. Plug in the new assembly and test all functions (low beam, high beam, DRL, turn signal) before reinstalling the bolts and grille.

Headlight Aiming

After installing a new headlight, you must check and adjust the aim to ensure proper visibility and avoid blinding other drivers.

• Park the truck on a level surface, 25 feet away from a flat wall.
• Turn on the low beams.
• Locate the vertical adjustment screw on the back of the headlight assembly. It can typically be turned with a Phillips screwdriver or an 8mm socket.
🎬 See how to use an 8mm socket to adjust your beam height.
• Turn the adjuster to raise or lower the beam. The top of the brightest part of the beam pattern on the wall should be at or slightly below the height of the center of the headlight lens itself.
