2024-2026 Hyundai Kona DRL Light Bar: Decoding the Two Incompatible Styles

Understanding the 2024-2026 Kona's Unique Lighting Design

The second-generation Hyundai Kona (2024-2026) uses a split-headlight design. The main headlights, which provide low and high-beam illumination, are housed in pods lower on the front bumper. The part this guide focuses on is the upper horizontal light bar, officially called the "Lamp Assembly-Center Position," which functions as the Daytime Running Light (DRL). This LED bar is a signature design element of the vehicle.

Variant Differences: Seamless vs. Partial Light Bar

The primary difference between the DRL bars lies in their illumination style, which is tied to the vehicle's trim level.

1. Partial (Non-Continuous) DRL Bar

• Description: This is the most common version. On this style, the light does NOT illuminate continuously across the entire center section of the bar. There is a visible dark section in the middle.
• Found On: SE, SEL, and N Line trims.
• Known Part Number: 92209-BE000

2. Seamless Horizon DRL Bar

• Description: This premium version presents as a single, uninterrupted bar of light that illuminates fully from one side to the other.
• Found On: Limited trims and Kona Electric models.
• Known Part Number: 92209-BE100, 92209-BE140

Known Issues, Recalls, and TSBs

As a relatively new model, widespread endemic issues with the DRL bar have not yet been documented. However, owners should be aware of the following vehicle-wide information.

Recalls (Not Headlight-Specific)

The 2024 Hyundai Kona has been subject to several recalls, though none directly involve the lighting assemblies. It's important to ensure these have been addressed on any vehicle you own or are considering purchasing.

• NHTSA Recall 24V308000: An electrical short circuit may occur in the EGR valve assembly, potentially causing a loss of drive power.
• NHTSA Recall 23V901000: 12-Volt battery cables may chafe against a bracket and short circuit during a crash, increasing fire risk. The fix involves installing protective sheathing.
• NHTSA Recall 23V650000: Rear seat belt assemblies may not function properly.

Technical Service Bulletins (TSBs)

No TSBs specifically addressing failures of the DRL light bar have been released. Most early TSBs for the 2024 Kona relate to the infotainment unit, battery diagnostics, or charging issues on EV models.

Symptoms of Failure

Failure of the DRL light bar is typically straightforward to diagnose.

• Complete Failure: The entire light bar does not illuminate when the vehicle is on and in gear.
• Partial Failure: A section of the LED bar is dim, flickering, or completely dead. Since these are integrated LED units, individual "bulbs" cannot be replaced.
• Moisture Intrusion: Condensation or water is visible inside the lens. This can lead to corrosion and failure of the internal circuit board.
• Physical Damage: Cracks, scuffs, or holes in the lens from road debris or impacts are common. A broken lens will eventually allow moisture to enter and cause electrical failure.

Buying a Used DRL Light Bar

Given the high cost of a new OEM unit, a used OEM DRL bar is an excellent value. However, careful inspection is key.

1. Verify the Style: This is the most important step. Confirm whether you need the partial bar (92209-BE000) or the seamless bar (92209-BE100/92209-BE140). Cross-reference the part number from the listing with your needs. Do not purchase a bar just because it "looks right."
2. Inspect the Lens: Look for deep scratches, stress fractures (especially around mounting points), and any signs of hazing or yellowing. Minor surface scuffs may be acceptable, but cracks are not.
3. Check All Mounting Tabs: The bar is secured by several plastic tabs. These are brittle and can easily break during vehicle disassembly. Ensure all tabs are present and intact. A bar with broken tabs will not mount securely, leading to vibration and potential gaps.
4. Examine the Housing: Check the rear plastic housing for any cracks or repairs (e.g., plastic welding, epoxy). A compromised housing can be a sign of a previous impact or improper removal.
5. Look for Moisture Evidence: Check for any dried water lines or mineral deposits on the inside of the lens, which would indicate a past leak. Avoid any unit with signs of moisture intrusion.

Cost of Replacement

The DRL light bar is a high-value component, making used parts an attractive option.

Replacement Process Overview

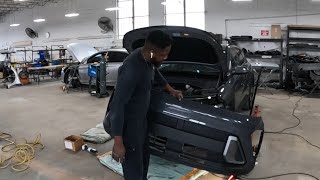

Replacing the DRL light bar is a moderately difficult job that typically requires removing the front bumper cover.

1. Disconnect the negative battery terminal.
2. Remove the plastic clips and screws securing the top of the bumper cover in the engine bay.
3. Remove screws securing the bumper cover to the fenders in each wheel well.
4. Remove clips and screws along the bottom edge of the bumper cover.
5. Carefully pull the bumper cover away from the vehicle, starting at the sides. Disconnect any fog light or sensor wiring harnesses.
6. With the bumper removed, you will have access to the bolts and clips securing the DRL light bar.
7. Unplug the electrical connector from the old DRL bar.
8. Remove the fasteners and swap the old bar for the new one.
9. Installation is the reverse of removal. Before fully reassembling the bumper, reconnect the battery and test the new light to ensure it functions correctly.

No special programming or calibration is required after installing a new DRL light bar, provided the correct part number for the vehicle's trim was used.
