Infiniti QX50 & QX55 Headlight Guide (2019-2024): AFS vs. Standard LED Explained

Variant Differences: Standard LED vs. Adaptive (AFS) Headlights

The most important factor when replacing a headlight on a 2019-2024 QX50 or 2022 QX55 is identifying which of the two available types your vehicle has. The two systems are not interchangeable due to differences in wiring and control modules.

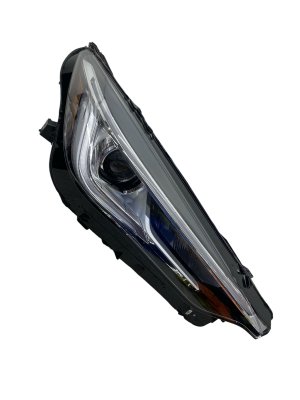

• Standard Full LED Headlights: These are found on lower and mid-range trims (e.g., Pure, Luxe). They provide excellent illumination but are fixed and do not turn with the steering wheel. The primary OEM part number for this version is 26010-5NA0A.
• Cube-design LED Headlights with Adaptive Front-lighting System (AFS): Found on higher trims (e.g., Sensory, Autograph), these premium headlights physically swivel as you turn the steering wheel, directing light into corners for better visibility. They often feature a distinct multi-projector or 'cube' look.

Known Issues & TSBs

Moisture, Condensation, and Water Intrusion (TSB ITB03-051L)

One of the most common owner complaints is finding moisture or fog inside the headlight lens. Infiniti has issued a Technical Service Bulletin (TSB) to address this. According to TSB ITB03-051L, all modern headlight assemblies are vented to the atmosphere to prevent pressure changes from damaging the housing. Because of these vents, it is considered normal for a light layer of fog or fine condensation to appear temporarily under certain weather conditions (e.g., after a car wash or on a cool, humid morning). This normal condensation should clear on its own or when the headlights are turned on for a while.

However, the TSB clarifies that if you see large water droplets, streaks where water has run down the inside of the lens, or a puddle of water collected at the bottom of the housing, the headlight's seal has failed. This is considered a defect and requires the entire assembly to be replaced. This water intrusion is a frequent cause of total LED failure as it shorts out the internal electronics.

Symptoms of a Failing Headlight Assembly

Because these are integrated LED units, failure symptoms can be more complex than a simple burnt-out bulb.

• Complete Failure: The most obvious symptom, where the low beam, high beam, and/or DRL stop working entirely. This often points to internal moisture damage or a failed LED driver module.
• Flickering or Intermittent Operation: Lights may flicker or cut out while driving, which can be caused by a failing internal component or a loose electrical connection.
• Dim or Discolored Output: The light may appear significantly dimmer than it used to, or take on a yellowish hue. This indicates degradation of the LED emitters.
• Partial DRL Failure: Sections of the signature daytime running light may go out, creating an incomplete or patchy look.
🎬 Watch: Overview of the QX50 headlight and exterior light functions.
• AFS Warning Light: On adaptive models, a malfunction in the swiveling mechanism or its sensors will trigger a specific warning light on the dashboard.

Buying a Used Headlight Assembly: A Step-by-Step Inspection Guide

A used OEM headlight is often a great value, providing factory quality and fit at a much lower price than a new unit. However, a thorough inspection is crucial to avoid buying a faulty part.

1. Confirm the Type: First and foremost, verify if it's a standard or AFS headlight. Check the part number and look for the distinct 'cube' design of the AFS projectors.
2. Inspect the Lens: Look for deep scratches, rock chips, and signs of hazing or UV damage. Minor surface scratches can be polished, but a heavily hazed or cracked lens means the part is not worth buying.
3. Check for Water Intrusion: This is critical. Hold the light up and tilt it around. Look for any 'water lines' or mineral deposit stains on the inside of the chrome or black plastic housings. This is a tell-tale sign that the light has had a failed seal in the past and is likely to have electrical problems.
4. Examine ALL Mounting Tabs: Carefully inspect every plastic mounting tab around the perimeter of the housing. These are frequently broken during minor accidents or even during removal. A headlight with a broken main tab will never fit securely and will vibrate when driving.
5. Verify Included Modules: The headlight assembly has one or more electronic control modules (LED drivers) bolted to it. Some used parts are sold as a bare housing, requiring you to transfer your old modules. Always clarify with the seller if the modules are included and have been tested.
6. Look for Hidden Cracks: Check the black plastic housing on the back for any cracks, especially around the seams and mounting points. Even a small crack can become a path for water to enter.

Recalls and Service Campaigns

As of early 2026, there are no active recalls specifically for the failure of the headlight assemblies on the 2019-2024 QX50 or 2022 QX55. However, these vehicles have been subject to other recalls, including for airbag inflators and engine components, so it is always wise to check your vehicle's VIN with the NHTSA or an Infiniti dealer for any outstanding safety campaigns.

Replacement & Installation

Replacement Overview

Replacing the headlight assembly is a moderately difficult job that typically requires removing the front bumper cover. 🎬 Watch: Step-by-step guide to removing the front bumper cover. A Reddit user described the process as taking about two hours and involving the removal of numerous plastic clips and 10mm bolts in the wheel wells and under the hood to detach the bumper. Once the bumper is loose, the headlight is secured by four main bolts to the vehicle's frame. While DIY is possible for an experienced mechanic, the risk of breaking clips on the bumper cover is high.

Post-Installation: Aiming Your Headlights

After installing a replacement headlight, you must have it aimed correctly. Improperly aimed headlights can drastically reduce your visibility or blind oncoming drivers, creating a serious safety hazard. The general procedure is as follows:

1. Park the vehicle on a perfectly level surface, 25 feet away from a flat, vertical wall.
2. Measure the distance from the ground to the center of your headlight projector.
3. On the wall, mark a horizontal line at that same height.
4. The top of the low beam's cutoff line should be 2-4 inches below your marked line on the wall.
5. Use the adjustment screws on the back of the headlight assembly to raise or lower the beam until it meets this specification.
