2000-2002 Lincoln LS Headlight Guide: Fixing Moisture, Aiming, and Replacement

Halogen vs. HID: A Critical Compatibility Warning

The single most important factor when replacing a headlight assembly on a 2000-2002 Lincoln LS is understanding the lighting technology. These models were exclusively equipped from the factory with Halogen headlights. Later models (2003-2006) offered an optional High-Intensity Discharge (HID) system, also known as Xenon.

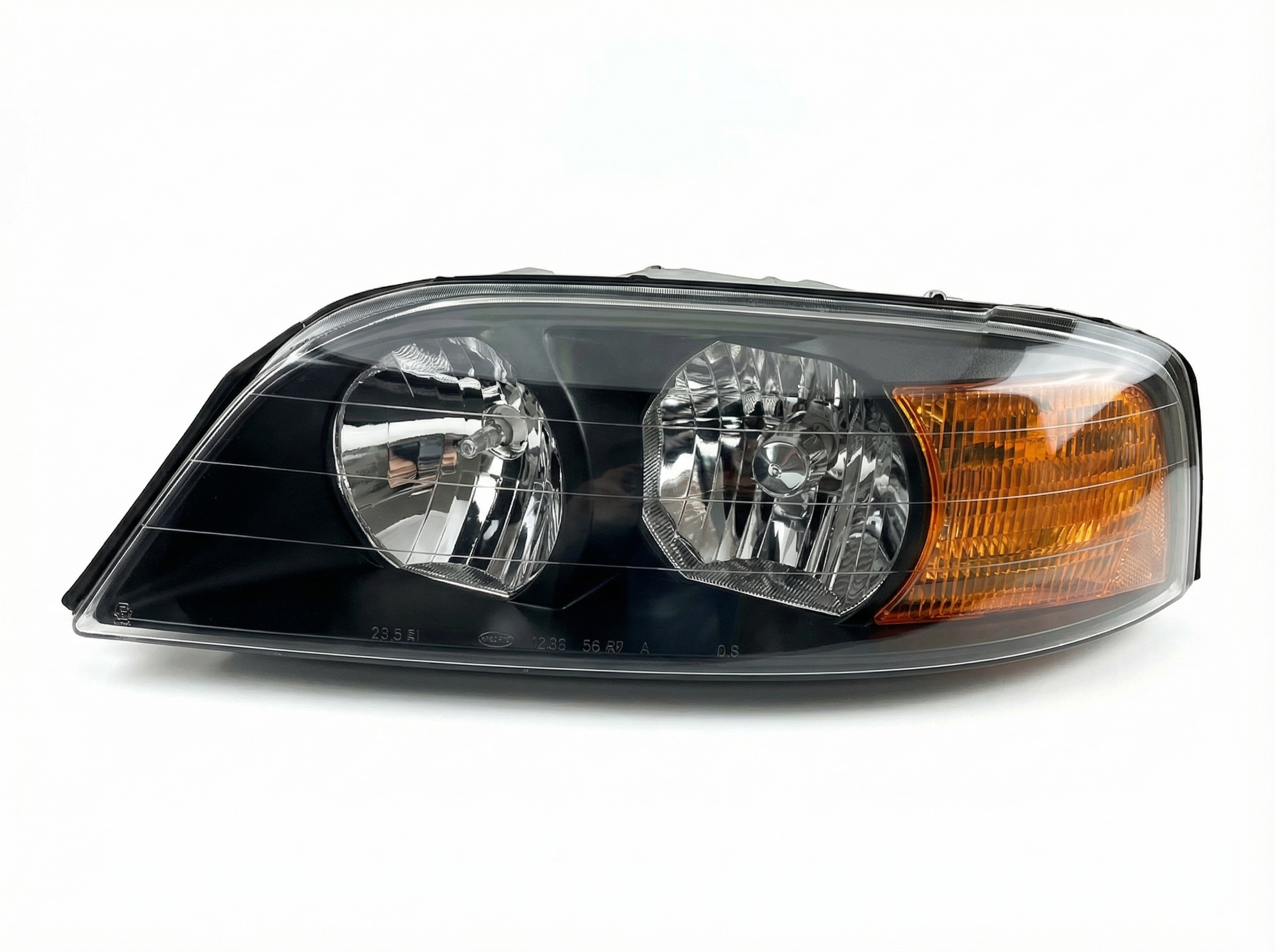

• Halogen Assembly: Uses a reflector bowl to bounce light from a halogen bulb (like a 9006 for the low beam) forward. This is the standard and only type for 2000-2002 models.
• HID/Xenon Assembly: Uses a specific projector lens and requires a ballast and igniter to create a high-voltage spark that ignites xenon gas. These components are not present on a standard 2000-2002 LS.

When purchasing a replacement, especially a used one, ensure you are buying a Halogen assembly specifically for the 2000-2002 model years.

Symptoms of a Failing Headlight Assembly

Headlight issues can range from simple bulb failure to problems with the entire assembly. Here’s what to look for:

• Dim or Flickering Light: This can be a sign of an aging bulb, but it can also point to a corroded electrical connector or a failing alternator not providing enough power.
• Moisture or Condensation Inside the Lens: A very common issue on these vehicles, indicating a failed seal between the lens and the housing. This moisture can cause bulbs to burn out prematurely and corrode electrical contacts.
• Yellowed or Hazy Lens (UV Damage): The outer plastic lens can become cloudy and yellowed over time due to sun exposure. This significantly reduces light output and can be a safety hazard.
• One Headlight Is Out: Often just a burnt-out bulb. However, if a new bulb doesn't fix it, the problem could be the fuse, relay, or wiring harness connector.
• Physical Damage: Cracks in the lens or housing from impacts can allow moisture in. Broken mounting tabs can cause the headlight to vibrate or become misaligned.

Known Issues, Recalls, and Technical Service Bulletins

Common Problem: Moisture and Condensation in the Housing

The most widely reported problem with 2000-2002 Lincoln LS headlights is moisture getting trapped inside. This was so common that Ford issued multiple Technical Service Bulletins (TSBs) for it, including TSB #03-16-2, #16042, and #15512. The issue stems from a faulty butyl rubber seal that is supposed to make the housing airtight. Over time, this seal can degrade, allowing humid air and water to enter.

Owners in forums frequently discuss DIY solutions, such as removing the assembly, using a hair dryer on a low setting to evaporate the moisture, and applying a new layer of silicone or butyl sealant around the seam where the lens meets the black plastic housing. Some even bake the assembly in an oven at a low temperature (around 210°F) to soften the original sealant before pressing it back together for a better seal.

Recalls and Other TSBs

There are no major recalls from the NHTSA for the failure of the headlight assembly itself on 2000-2002 Lincoln LS models.

• A recall was issued in Canada for some 2000 model year vehicles where the Daytime Running Lamps (DRLs) were too bright due to an issue with the Front Electronics Module (FEM), but this did not involve the headlight assembly itself.
• NHTSA recall 20E-025 was for non-compliant aftermarket replacement headlights that may have been sold by dealers, not for the original factory-installed parts.

Buying a Used 2000-2002 Lincoln LS Headlight Assembly

A used OEM (Original Equipment Manufacturer) headlight is often a better choice than a cheap aftermarket part due to superior optics, fit, and durability. However, you must inspect it carefully. Here is a checklist for buying a used assembly:

1. Check All Mounting Tabs: This is critical. There are several plastic tabs that secure the assembly to the car. They are brittle and often break during removal or in minor impacts. Ensure all tabs are intact and have not been repaired with glue or epoxy.
2. Inspect the Lens for Damage: Look for deep scratches, rock chips, and stress cracks. Minor surface hazing or yellowing can often be polished out, but deep crazing (a network of fine cracks) cannot.
3. Look for Signs of Moisture Intrusion: Check the inside of the lens for dried water spots, mineral deposits, or a faint tideline at the bottom. These are clear signs the seal has failed, and the light will likely fog up again unless it is properly resealed.
4. Examine the Rear Housing: Check the black plastic housing for any cracks, especially around the mounting points and where the bulb sockets twist in.

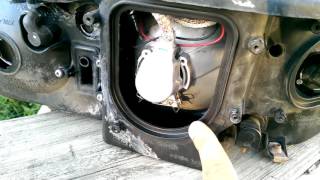

5. Verify Bulb Sockets and Wiring: If the wiring pigtail is included, check it for corrosion, melted plastic, or brittle wires. Ensure the rubber O-rings on the bulb sockets are present and in good condition to prevent moisture from entering through the bulb openings.

Replacement Overview

Replacing the headlight assembly on a 2000-2002 Lincoln LS is a straightforward job that can be done with basic hand tools. It does not require removing the front bumper.

Difficulty: 2/5 (Easy to Moderate)
Estimated Time: 1 - 1.5 hours for both sides

1. Open the hood and remove the plastic radiator sight shield that runs along the top of the grille and headlights. It is held in by several plastic push-pins or turn clips.
2. Once the cover is off, you will have clear access to the bolts securing the headlight assembly. There are typically three 8mm bolts holding each headlight in place.
3. Remove the bolts. The assembly can now be wiggled and pulled forward, out of the vehicle.
4. Disconnect the main electrical harness from the back of the headlight assembly.

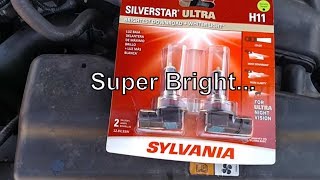

5. Transfer the bulbs from the old assembly to the new one if they are not included, being careful not to touch the glass of the halogen bulbs with your bare hands.
6. Installation is the reverse of removal. Plug in the new assembly to test its function before bolting it fully in place.

Headlight Aiming After Installation

After replacing a headlight assembly, you must aim it correctly to ensure proper visibility and avoid blinding other drivers. You will need a level surface, a wall or garage door, a tape measure, and a few simple tools.

1. Park the car on a level surface, 25 feet away from a flat wall.
2. Measure the height from the ground to the center of your headlight lens.
3. On the wall, make a horizontal line of tape at that same height.
4. Turn on the low beams. The top of the bright, focused part of the beam pattern should be right at or just slightly below the tape line on the wall.
5. Open the hood to access the adjusters on the back of the headlight assembly. Use the Phillips screwdriver for up/down (vertical) adjustment and the 4mm wrench for left/right (horizontal) adjustment to align the beam with your marks on the wall.
🎬 Watch: A step-by-step guide to perfectly aiming your headlights
6. Adjust each headlight one at a time, covering the other with a towel 🎬 See this guide on how to aim and align headlights or piece of cardboard.
