2006-2015 VW Passat Headlight Guide: B6 vs. B7 Generations and AFS Faults

CRITICAL: Identify Your Passat Generation (B6 vs. B7)

The most important factor when replacing a headlight assembly on a 2006-2015 Volkswagen Passat is identifying the correct vehicle generation. The parts are not interchangeable. This range covers two distinct models in North America.

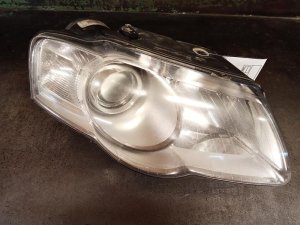

• B6 Generation (2006-2010): 🎬 See this walkthrough for replacing B6 headlights without removing the bumper. This Passat features a more rounded, teardrop-shaped headlight assembly that integrates smoothly with the grille and bumper.

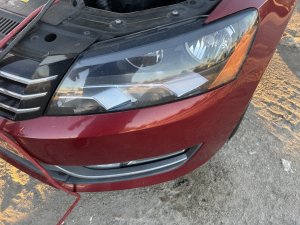

• B7 / NMS Generation (2012-2015): This North American Market (NMS) Passat has a more angular, squared-off headlight design with sharper lines. Note that there was no 2011 model year for the Passat sedan in the US.

Always match your vehicle's year and appearance to the correct generation before purchasing a part. Installing the wrong generation's headlight is not possible without extensive and costly bodywork modifications.

Variant Differences: Halogen vs. Bi-Xenon with AFS

Beyond the generation, Passat headlights came in two main technology types. These systems are not plug-and-play interchangeable, as they use different wiring harnesses and require specific vehicle coding.

Standard Halogen Headlights

Found on most base and mid-trim models, these assemblies use standard H7 halogen bulbs for both the low and high beams. They are simple, reliable, and the least expensive to maintain. The light output is typically a yellowish-white color.

Optional Bi-Xenon (HID) with AFS

Available on higher trims, Bi-Xenon High-Intensity Discharge (HID) headlights offer a much brighter, whiter light output for superior nighttime visibility. These complex assemblies include several components not found in halogen units:

• Xenon Bulb: Creates light by firing an electric arc through xenon gas.
• Ballast (Igniter): A high-voltage power supply required to start and operate the xenon bulb.
• AFS (Adaptive Front-lighting System) Module: This is a small computer, often mounted to the bottom or back of the headlight, that controls the swiveling function. It takes input from the vehicle's steering angle sensor to pivot the headlight projectors left or right, illuminating the road through corners.

Symptoms of a Failing Headlight Assembly

• Dim or Flickering Lights: While often caused by a failing bulb, dimming or flickering can also point to a bad electrical connection, a corroded ground wire, or a failing ballast in Xenon models.
• "AFS Inoperative" or "Fault: adaptive lighting (AFS)" Message: This warning on the instrument cluster is specific to Xenon models and indicates a problem with the adaptive headlight system. The headlights may still work but will not swivel.
• Headlight Works Intermittently: A low beam that goes out when the hood is closed or when driving over bumps can be a sign of a faulty bulb holder, which was the subject of a recall on 2012-2013 models.
• Moisture or Condensation Inside Lens: Fogging or water droplets inside the headlight indicate a failed housing seal. This moisture can quickly destroy expensive electronic components like AFS modules and ballasts.
• Yellowed or Hazy Lens: 🎬 Watch: How to restore faded or yellowed headlight lenses in minutes. The outer plastic lens can become cloudy and yellowed from UV sun damage over time. This significantly reduces light output and can be a safety hazard.
• One Beam Out: If the low beam works but the high beam doesn't (or vice versa), the issue is likely a bulb or internal wiring, not necessarily the entire assembly.

Known Issues, TSBs, and Recalls

Recall: Missing Headlight Aim Cap (NHTSA 19V389000)

This recall affects 2012-2020 Passat models. Vehicles may have been manufactured without a required blocking cap on the headlight's horizontal aim adjuster. This violates Federal Motor Vehicle Safety Standard 108, as it could allow the headlights to be adjusted improperly, reducing visibility and increasing crash risk. Dealers will inspect and install the cap if it is missing.

Recall: Faulty Low Beam Bulb Holder (NHTSA 14V125000)

Affecting some 2012-2013 Passat vehicles, the low beam headlight bulb holder could lose electrical contact, causing the low beam to fail. This could be triggered by vibration, such as from closing the hood. The remedy involves dealers installing an improved bulb fitting and replacing hood bumpers to prevent contact with the assembly.

Common Failure: AFS System Malfunction

The most common issue on Xenon-equipped models is the failure of the Adaptive Front-lighting System. The cause is often simple: a burnt-out H7 static cornering bulb. 🎬 Watch: How to replace the H7 cornering bulb to fix AFS errors. The AFS system will disable itself if one of these bulbs fails. If the bulbs are good, the next most likely cause is a failed AFS control module, frequently due to water damage from a bad housing seal. These modules are side-specific and cannot be swapped from left to right.

Owner Complaint: Poor B7 Xenon Light Output

Some owners of 2012-2015 Passats with factory Bi-Xenon headlights report extremely poor light output, even with new bulbs and ballasts. This is often caused by the reflective coating inside the projector bowl burning or delaminating over time, which prevents the light from being properly focused down the road. In this case, the entire headlight assembly must be replaced.

Replacement, Aiming, and Calibration

Replacing the headlight assembly on a Passat typically requires removing the front bumper cover or at least the front grille to access all mounting bolts.

After installation, aiming is mandatory. Park the car on a level surface 25 feet from a flat wall. The low beam cutoff should be slightly below the height of the center of the headlight bulb. Adjustment screws are typically located on the back of the housing for vertical and horizontal aim.
