2004-2010 BMW 5-Series Headlight Washer Pump: Leaks, Diagnosis, and Replacement

Symptoms of a Failing Headlight Washer Pump

When the headlight washer pump on a 2004-2010 BMW 5-Series (E60/E61 chassis) fails, the symptoms are usually easy to spot. Correctly identifying the issue can save you from replacing the wrong components.

1. No Spray from Headlight Nozzles

The most obvious symptom is a complete lack of spray from the headlight washer jets when you activate the system. You will hear the windshield washers working, but nothing happens with the headlights. The first diagnostic step is to turn the headlights on and have a helper activate the washers while you listen near the front passenger wheel well. If you hear no humming sound from the pump, the motor has likely failed or is not receiving power. If you do hear a hum but see no spray, the system may be clogged or the pump may be too weak to create pressure.

2. Visible Washer Fluid Leaks

A very common failure is a leak from the pump itself or its sealing grommet. If you notice puddles of blue or green fluid under the front passenger side of your car, a leaking washer pump is a prime suspect. Over time, the plastic pump housing can develop cracks, or the rubber grommet that seals it to the reservoir can degrade and leak. This leaking fluid can drip onto the pump's electrical connector, causing corrosion and eventual electrical failure.

3. Weak or Uneven Spray

If the pump motor is worn but has not completely failed, it may produce a weak or inconsistent spray that doesn't effectively clean the headlights. This can also be a symptom of a clogged filter screen, which is integrated into the rubber grommet where the pump pushes into the reservoir. Debris or certain types of washer fluid additives can cause this blockage over time.

Diagnosing the Problem

Before buying parts, a few simple tests can confirm the pump is the problem.

1. Listen for the Pump: With the headlights on, activate the washer system. Listen for a distinct humming sound from the front passenger wheel well area. No sound strongly suggests a dead pump or an electrical issue.
2. Check for Leaks: Fill the washer reservoir and park the car overnight on a clean surface. Check for puddles of washer fluid the next morning. If you see fluid, access the reservoir by removing the fender liner and inspect the pumps and grommets for the source of the leak.
🎬 See how to find and fix common washer pump leaks.
3. Test for Power: If you have a multimeter, you can test the pump's electrical connector. Unplug the connector from the pump and test for approximately 12 volts across the terminals when a helper activates the system. If you have 12 volts but the pump doesn't run, the pump is bad. If you have no voltage, the issue is likely a relay, fuse, or wiring problem.

Buying a Used Headlight Washer Pump

A recycled OEM headlight washer pump can be a smart, cost-effective choice. These are simple electric motors, and a used OEM unit is often built to a higher standard than a cheap, new aftermarket alternative. Here’s what to check before buying.

• Physical Inspection: Examine the plastic housing of the used pump for any hairline cracks, especially around the inlet and outlet ports where stress occurs. Ensure the plastic isn't brittle or discolored.
• Check the Connector: Look closely at the electrical pins inside the connector port. They should be clean and metallic. Avoid any pump with green or white crusty corrosion, as this indicates past moisture damage from a leak and suggests it may fail soon.

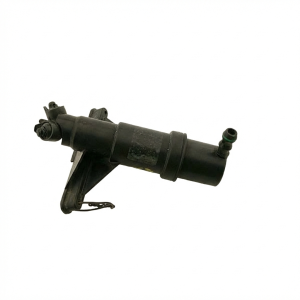

• Verify Part Numbers: The most common OEM part number for the headlight washer pump on the 2004-2010 5-Series is 67128377430. This number is used across many BMW models. While other numbers may exist, confirming this primary number is the safest bet for compatibility.
• Ask for the Grommet: The small rubber grommet that seals the pump to the reservoir is a frequent leak point. It's best practice to always use a new one, but if the used pump comes with its original grommet, it can be helpful for comparison.

Replacement Walkthrough

Replacing the headlight washer pump is a straightforward DIY job for most home mechanics. 🎬 Watch: This step-by-step DIY guide for replacing the washer pump. Accessing the pump is the main challenge.

1. Prepare the Vehicle: Safely jack up the front passenger side of the car and place it on a jack stand. Remove the front passenger-side wheel.
2. Remove the Fender Liner: Using 8mm and 10mm sockets, remove the screws and plastic fasteners holding the front portion of the plastic wheel well liner in place. You only need to pull back the front half to get access; complete removal is not necessary.
3. Locate the Pumps: With the liner pulled back, you will see the washer fluid reservoir. There will be two or three pumps plugged into its side. The headlight washer pump is typically the larger of the pumps.
4. Drain the Fluid: Place a drain pan under the reservoir. When you pull the pump out, all the remaining fluid will drain out.
5. Remove the Old Pump: Disconnect the electrical connector and the fluid hose from the pump. Then, firmly pull the pump straight out of the rubber grommet in the reservoir.
6. Install the New Pump: Replace the old rubber grommet with a new one, pushing it securely into the reservoir. Lubricate the new grommet with a little washer fluid, then press the new pump firmly into place. Reconnect the hose and electrical connector.
7. Test and Reassemble: Before putting the fender liner back on, add some washer fluid and test the system to ensure it works and there are no leaks. Once confirmed, reinstall the fender liner and the wheel.

Known Issues, TSBs, and Recalls

There are no official recalls or Technical Service Bulletins (TSBs) from BMW or the NHTSA specifically for the headlight washer pump on the 2004-2010 5-Series. Most failures are due to the age of the plastic and rubber components. Forum members frequently note that leaks from the sealing grommet are extremely common, and it is highly recommended to replace the grommet anytime a pump is replaced to prevent future leaks.

Cost Comparison

Prices can vary, but this gives a general idea of the cost for the part and installation.
