Lexus LS460 & LS600h Headlight Washer Pump Guide (2007-2012)

Symptoms of a Failing Headlight Washer Pump

A faulty headlight washer pump on your 2007-2012 Lexus LS460 or 2009-2012 Lexus LS600h will typically present one of several distinct symptoms. Because the headlight and windshield washers use separate pumps, it's common for one to fail while the other continues to work perfectly.

1. Headlight Washers Don't Spray (Pump is Silent)

This is the most straightforward failure. When you activate the headlight washers (the headlights must be on), you hear no sound from the pump. No fluid is sprayed. This almost always points to an electrical issue. The cause could be a blown fuse, a problem with the wiring, or a completely seized motor inside the pump.

2. Pump Motor Runs, But No Fluid Sprays

You can hear the distinct humming or whirring sound of the pump motor when you activate the system, but no washer fluid comes out of the nozzles. This indicates the pump is getting power, but there's a blockage or a mechanical failure. Common causes include:

• Clogged Lines or Nozzles: Debris from old washer fluid can clog the hoses or the fine jets in the pop-up nozzles.
• Empty Reservoir: While simple, it's a common oversight. The headlight washers consume a large amount of fluid and may empty the reservoir quickly.
• Internal Pump Failure: The plastic impeller inside the pump can break or separate from the motor's shaft. The motor spins freely, but it can no longer move any fluid.
• Leaking or Disconnected Hose: A crack or disconnection in the hose between the pump and the nozzles will cause the fluid to leak out before it reaches the headlights.

3. Washer Fluid Leaks

If you notice a puddle of blue, purple, or orange fluid under the front passenger side of your vehicle, you may have a leak in the washer system. This is often caused by a cracked washer fluid reservoir or, more commonly, a deteriorated rubber grommet where the pump seals against the reservoir. Over time, the grommet can harden and fail, allowing fluid to seep out.

Diagnosing the Problem: A Quick Walkthrough

1. Check the Fuses: Before assuming the pump is bad, consult your owner's manual for the location of the headlight washer pump fuse and inspect it. This is the easiest and cheapest potential fix.
2. Listen for the Pump: With the engine off but the ignition on, turn your headlights on. Have a helper stand near the front passenger wheel while you activate the headlight washer button. If they hear a humming sound, the pump is receiving power. If it's silent, the pump or its wiring is the likely culprit.

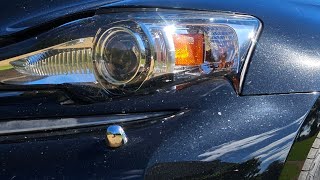

🎬 Watch: This easy fix might save you from buying a pump.
3. Test for Clogs: If the pump runs but nothing sprays, you can disconnect the hose from the pump's outlet and try to blow low-pressure compressed air through it to clear any blockages in the lines or nozzles.

Known Issues, Recalls, and TSBs

While there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for the headlight washer pump on the 2007-2012 LS460 and LS600h, some common issues are reported by owners in forums.

• Broken Nozzle Covers: The small, chrome-plated covers on the pop-up nozzles are notorious for becoming brittle and either falling off or being torn off in automatic car washes. While this is a cosmetic issue, it can expose the nozzle mechanism to dirt and damage.

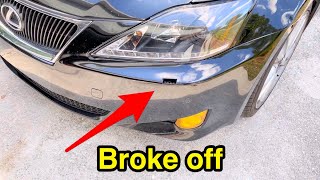

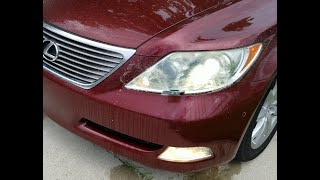

🎬 See this DIY guide for replacing a broken washer cover.
• Internal Impeller Failure: On various Lexus models, the pump motor can continue to function while the internal plastic impeller that moves the fluid disintegrates. This results in a pump that sounds like it's working but doesn't move any fluid.

Buying a Used Headlight Washer Pump

A recycled OEM headlight washer pump is an excellent, budget-friendly alternative to an expensive new part. Because it's a relatively simple component, a tested, low-mileage used pump can provide years of reliable service. Here’s what to look for:

• Verify the Part Number: Ensure the pump is the correct OEM part number, 85280-30040. This part is used across many Toyota and Lexus vehicles, making it widely available.
• Inspect the Housing: Check the plastic casing for any cracks or damage, especially around the inlet and outlet ports.
• Check the Connector: The electrical connector pins should be clean, straight, and free of corrosion.
• Ask About the Grommet: The rubber grommet that seals the pump to the reservoir is a critical part. It's best to use a new one during installation, but check if the used pump comes with its original grommet in good condition.
• Why Used OEM is a Good Choice: Original Equipment Manufacturer (OEM) parts are built to a higher quality standard than many low-cost aftermarket alternatives. A used OEM pump has already proven its durability and is guaranteed to fit and function correctly, unlike some aftermarket parts that may have issues with fitment or electrical compatibility.

Cost of Replacing the Headlight Washer Pump

The cost can vary significantly depending on whether you do the work yourself or take it to a shop. The pump itself is affordable, but the pop-up nozzle assemblies are extremely expensive if they also need replacement.

Installation Guide & Difficulty

Replacing the headlight washer pump is a straightforward DIY project for those comfortable with basic tools.

• Difficulty: 2 out of 5
• Estimated Time: 1 hour
• Tools Needed: Jack and jack stands, lug wrench, socket set, screwdrivers, pliers, bucket.

While the factory service manual may suggest removing the entire front bumper, a much easier method is widely used.

1. Safely jack up the front passenger side of the vehicle and remove the wheel.
2. Remove the plastic clips and screws holding the front portion of the fender liner in place.
3. Peel back the fender liner to expose the washer fluid reservoir. You will see two pumps attached to the bottom; the headlight washer pump is one of them (typically the larger of the two).
4. Place a bucket underneath to catch the washer fluid that will drain from the reservoir.
5. Disconnect the electrical connector and the fluid hose from the old pump.
6. Carefully pry the old pump straight out of the rubber grommet on the reservoir.
7. Install a new rubber grommet, wet it with some washer fluid, and press the new pump firmly into place.
8. Reconnect the hose and electrical connector. Refill the reservoir and test the pump before reinstalling the fender liner and wheel.
