2014-2019 Corvette C7 Hood Hinge Guide: Solving Alignment, Gaps, and Sticking

Symptoms of a Failing Hood Hinge

Failure of the C7 Corvette hood hinge is typically a gradual process related to wear, binding, or damage rather than a sudden break. The symptoms are often related to hood movement and alignment.

• Poor Hood Alignment: This is the most common symptom. You may notice uneven panel gaps between the hood and the fenders, with one side being noticeably wider than the other. The hood might also appear to sit too high or too low at the corners near the windshield.
• Difficulty Opening or Closing: If the hinge pivots are worn or corroded, you may feel resistance, binding, or a grinding sensation when opening or closing the hood. It may require extra effort to move, or it might not close smoothly into the latch.
• Hood Won't Stay Open: The gas struts that are part of the hinge assembly are responsible for holding the hood up. If these struts fail, the hood will slowly sag or refuse to stay open at all. This is a common wear item.
• Squeaking or Popping Noises: Dry or worn pivot points on the hinges will often produce loud squeaking or popping sounds during operation. While lubrication can sometimes quiet this, it can also indicate advanced wear.
• Hood Appears Loose When Closed: After latching the hood, you might be able to lift it slightly at the rear corners. This can be caused by worn hinges or misaligned bumpers and latches, which are all part of the same system.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from General Motors for hood hinge failure on the 2014-2019 C7 Corvette.

It is important not to confuse this with a widely publicized recall for the C8 Corvette (model year 2020 and newer), where the front trunk (frunk) could fly open. That issue was related to software and latch warnings, not the hinge mechanism, and does not apply to the C7 generation.

The most significant "known issue" reported by owners and body shops is the difficulty of achieving perfect hood alignment. The C7 has very tight body tolerances, and even a small amount of hinge wear or improper adjustment can create noticeable panel gaps. Full side-to-side adjustment often requires removing the front bumper to access the main hinge mounting bolts.

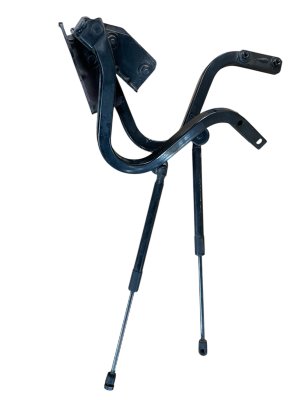

Buying a Used Hood Hinge

Since new aftermarket hinges for the C7 Corvette are not readily available, a quality used OEM hinge is often the best choice for repairs. For a precision-fit vehicle like a Corvette, using an OEM part guarantees the correct geometry. Here’s what to look for when buying used:

• Inspect for Bends and Cracks: This is the most critical check. Carefully examine the entire hinge assembly for any signs of bending, stress marks, or cracks, especially around the pivot points and mounting holes. A hinge that has been in a front-end collision, even a minor one, may be bent and will make proper hood alignment impossible.
• Check for Pivot Point Wear: Work the hinge back and forth. It should move smoothly without excessive play or binding. Worn-out rivets or pivot points will feel loose and lead to poor alignment.
• Assume the Gas Struts are Worn: The gas support struts are a wear item. When buying a used hinge assembly, it's wise to budget for a new pair of struts. Even if the used ones still have some pressure, they likely won't last as long as new ones.
• Verify Part Numbers: Ensure you are getting the correct side. The driver's (left) and passenger's (right) side hinges are different. The current part numbers are 23432066 for the left side and 23432067 for the right side.

Cost Comparison for C7 Corvette Hood Hinges

The following table provides estimated costs for replacing a single hood hinge assembly. Prices can vary by region and supplier.

Replacement Difficulty and Procedure

Replacing the hood hinges on a C7 Corvette is a moderately difficult job that requires patience and precision, especially during the alignment phase.

• Difficulty Rating: 4 out of 5
• Estimated Time: 2-4 hours
• DIY Feasible: Yes, but requires a helper.

The primary challenge is not the unbolting and bolting of parts, but the meticulous process of aligning the large carbon fiber hood to achieve perfect panel gaps. This is a two-person job to prevent scratching the paint or damaging the hood.

Basic Replacement Steps:

1. Mark Everything: Before loosening any bolts, use a water-soluble marker or masking tape to outline the current position of the hinges on both the hood and the vehicle body. This provides a crucial starting point for alignment later.
2. Support the Hood: With a helper, securely support the hood in its open position. Do not rely on the gas struts, especially if they are weak.
3. Remove the Old Hinge: Unbolt the gas strut from the hinge. Then, unbolt the hinge from the hood and finally from the vehicle's frame.
4. Install the New Hinge: Loosely bolt the new hinge to the body and the hood.
5. Perform Initial Alignment: Using your marks as a guide, adjust the hood until it is roughly in place. Snug the bolts but do not fully tighten them yet.
6. Fine-Tune Alignment: This is the most time-consuming step. Carefully close the hood (with your helper) to check gaps. Adjust the hinge-to-body and hinge-to-hood bolts as needed for front-to-back and height adjustments. For major side-to-side adjustments, the front bumper cover may need to be removed to access the hinge-to-frame rail bolts.
7. Final Tightening: Once the alignment is perfect, carefully tighten all bolts to their final torque specifications. Re-attach the gas struts.
