2016-2024 Titan & Titan XD Horn: Diagnosing the Dual-Tone System
This guide covers common horn failures, diagnosis, and replacement for the 2016-2024 Nissan Titan and Titan XD, focusing on their unique high and low-note horn setup.

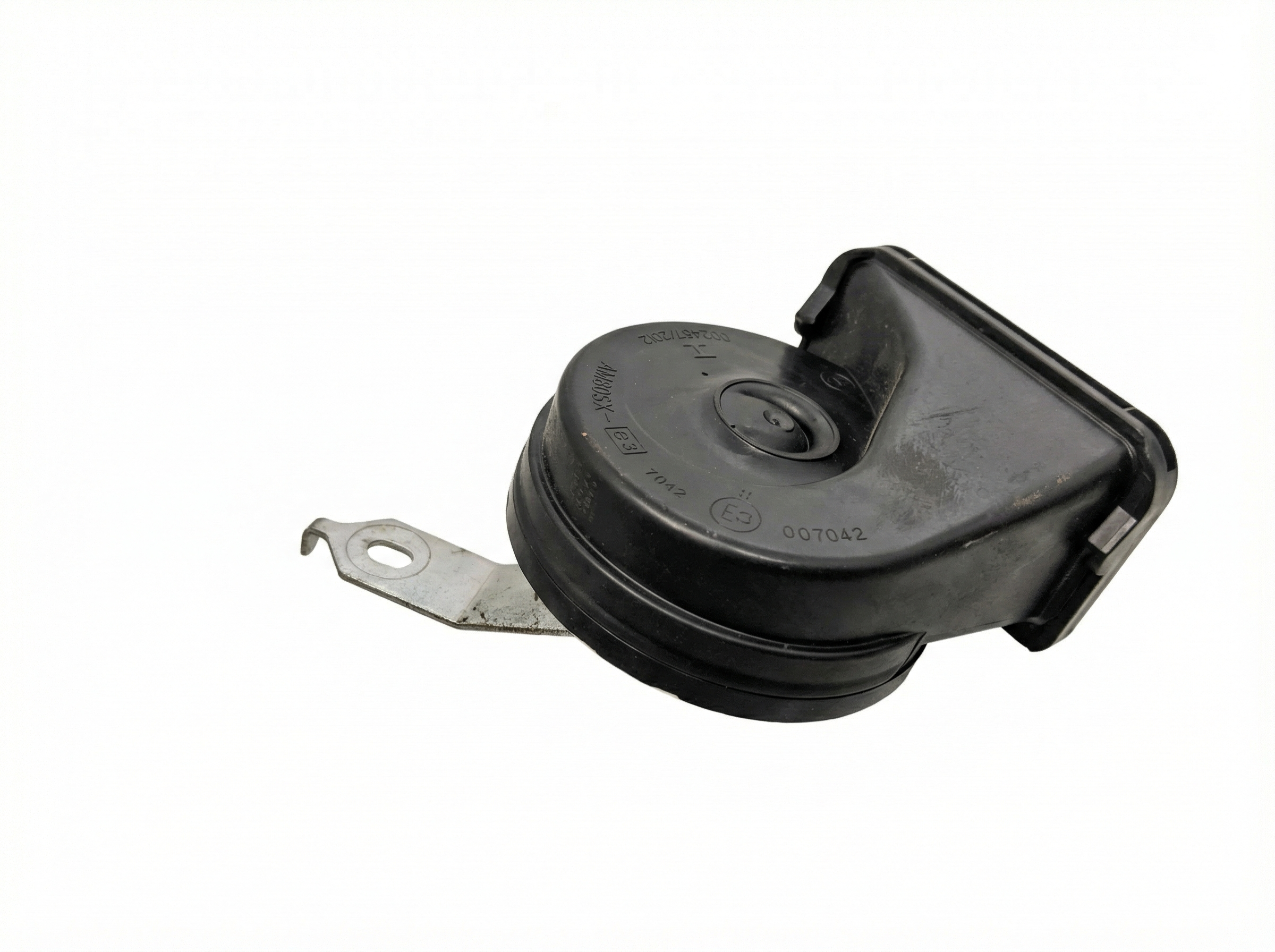

- The 2016-2024 Titan uses a dual-tone system with separate high-note (25610-EZ00A) and low-note (25620-EZ00A) horns. A weak sound usually means one has failed.
- Always check the fuse and relay first before replacing the horn units, as these are common and inexpensive failure points.
- If the horn fails and the airbag light comes on, the problem is almost certainly a failed clock spring in the steering column, which is a critical safety repair.
- When buying a used horn, verify the part number to ensure you get the correct high or low tone to match the remaining horn.
Symptoms of Horn Failure
A problem with your Titan's horn can show up in several ways. While the most obvious sign is a completely silent horn, other symptoms can point to specific failures within the system.
- Horn is silent or works intermittently: This is the most common failure. It can be caused by a blown fuse, a bad relay, a faulty horn switch in the steering wheel (clock spring), or a failed horn unit. Intermittent function often points to a failing relay or a loose connection.
- Weak or raspy sound: If your horn sounds noticeably quieter or has a raspy, sick tone, it often means one of the two horns (high or low note) has failed. The remaining horn is still working, but the sound is weak because it's missing the other half of its tone. This can also be caused by corrosion on the electrical connectors or a poor ground connection.
- Change in horn pitch: A sudden change in the sound, like a shift in pitch, can be an early sign that one of the horn units is beginning to fail.
- Clicking sound from the fuse box: If you hear a click from the fuse box area under the hood when you press the horn button, but the horn doesn't sound, it's a strong indication that the horn relay is working, but the problem lies with the horn units themselves or the wiring to them.
- Horn works with key fob but not steering wheel: If you can make the horn sound by locking your truck with the key fob, but it doesn't work from the steering wheel, the problem is likely in the steering column. This points to a faulty horn switch or, more commonly, a failed clock spring.
- Airbag light is on: A failed clock spring not only affects the horn but also the airbag system. If your horn isn't working and your airbag warning light is on, a bad clock spring is the most likely culprit. 🎬 See how to replace a faulty clock spring and airbag.
Known Issues, TSBs, and Recalls
While there are no specific recalls for horn failure on the 2016-2024 Nissan Titan or Titan XD, a Technical Service Bulletin (TSB) provides an interesting insight. In July 2020, Nissan issued bulletin NTB20-047 for Titan models built after January 31, 2020. This document states that the high horn assembly and horn relay are no longer installed from the factory. These components were intentionally removed, meaning later models may only have a single low-note horn. This is important to know when diagnosing issues or sourcing parts for 2020 and newer trucks.
Searches on the National Highway Traffic Safety Administration (NHTSA) database did not reveal any recalls specifically for the horn system on these model years.
Pro Tip: Before assuming the horn itself is bad, always check the fuse first. It's the easiest and cheapest part of the system to inspect. The fuse location is detailed in your owner's manual and on the fuse box cover, typically located in the engine bay.
Diagnosing a Faulty Horn
Troubleshooting the horn system is a straightforward process of elimination. You'll want to start with the simplest checks first.
🎬 Watch: A step-by-step guide to diagnosing and repairing your horn.- Check the Fuse: Locate the horn fuse in the engine compartment fuse box. Visually inspect it to see if the metal strip inside is broken. If it is, replace it with a new fuse of the same amperage. If the new fuse blows immediately, you have a short circuit that needs further investigation.
- Check the Relay: With the help of an assistant, listen for a 'click' from the fuse box when the horn button is pressed. If you hear a click, the relay is likely working. You can also swap the horn relay with an identical relay from another system in the same fuse box (like the fog lights) to see if the horn starts working.
- Test for Power at the Horn: If the fuse and relay are good, the next step is to check for power at the horn itself. The horns are located at the front of the vehicle, typically behind the grille. Disconnect the electrical connector from one of the horns. Use a test light or multimeter to check for 12-volt power at the connector while an assistant presses the horn button. If you have power, but the horn doesn't sound, the horn unit itself has failed.
- Test the Horn Directly: To be certain a horn unit is bad, you can test it directly. Disconnect it from the vehicle and use jumper wires to connect it to a 12V battery. Connect the negative terminal to the horn's mounting bracket (ground) and briefly touch the positive wire to the horn's electrical terminal. If it doesn't make a sound, it's confirmed dead.
Buying a Used Horn
Purchasing a used OEM horn is a cost-effective way to restore your truck's sound. Since horns are generally durable parts, a used unit from a reputable recycler is often a reliable choice. Here’s what to look for:

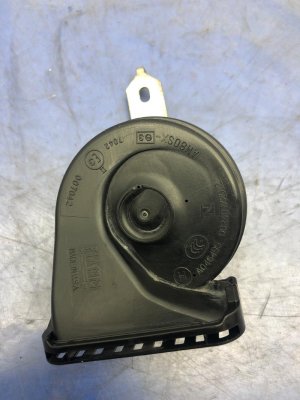

- Identify the Correct Tone: The 2016-2024 Titan and Titan XD use two different horns: a high note (Part No. 25610-EZ00A) and a low note (Part No. 25620-EZ00A). If only one of your horns has failed, you need to identify which one it is to ensure the sound matches. The part numbers are usually stamped on the horn body. If you are replacing both, you can buy them as a pair.
- Physical Inspection: Check the plastic housing for any cracks or damage. Inspect the metal mounting bracket for heavy rust or breakage. Most importantly, look at the electrical connector pins. They should be clean, straight, and free of green or white corrosion, which can cause a poor connection.
- Verify Compatibility: Ensure the part came from a 2016-2024 Nissan Titan or Titan XD. While horns from other Nissan models might look similar, their mounting brackets or electrical connectors could be different.
- Why Used OEM is a Good Choice: A used original equipment (OEM) horn is designed to produce the exact tone and volume as the factory part. This ensures that if you're only replacing one, the sound will match the remaining original horn. Cheaper aftermarket horns may have a different pitch, resulting in an odd-sounding horn when paired with an OEM unit.
Warning: When buying a single used horn, be aware that it will be either a high or low note. If the listing doesn't specify which tone it is, you risk buying one that sounds different from your vehicle's remaining original horn. It will function correctly, but the sound will be altered.
Replacement Difficulty: 2/5
Replacing the horns on a Nissan Titan is a relatively simple job that most DIY mechanics can handle. Accessing the horns is the main challenge.
- Estimated Time: 0.5 - 1 hour
- Tools Needed: Ratchet and socket set (8mm or 10mm), flat-blade screwdriver.
- Procedure: The horns are mounted behind the front grille. On some models, you may need to remove a few plastic clips or bolts holding the top of the grille to gain enough space to reach the horns. Each horn is typically held by a single bolt. Simply unbolt the old horn, disconnect the electrical connector (which has a red locking tab you must pull back first), and install the new one. 🎬 Watch this walkthrough for replacing the horn assembly.
Cost Comparison
Horn replacement costs can vary significantly depending on the source of the part.
| Part Source | Estimated Cost |
|---|---|
| New OEM (Dealer) | $40 - $60 (High Note), $150 - $235 (Low Note) |
| New Aftermarket | $20 - $50 per horn |
| Used OEM | $25 - $50 per horn |
| Shop Labor | $70 - $102 |
Frequently Asked Questions (FAQ)
Do I need to replace both horns at the same time?
No, you only need to replace the horn that has failed. However, if one has failed due to age, the other may not be far behind. If you want to ensure a perfectly matched tone and save on potential future labor, replacing them as a pair is a good idea.
Why is the low-note horn so much more expensive than the high-note horn?
The significant price difference for new OEM parts is due to Nissan's parts pricing and supply chain strategy. There is no functional or manufacturing complexity that justifies the large gap. This makes finding a used OEM low-note horn an especially good value.
My horn doesn't work and my airbag light is on. Is it a big problem?
Yes, this combination of symptoms almost always points to a failed clock spring in the steering column. The clock spring is a coiled wire that maintains electrical connections for the horn, airbag, and steering wheel controls while the wheel turns. This is a critical safety repair that should be addressed immediately, as the airbag may not deploy in a crash.
Can I install a louder aftermarket horn?
Yes, many owners choose to install louder aftermarket air horns or train horns. These kits typically require their own relay, compressor, and wiring, and are a more involved installation. Be sure to check local regulations regarding horn volume and type.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25610-EZ00A (High Note) 25620-EZ00A (Low Note)
12-volt system. Dual-tone (high and low note) configuration. Note: Models built after Jan 31, 2020 may have only the low-note horn from the factory.
