2008-2009 Ford Taurus X Climate Control: Solving Blank Screens & Fan Faults
This guide covers diagnosing and replacing the automatic climate control module, including how to buy a reliable used unit and avoid common compatibility mistakes.
- Compatibility is critical: This unit is ONLY for models with Automatic Climate Control ('AUTO' button) and heated seats. It will not work with manual A/C systems.
- The most common failure symptom is a blank or flickering display, often accompanied by a fan that is stuck on high.
- Replacement is an easy DIY job, typically taking less than 30 minutes with only a trim tool and a 7mm socket.
- Clicking from the dash is usually a bad blend door actuator, not the control module itself, though the two problems can be related.
Symptoms of a Failing HVAC Control Module
When the HVAC control module in a 2008-2009 Ford Taurus X begins to fail, it can cause a range of frustrating issues. Because it's an electronic component, symptoms can be intermittent at first. Here are the most common signs that your control unit may be faulty:
🎬 Watch: Common symptoms of a failing climate control module- Blank or Flickering Display: The most reported issue is the digital display going completely blank or flickering randomly. Often, the system may continue to operate based on its last setting, but you will have no way to see or change it.
- Unresponsive Buttons: Buttons for temperature, fan speed, mode, or heated seats may stop responding entirely or only work sporadically.
- Fan Speed Issues: The blower fan may be stuck on one speed (often high), or it may not turn on at all, even though the display appears to be working.

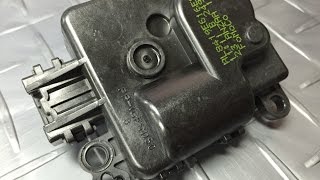

- Incorrect Temperature Output: You might set the temperature to cold, but only get hot air, or vice-versa. This can happen if the module fails to send the correct signal to the blend door actuators. 🎬 Learn how to diagnose and fix air door actuator issues
- Heated Seats Not Working: Since the heated seat controls are integrated into this specific unit, a failure can prevent the heated seats from turning on or off.
Pro Tip: Clicking or tapping noises from behind the dashboard are a very common issue on these vehicles. However, this sound is usually caused by a failed blend door actuator, not the control module itself. While a faulty control module can cause an actuator to fail or act erratically, the actuator is often the primary point of failure. If your main complaint is a clicking noise, investigate the blend door actuators first.
🎬 See this video to identify that dashboard clicking noiseKnown Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Ford for the HVAC control module itself on the 2008-2009 Taurus X. The only major recall for these model years concerns a driver-side frontal airbag, which is unrelated to the climate control system.
However, the failure of these control units is a well-documented issue among owners in online forums. The most common problem is an internal electronic failure leading to a blank screen, which points to a component failure on the unit's circuit board.
Important Compatibility Warning: This buyer's guide is specifically for the Automatic Climate Control unit with integrated Heated Front Seats. It will not work in a vehicle that was originally equipped with manual A/C controls (dials without an 'AUTO' setting) or one that did not come with heated seats from the factory. The wiring and programming are different.
Buying a Used HVAC Control: What to Look For
Purchasing a used OEM HVAC control is often the most cost-effective solution. New aftermarket units can have issues with button feel, incorrect backlighting color, and questionable long-term reliability. A tested, recycled OEM unit provides guaranteed fitment and original functionality.
- Verify Compatibility: Before you buy, look at the seller's photos and compare the button layout to your original unit. Ensure it has the 'AUTO' button for automatic climate control and the heated seat icons. Do not purchase a manual control unit for an automatic system, or vice-versa.
- Check Part Numbers: The most reliable way to ensure compatibility is to match the part number. Known OEM part numbers for this unit include 8F93-18C612-HA, 8F93-18C612-HB, and 8F93-18C612-HC. The final letters (HA, HB, HC) typically represent minor revisions, and these are generally interchangeable. The Ford service part number that replaces all previous versions is 8F9Z-19980-D.
- Inspect for Physical Damage: Check for deep scratches on the display screen, cracks in the plastic housing, and broken mounting tabs. Pay close attention to the electrical connector ports on the back; ensure there are no bent, corroded, or missing pins.
- Ask About Testing: Reputable sellers of used parts will often test electronic modules before listing them for sale. Ask if the unit has been powered on and if its display and buttons were confirmed to be functional.
Cost of Replacement
The cost to replace a 2008-2009 Ford Taurus X HVAC control module can vary significantly based on the part source.
| Part Source | Estimated Cost |
|---|---|
| New OEM (Dealer) | $400 - $550 |
| New Aftermarket (Dorman 599-229, etc.) | $200 - $275 |
| Used OEM (Recycled) | $50 - $150 |
| Shop Labor | $60 - $130 |
DIY Replacement Guide (Difficulty: 1/5)
Replacing the HVAC control module is a very straightforward job that most DIYers can complete in under 30 minutes with basic tools.
- Estimated Time: 15-25 minutes
- Tools Needed: Plastic trim removal tool, 7mm socket or nut driver.
Step-by-Step Instructions:
- Pry Off the Trim: Using a plastic trim removal tool to avoid scratching the dashboard, carefully pry around the edges of the large trim piece that surrounds the radio and the HVAC control unit. It is held in by clips and will pop off.
- Unscrew the Module: You will now see four 7mm screws holding the HVAC control module in place. Remove these four screws.
- Disconnect the Wiring: Gently pull the module out from the dash. There will be one or two electrical connectors plugged into the back. Press the release tab on each connector and pull it straight out.
- Install the New Unit: Plug the electrical connectors into the back of the replacement module. Slide it back into the dash and secure it with the four 7mm screws.
- Test and Reassemble: Turn the ignition on to test the new unit. Verify that the display lights up, the fan speed changes, the temperature adjusts, and the heated seats turn on. Once confirmed, snap the large trim piece back into place.
Pro Tip: Some Ford vehicles require an HVAC module calibration after replacement, which can sometimes be done by pulling a specific fuse for a minute. For this specific model, it is not typically required. The new unit should work immediately upon installation. However, if you experience any strange behavior, disconnecting the car's battery for 10-15 minutes can force a system reset.
Frequently Asked Questions (FAQ)
Do I need to program a replacement HVAC control module?
No, for a 2008-2009 Ford Taurus X, a replacement HVAC control module does not typically require any special programming. It is a plug-and-play component, provided you have purchased a compatible unit.
My screen is blank but the fan is stuck on high. Is this the control module?
This is a classic symptom of a failed HVAC control module. The module has likely failed internally, causing the display to go dark and the blower motor to default to its highest setting as a fail-safe. Replacing the control module should resolve this issue.
Can I upgrade from a manual A/C control to an automatic one?
No, this is not a simple swap. The automatic climate control system uses additional sensors (like a sunload sensor and in-cabin temperature sensor) and different wiring harnesses that are not present in a vehicle with manual A/C. You must replace your control unit with one that matches the system your car was built with.
What's the difference between part numbers ending in HA, HB, and HC?
These letters at the end of the base part number (8F93-18C612) indicate minor engineering revisions or updates made by Ford during production. In most cases, they are fully interchangeable with one another without any issues. The primary concern is matching the base number and ensuring the unit is for automatic climate control with heated seats.

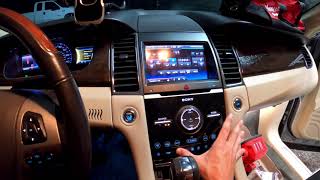

Helpful Videos
Technical Specifications
OEM Part Numbers: 8F9318C612HA 8F9318C612HB 8F9318C612HC 8F9Z19980D
For vehicles with Automatic Dual-Zone Climate Control and Heated Front Seats.
