2000-2003 Lexus ES300 HVAC Control: A Guide to Failures, Fixes, and Replacement

Symptoms of a Failing HVAC Control Unit

A failing HVAC control module in a 2000-2003 Lexus ES300 can cause a range of frustrating issues. Because it's an electronic component, symptoms can be intermittent at first and worsen over time. Here are the most common signs that your control unit is the source of the problem:

• Blank or Dim LCD Screen: This is the most prevalent failure for this specific part. The digital display that shows temperature, fan speed, and mode may go completely dark, flicker, or become too dim to read. This is often due to the failure of internal electronic components on the unit's circuit board.
• Unresponsive Buttons or Knobs: You might find that pressing buttons for the fan, mode, or temperature yields no result. The controls may work sometimes and not others, indicating an internal fault.

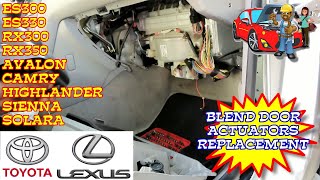

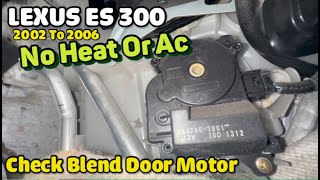

• Incorrect Temperature Output: The system may blow only hot air regardless of the temperature setting, or only cold air. This can happen if the module fails to send the correct signal to the blend door actuators, which are responsible for mixing air from the heater core and A/C evaporator.
• Air Blows from the Wrong Vents: If you select the dash vents but air only comes out of the floor or defrost vents, the control unit may not be commanding the mode door actuators correctly.
• Fan Speed Issues: The blower fan may be stuck on one speed (often high or low) or may not turn on at all, even though the blower motor itself is functional.

Known Issues, TSBs, and Recalls

For the 2000-2003 model years, the Lexus ES300 has proven to be a very reliable vehicle. As of early 2026, there are no specific recalls issued by the National Highway Traffic Safety Administration (NHTSA) for the HVAC control unit itself. However, it's always wise to check for any open recalls on your vehicle, such as the widespread Takata airbag recall which affected many Lexus models from this era. You can check your VIN for free on the NHTSA website.

The most widely reported non-recall issue is the failure of the LCD screen and button backlighting, which is typically caused by aging electronic components or burnt-out incandescent bulbs within the unit.

Buying a Used 2000-2003 ES300 HVAC Control

Purchasing a used OEM climate control unit is often the most cost-effective and reliable solution. New OEM units can be prohibitively expensive or discontinued, and aftermarket quality can be inconsistent. Here’s what to look for:

1. Verify Compatibility: The Heated Seat Warning

This is the single most important check. The HVAC control units for models with heated seats are different from those without. They are not interchangeable. Installing the wrong one will result in non-functioning controls or other errors.

• How to Check: Look at your current unit. If your car has factory heated seats, the control buttons for them will be integrated directly into the HVAC control panel. The replacement unit MUST have these same buttons. If your car does not have heated seats, the replacement unit must NOT have these buttons.

2. Match Part Numbers

The surest way to guarantee compatibility is to match the OEM part number. You may need to remove your existing unit to see the sticker on the housing. Known part numbers for this vehicle include:

• 55900-33320
• 55900-33430
• 5590233190
• 5590233420
• 55900-33690 (For models WITH heated seats)

3. Physical Inspection

When buying a used unit, inspect it carefully:

• LCD Screen: Look for any dark spots, cracks, or signs of 'bleeding' when off.
• Buttons: Press each button. They should have a solid, tactile click and not feel mushy or stuck.
• Connectors: Ensure the electrical connector ports on the back are clean and free of corrosion or bent pins.
• Casing: Check for cracks or broken mounting tabs, which could indicate it was removed improperly.

Cost Comparison

Prices can vary based on condition and availability. Here is a general cost breakdown:

Replacement Guide (DIY Difficulty: 2/5)

Replacing the HVAC control unit on a 2000-2003 ES300 is a straightforward job that most DIYers can complete in under an hour with basic tools.

1. Disconnect the Battery: Before working on any electronic components, disconnect the negative terminal of your car's battery.

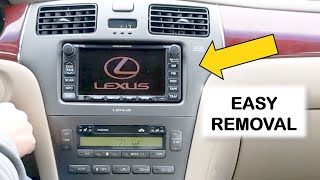

2. Remove Trim: The HVAC control is typically integrated with the radio in a single large bezel. Use a plastic trim removal tool to gently pry around the edges of the center stack trim, which includes the vents and the entire radio/climate assembly. It is held in by clips.
3. Unscrew the Unit: Once the trim is loose, you will see the screws (usually 10mm bolts) holding the radio and climate control bracket to the dashboard. Remove these screws.
4. Disconnect Wiring: Carefully pull the assembly forward and unplug the electrical connectors from the back of the HVAC control unit. There are typically a few different plugs, each with a release tab that must be pressed.
5. Install the New Unit: Installation is the reverse of removal. 🎬 Watch this step-by-step guide to replacing your radio and heater controls. Plug in the new unit, screw the assembly back into the dash, snap the trim back into place, and reconnect the battery.
6. Test Operation: Start the car and test all functions of the new control unit—fan speed, temperature, mode, A/C, and defrost—to ensure it is working correctly. No special programming is required.
