2001-2006 Lexus LS430 Climate Control: Fixing Screen, Button, and A/C Issues

Common Symptoms of a Failing LS430 HVAC Control Unit

When the climate control module in a 2001-2006 Lexus LS430 begins to fail, it typically presents several distinct electronic symptoms. While a lack of cold air can have many causes, issues with the control interface itself often point directly to the unit.

• Flickering or Blank Information Screen: The most widely reported issue is the small rectangular LCD screen above the main navigation display becoming dim, flickering, or going out completely. This screen displays the clock, outside air temperature, and individual temperature settings.
• Unresponsive or Sticking Buttons: The temperature up/down buttons for the passenger or driver may become faulty. You might press the button once, only for it to get "stuck" electronically and run the temperature all the way to the maximum hot or cold setting. In advanced stages of failure, all buttons on the unit may stop responding.
• Total Unit Failure: The entire module may die, leaving you with no climate control functions at all—no fan, no A/C, and no display. Sometimes, disconnecting the car's battery for several minutes can reset the system and temporarily restore function, but a persistent failure indicates a bad unit.

Diagnosing the Problem: Control Unit vs. HVAC Servo Motors

Before spending money on a replacement control unit, it's critical to determine if the problem lies with the controller itself or with the HVAC servo motors. Servo motors are a common failure point and can mimic some climate control issues.

Symptoms of Bad Servo Motors:

• A persistent clicking or tapping sound coming from behind the dashboard.
• Air blows from the wrong vents (e.g., stuck on defrost or floor vents).
• Incorrect temperature on one side of the car, even when the controls seem to work.
• Uneven airflow between vents.

How to Run the On-Board Diagnostic Test

The LS430 has a built-in diagnostic function that can help identify faulty servos. This should be your first step in any diagnosis.

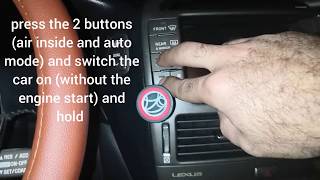

1. Turn the ignition switch to the 'ON' position.
2. Simultaneously press and hold the "AUTO" and the "Recirc/Fresh" (the button with the car and arrow icon) buttons on the climate control panel.
3. The system will run a self-test. Any stored trouble codes will be displayed on the small LCD screen. 🎬 Watch: How to run the diagnostic test and read error codes. A code of "00" means no faults were found. Other codes (like 33 or 43, which can indicate servo issues on similar Lexus models) point to specific problems within the system that should be investigated before replacing the main control unit.

Buying a Used 2001-2006 LS430 HVAC Control: A Buyer's Guide

Given that a new OEM control unit can cost over $2,000, a used OEM unit is the most practical and economical choice for most owners. However, careful selection is key to avoiding problems.

Crucial: Verifying Compatibility

The single most important factor when buying a used unit is ensuring it matches your car's factory options. The LS430 was available with or without rear air conditioning and with or without an air purifier. These options use different control units.

To ensure compatibility:

1. Match the Part Number: Before ordering, remove your original unit to identify the exact OEM part number printed on its label. Common part numbers include 55900-50360, 55901-50010, and 55902-50220. Only purchase a used unit with the identical part number.
2. Check the Seller's Vehicle Information: Reputable sellers will list the VIN and options of the donor car. Confirm it matches your own vehicle's configuration.

What to Inspect on a Used Unit

• Screen Condition: Closely examine photos of the LCD screen. Look for any signs of cracking, dark spots, or delamination of the polarizing film.
• Button Condition: Check for excessive wear on the button graphics. While cosmetic, it can indicate heavy use.
• Warranty and Return Policy: Only buy from sellers who offer a warranty (30-90 days is common) and a clear return policy. This protects you if you receive a dead-on-arrival unit.

Cost Comparison: New vs. Used LS430 Climate Control

The cost difference between new and used is significant, making a recycled OEM part an excellent value.

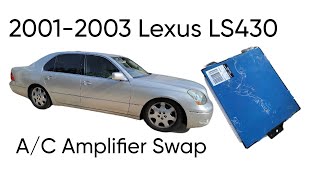

Replacing the HVAC Control Unit (DIY Guide)

Replacing the HVAC control unit is a straightforward job that most DIY mechanics can complete in about an hour. The unit is located behind the glove box assembly.

1. Disconnect the Battery: Before starting any work on vehicle electronics, disconnect the negative battery terminal.
2. Remove the Glove Box: Open the glove box and remove the screws securing it to the dashboard. You will also need to remove the lower trim panel beneath the glove box.
3. Access the Control Unit: With the glove box removed, you will see the HVAC control unit (often called the A/C Amplifier). You may need to move or unplug adjacent computer modules to gain clear access.
4. Remove the Old Unit: The control unit is held in place by a few screws (typically 10mm or Phillips head). Remove the screws and carefully disconnect the electrical connectors.
5. Install the New Unit: Installation is the reverse of removal. Secure the replacement unit, reconnect the electrical plugs, and reassemble the glove box and trim.
6. Reconnect Battery and Test: Reconnect the battery and turn the ignition on. Test all functions of the climate control system to ensure the replacement unit is working correctly.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for the HVAC control unit on the 2001-2006 LS430. Recalls found for Lexus vehicles relate to airbag inflators or HVAC software on much newer models.
