2014-2016 Mazda 3 HVAC Control: Dual-Zone Failure vs. The Common 'No Heat' Fix
This guide will help you determine if your climate control problem is the electronic dual-zone module or the much simpler mechanical link failure that often causes a 'no heat' issue.
- Crucially, distinguish between the dual-zone automatic system and the manual A/C system. The most common 'no heat' issue is a simple mechanical link failure on manual A/C models, not a fault with this electronic module.
- This specific part (BHP5-61-190F and its variants) is ONLY for vehicles with dual-zone automatic climate control.
- When buying used, ensure the part has 'DUAL' and 'AUTO' buttons and match the core part number BHP5-61-190. The final letter (A-F) indicates the revision, with later letters being newer.
- Replacement does not typically require dealer reprogramming and is a manageable DIY job for those comfortable removing interior trim panels.
Is It Your Control Module or Something Else?
Before you replace the expensive electronic HVAC control module, it's critical to understand a very common issue with 2014-2016 Mazda 3 models that is often misdiagnosed. Many owners experience a sudden loss of heat or an inability to change the air temperature, but this is frequently caused by a simple mechanical failure, not the electronic control unit.
Important: The most common 'no heat' problem affects Mazda 3s with manual, single-zone A/C. It involves a small plastic and metal linkage behind the glove box that pops out of place. The dual-zone automatic climate control unit this article focuses on uses different components and does not have this specific mechanical link issue. First, confirm which system your car has.
How to Tell Which System You Have:
- Dual-Zone Automatic Control: Your control panel will have a 'DUAL' button, an 'AUTO' button, and two separate temperature knobs with digital displays. This is the system that uses the electronic module (Part BHP5-61-190F).

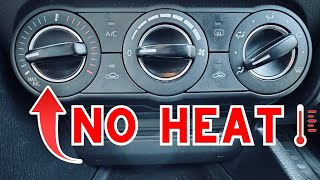

- Manual Control: Your panel has three simple knobs for fan speed, temperature (with a blue-to-red gradient), and vent position, with no 'DUAL' or 'AUTO' buttons. If you have this system and can't change the temperature, your problem is almost certainly the mechanical mix link (Part BHS2-61-A20A). This is a 🎬 Watch: How to fix the manual A/C temperature mix link cheap part and a relatively easy DIY fix that involves accessing the area behind the glove compartment.
Symptoms of a Failing Dual-Zone HVAC Control Module
If you have confirmed you have the dual-zone automatic system, a failure of the control module itself will present with electronic symptoms. You are less likely to experience a simple 'no heat' issue and more likely to see one of the following:
- Unresponsive Buttons or Knobs: Pressing buttons (like 'A/C', 'DUAL', or mode selectors) does nothing, or the knobs don't register when turned.
- Inconsistent or Incorrect Temperatures: The system struggles to maintain the set temperature, blows hot air on one side and cold on the other regardless of settings, or doesn't cool properly.
- Fan Speed Issues: The blower fan may be stuck on one speed, not work at all, or change speeds randomly.
- Blank Display or No Lights: The entire control panel is dark and unresponsive. This can sometimes happen after a battery jump-start or be caused by a blown fuse.
- Incorrect Air Distribution: Air comes out of the wrong vents (e.g., floor vents when dash vents are selected).
Pro Tip: Before replacing the module, always check the simple things first. Inspect the fuses related to the A/C and climate control system in both the interior and under-hood fuse boxes. Also, check for any loose electrical connectors behind the unit if you can access it.
Known Issues, TSBs, and Recalls
Searches of the NHTSA database and technical forums show no specific recalls for the dual-zone HVAC control module on the 2014-2016 Mazda 3.
- TSB for Manual A/C: As mentioned, Mazda issued Technical Service Bulletin TSB 07-003/16 for the manual A/C system's temperature control link detaching. This does not apply to the dual-zone automatic system.
- Software Updates: Some owners with automatic systems have reported that erratic temperature control was fixed by a dealer-performed software update for the car's control modules (sometimes called a DASH ESU and PCM UPDATE). If your unit is functional but behaving strangely, this could be a potential fix before replacing hardware.
Buying a Used 2014-2016 Mazda 3 HVAC Control
Buying a used OEM control module is a great way to save a significant amount of money, as new units are very expensive. Since reliable aftermarket alternatives for the dual-zone unit are not readily available, a used OEM part is often the best option.
What to Inspect:
- Verify the Part Number: The most important step is to match the part to your vehicle. The primary part number is BHP5-61-190. The letter at the end (A, B, C, D, E, F) indicates a revision. All are interchangeable, but it's always best to get the newest revision possible (e.g., 'F' is newer than 'B').
- Confirm Dual-Zone Functionality: Double-check that the unit you are buying has the 'DUAL' and 'AUTO' buttons. Sellers often mislabel parts, so a visual confirmation is key.
- Check Button and Knob Condition: Look for excessive wear on the buttons and graphics, which might indicate very high mileage or rough use. Ensure the knobs turn smoothly with a solid clicking feel.
- Inspect Connectors: Check the electrical connector ports on the back of the unit. Look for any signs of corrosion (green or white powder), bent pins, or melted plastic. A clean connector is a good sign.
Cost of Replacement
Replacing the HVAC control module can have a wide range of costs depending on the part source.
| Part Source | Estimated Cost |
|---|---|
| New OEM (Dealer) | $500 - $750 |
| New Aftermarket | Not Widely Available |
| Used OEM (Recycled) | $45 - $120 |
| Shop Labor Cost | $100 - $225 (1.0-1.5 hours) |
Installation Guide & Difficulty
Replacing the dual-zone HVAC control module is a moderately difficult task that a patient DIYer can accomplish in about an hour.
- Difficulty: 3 out of 5
- Estimated Time: 1-1.5 hours
- Tools Needed: Phillips head screwdriver, plastic trim removal tools.

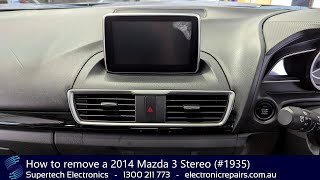

The general steps involve removing the center console trim around the shifter, followed by the main radio/infotainment unit, 🎬 See this walkthrough for removing the stereo and dash trim which then exposes the HVAC control module for removal. The module is typically held in by a few screws and has two main electrical connectors on the back.
Caution: Be very careful when removing plastic trim pieces to avoid breaking clips. Using proper trim removal tools is highly recommended over using a flathead screwdriver.
Frequently Asked Questions (FAQ)
Do I need to reprogram a used HVAC control module?
There is no definitive evidence that a replacement module requires programming. In most cases, it appears to be a plug-and-play installation. However, in rare instances of erratic behavior, a general vehicle software update from a Mazda dealer might be necessary to ensure all modules are communicating correctly.
Can I use a manual A/C control unit in my car with dual-zone auto climate?
No. The systems are fundamentally different. The manual system uses mechanical cables to control the blend doors, while the automatic system uses electronic actuators. The wiring and operation are completely incompatible.
My A/C button light flashes or the fan only works sometimes. Is this the control module?
It could be, but these symptoms are also classic signs of a failing blower motor or blower motor resistor. The resistor (or on auto systems, a blower motor control module) is what controls the fan's speed. If it fails, you can lose certain speeds or the fan may work intermittently. This is a separate part from the main 🎬 Watch: How to replace the blower motor assembly control unit in the dash.
Why is my car blowing cold air when I turn the heat on?
If you have a manual A/C system, the most likely cause is the temperature mix link has disconnected behind the glove box. If you have a dual-zone automatic system, the cause is more likely a failed temperature blend door actuator or a fault within the control module itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: BHP5-61-190F BHP561190A BHP561190B BHP561190C BHP561190D BHP561190E
For vehicles with Automatic Temperature Control (ATC) and Dual Zone Control.
