2012-2016 Nissan GT-R HVAC Control: Fixing Erratic Knobs and Replacement Guide
This guide covers the common symptoms, DIY fixes, and replacement costs for the 2012-2016 Nissan GT-R's unique HVAC and radio control unit.
- The most common failure is erratic knob behavior, which can often be fixed by cleaning the internal contacts with electronics cleaner.
- A new OEM replacement unit is extremely expensive (over $2,300), making a quality used OEM part the best value by far.
- Replacement is simple and DIY-friendly, requiring only basic tools and about an hour of time.
- This part is plug-and-play and does not require any special reprogramming after installation.
Symptoms of a Failing GT-R HVAC Control Unit
When the HVAC control unit in a 2012-2016 GT-R begins to fail, the symptoms are often more annoying than catastrophic, but they can significantly detract from the driving experience. Because this panel controls both climate and audio functions, you may notice issues with either system.
- Erratic or Unresponsive Control Knobs: This is the most widely reported issue. When you turn the volume or temperature knob, the function may lag, jump unpredictably, or even adjust in the opposite direction. For example, turning the volume up one click might cause it to jump up by five, or turning it down might make it go up.
- Buttons Not Responding: The push-buttons for functions like 'AUTO', 'DUAL', 'MODE', or the defroster may become intermittent or stop working entirely.
- Complete Panel Failure: In some cases, the entire control panel can go dark and become unresponsive. This can be caused by an internal electronic failure, a loose electrical connector on the back of the unit, or a corroded ground wire.

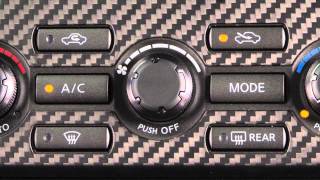

- Incorrect Climate Control Behavior: The system may fail to maintain the set temperature, blow air from the wrong vents, or the A/C might not engage, even if the rest of the A/C system 🎬 Watch this overview of how the GT-R climate system operates. (compressor, refrigerant) is fine.
Known Issues: The Dirty Knob Contact Problem
The most common cause for the erratic knob behavior is not a complete failure of the unit, but rather dirt and oxidation building up on the internal rotary encoder contacts. Over time, this contamination disrupts the signal, leading to the unpredictable adjustments. Fortunately, this can often be fixed without replacing the entire unit.
Pro Tip: Before buying a replacement, try cleaning the internal contacts. This involves removing the unit from the dash, carefully disassembling it to access the circuit board, and spraying the rotary mechanisms 🎬 Watch this guide on cleaning and repairing your control knobs. for the knobs with an electronics-safe contact cleaner. Several owner-made videos online demonstrate this process, which can restore full function for a fraction of the cost of a new part.
Buying a Used 2012-2016 GT-R HVAC Control
Given that a new OEM control unit costs over $2,000, a used OEM part is the most practical and popular choice for replacement. Aftermarket versions of this specific, complex part are not readily available. Here’s what to look for when buying a used unit.
Physical Inspection Checklist:
- Inspect the Carbon Fiber Trim: The carbon fiber faceplate is the first thing you see. Check photos carefully for any cracks, deep scratches, or signs of the clear coat delaminating or yellowing.
- Check the Knobs and Buttons: Ensure all knobs and buttons are present and appear physically intact. Ask the seller to confirm that each button provides a positive 'click' when pressed and isn't stuck.
- Examine the Rear Connectors: Look at the electrical connector ports on the back of the unit. The pins should be straight and free of any green or white corrosion. Damaged connectors are a major red flag.
- Verify the Part Number: The most common OEM part number for this generation is 25391JF33A. While other numbers may exist, matching this one is the safest way to ensure full compatibility.
Warning: Be wary of units with significant cosmetic damage. While it might function electronically, the prominent location in the GT-R's interior means scratches and blemishes will be highly visible and detract from the car's value.
Cost Comparison
The cost difference between new and used is significant, making a recycled OEM part an excellent value.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $2,300 - $2,900 |
| New Aftermarket | Not Available |
| Used OEM | $400 - $600 |
| Shop Labor | $150 - $250 |
Replacement Overview
Replacing the HVAC control unit is a straightforward job that most DIY mechanics can complete in under an hour.
- Difficulty: 2 out of 5
- Estimated Time: 0.5 - 1 hour
- Tools Needed: Phillips screwdriver, plastic trim removal tools.
The basic steps involve carefully prying off the two long trim pieces on either side of the center console stack. Once removed, they reveal two Phillips head screws that secure the HVAC control unit to the dash. After removing the screws, the unit can be pulled forward, allowing you to disconnect the electrical harnesses from the back. Installation is the reverse of removal.
🎬 See a step-by-step walkthrough of the center console removal process.Frequently Asked Questions (FAQ)
Do I need to reprogram the car after installing a replacement HVAC control?
No, this part is typically plug-and-play. No special programming or calibration is required after installation. The vehicle should recognize the new control unit immediately.
Is the carbon fiber trim piece available separately?
No, the carbon fiber trim is an integrated part of the control unit assembly. If your trim is cracked or damaged, you will need to replace the entire unit.
My A/C is blowing warm. Is the control unit always the problem?
Not necessarily. While a faulty control unit can prevent the A/C from turning on, warm air is more commonly caused by a refrigerant leak, a bad A/C compressor, or a faulty pressure sensor. It's important to have the entire A/C system checked to diagnose the root cause correctly.
Why are the radio knobs on the climate control panel?
Nissan integrated these controls to centralize the most frequently used functions (volume, tuning, temperature, fan) into one ergonomic panel, reducing clutter and allowing the driver to make adjustments without looking away from the road. This design choice, however, means a simple audio knob failure requires replacing the entire climate control module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25391JF33A
Integrated HVAC and audio controls with carbon fiber trim finish.
